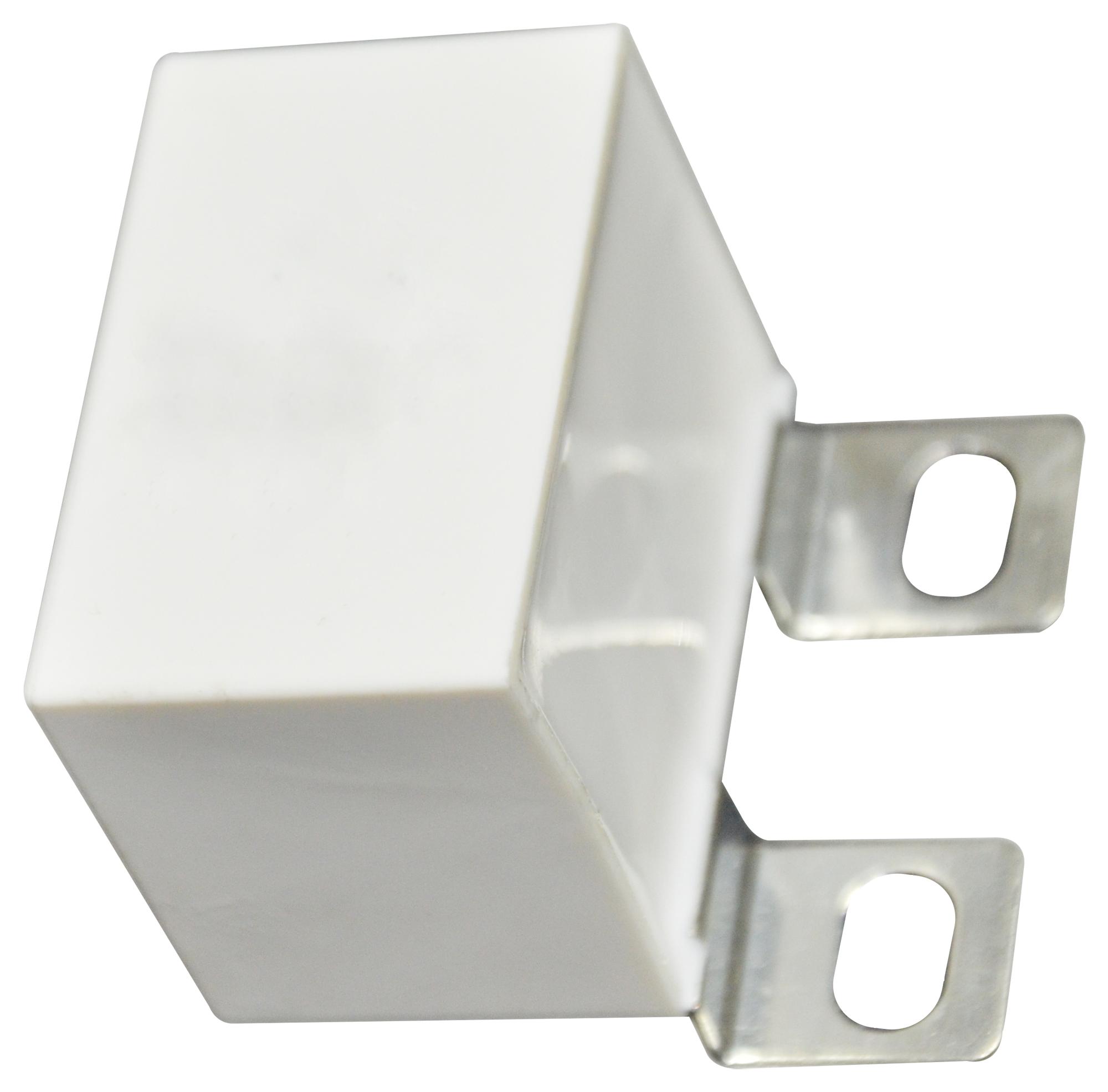

MULTICOMP PRO MPAPB1K2P82J0M6 Snubber Capacitor
The snubber capacitors are designed for use in high voltage and high frequency circuits, specifically for IGBT protection. These capacitors feature a rated voltage of 1.2kV and capacitance values from 0.47uF to 4.7uF, with a tolerance of ±5%. They operate efficiently at temperatures from -40°C to +85°C, offering low dissipation factor and high insulation resistance, ensuring reliable performance in demanding electrical environments. The screw mount design facilitates easy installation in various industrial applications, providing effective snubbing to suppress voltage transients and improve circuit stability.
MULTICOMP PRO MPAPB1K2P82J0M6 Snubber Capacitor Specifications:
- Reference Standard: GB/T17702 (IEC 61071)
- Climatic Category: 1 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Rated Voltage: 1200V DC
- Capacitance Range: 0.47uF to 4.7uF
- Capacitance Tolerance: ±5% (J)
- Voltage Proof: 1.6Un (10s)
- Dissipation Factor: 0.0005 (1kHz, 20°C)
- Insulation Resistance: 2,100,000 MΩ, Cn<0.33uF; 30,000s, Cn>0.33uF
- Expected Lifetime: 210,000 hours @ Un, operating temperature 70°C
- Dimensions: 65mm x 85mm
- Physical: Screw mount, axial design
- Peak ESR (Typical): 77 mΩ at 10kHz, 40 mΩ at 100kHz
- Material: Aluminum case, metallized polypropylene dielectric
- Certifications: IEC 61071, GB/T17702
Buy the Innovative Snubber Capacitors 1.2kV – Reliable IGBT Protection for Industrial Applications
Secure your high voltage and high frequency circuit solutions with our reliable snubber capacitors designed for IGBT protection. Featuring 1.2kV operating voltage, capacitance options from 0.47uF to 4.7uF, and a sturdy screw mount, these capacitors deliver low loss, high insulation resistance, and extended lifespan. Perfect for industrial environments, they improve circuit stability and transient suppression. Easily order online today to boost your electrical system’s reliability, ensuring safety and efficiency in challenging operational conditions.
Order your AVNET SeriesMPAPB1K2P82JOM6 snubber capacitor today and enhance the robustness of your high voltage circuits with dependable performance.
