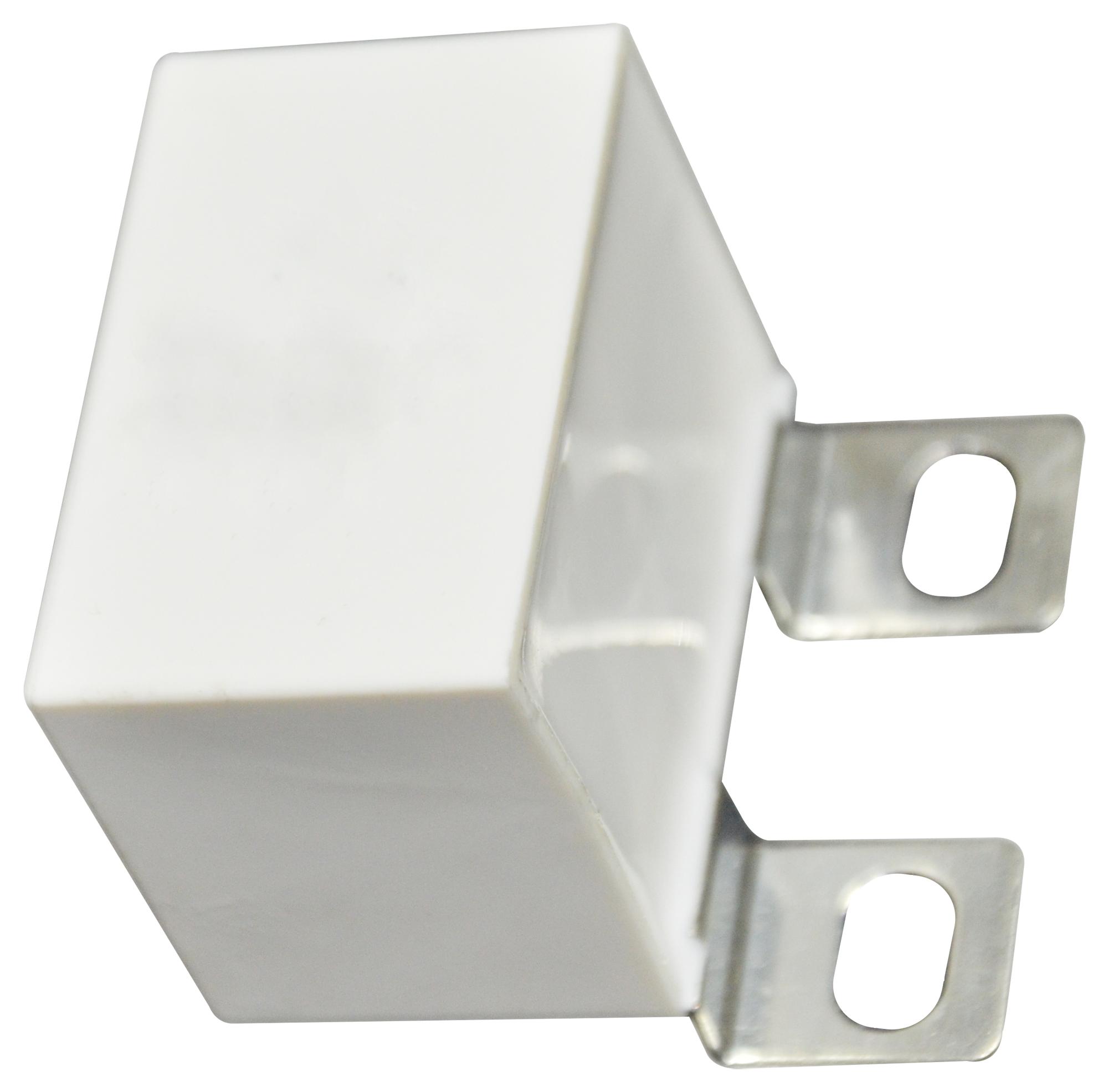

MULTICOMP PRO MPAPB1K2W10J0M6 Snubber Capacitor
The snubber capacitor series is designed for high voltage and high frequency circuits, featuring low loss, minimal temperature rise, and excellent flame-resistant properties. These capacitors are rated at 1200V DC, with capacitance options from 0.47uF to 4.7uF, and are built for reliable performance in industrial electronics, especially in IGBT snubber applications. With robust insulation resistance, high temperature tolerance, and compliance with IEC standards, they are ideal for protecting power modules and ensuring circuit stability.
MULTICOMP PRO MPAPB1K2W10J0M6 Snubber Capacitor Specifications:
- Reference Standard: GB/T17702 (IEC 61071)
- Climatic Category 1 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Rated Voltage: 1200V DC
- Capacitance Range: 0.47uF to 4.7uF
- Capacitance Tolerance: ±5% (J)
- Voltage Proof: 1.6Un (10s)
- Dissipation Factor: ≤0.0005 (1kHz, 20°C)
- Insulation Resistance: ≥100000MΩ, Cn < 0.33uF (20°C, 100V DC, 1min); ≥30000MΩ, Cn > 0.33uF
- Expected Lifetime: 100000 hours @ Un, Os = 70°C
- Dimensions: 65x85 mm
- Peak ESR (Typical): 77 mΩ at 10kHz, 40 mΩ at 100kHz
- Voltage Rating: 1200V DC, Capacitance: 0.47uF to 4.7uF
- Design: Screw Mount, Flame resistant, High frequency suitability
Buy the Innovative Capacitors MPAPB1K2W10JOM6 – Reliable Snubber Capacitors for Industrial Applications
Order the MPAPB1K2W10JOM6 snubber capacitor online today and benefit from fast shipping, dependable performance, and superior protection for your IGBT circuits. Designed for high voltage reliability, these capacitors feature a 1200V DC rating with options up to 4.7uF capacitance, ensuring optimal circuit protection and longevity. Perfect for industrial power modules, they meet international standards, resist high temperatures, and provide low loss operation. Purchase now to upgrade your power electronics with trusted quality and quick online service.
Buy MPAPB1K2W10JOM6 snubber capacitor now and enhance your power electronics with proven durability and high voltage stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPB1K2W10J0M6?
You can click on the BUY or RFQ button to purchase MPAPB1K2W10J0M6 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPB1K2W10J0M6?
You can download the MPAPB1K2W10J0M6 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPB1K2W10J0M6?
MULTICOMP PRO
