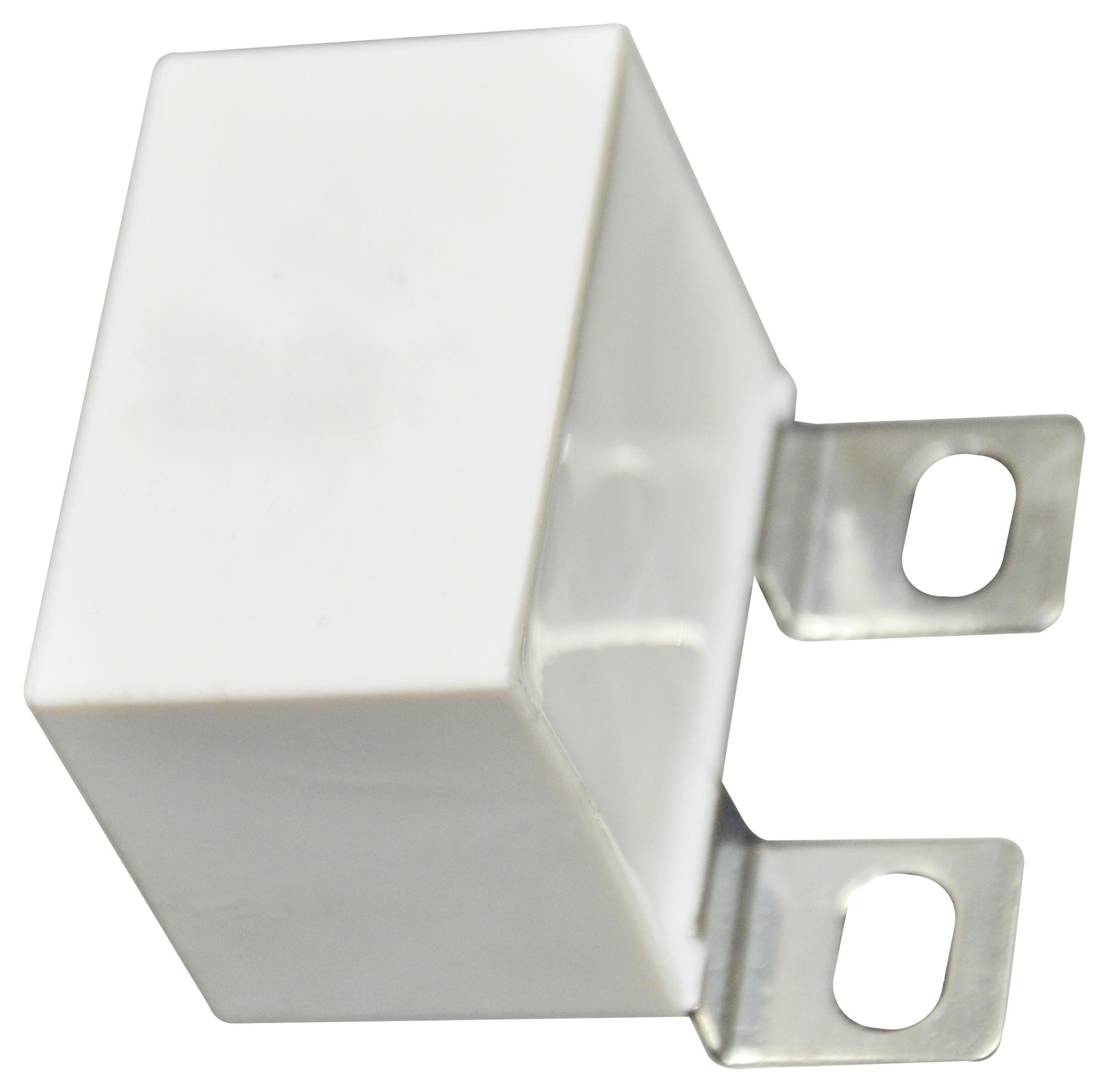

MULTICOMP PRO MPAPB1K2W15J0M6 Snubber Capacitor
This snubber capacitor from the MPAPB series is designed for high voltage and high frequency circuits, offering low loss, minimal temperature rise, and flame-resistant features. Rated at 1.2kV DC with capacitance options from 0.47μF to 4.7μF, it is suitable for protecting IGBT devices and power electronic components. Its screw mount design ensures easy installation in industrial and electronic applications, with a climatic category of 40/85/56 and an expected lifetime exceeding 100,000 hours at 70°C, making it reliable for demanding environments.
MULTICOMP PRO MPAPB1K2W15J0M6 Snubber Capacitor Specifications:
- Reference Standard: GB/T17702 (IEC 61071)
- Climatic Category: 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Rated Voltage: 1200V DC
- Capacitance Range: 0.47μF to 4.7μF
- Capacitance Tolerance: ±5%
- Voltage Proof: 1.6Un for 10 seconds
- Dissipation Factor: ≤0.0005 (1kHz, 20°C)
- Insulation Resistance: ≥100,000 MΩ at 20°C, 100V DC (≤0.33μF); ≥30,000s at 20°C, 100V DC (>0.33μF)
- Expected Lifetime: over 100,000 hours at Un, operating temperature 70°C
- Dimensions: 65mm x 85mm for the device size
- Design: Screw mount, flame resistant
- Application: Snubber circuits in high voltage and frequency power electronics
Buy the Buy Premier Farnell Snubber Capacitor Part Number MPAPB1K2W15JOM6 Online
Order the Premier Farnell MPAPB1K2W15JOM6 snubber capacitor online today to ensure efficient protection in high voltage and high frequency circuits. Designed to provide reliable performance in demanding environments, this capacitor offers a capacitance of 1.5μF at 1.2kV, with a robust screw mount for easy installation. Its flame-resistant features and long lifetime of over 100,000 hours make it ideal for industrial applications needing durable, high-quality power electronic components. Secure your supply now for optimal circuit safety and stability.
Get Premier Farnell MPAPB1K2W15JOM6 today—high voltage, reliable power electronic protection with screw mount design.
