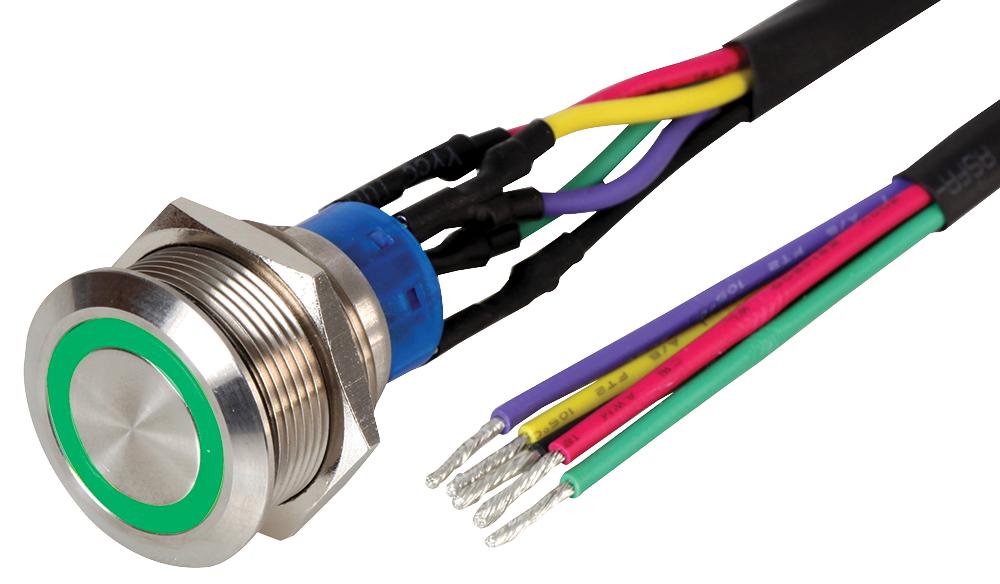

MULTICOMP PRO MPB22A0F10E612T1Q Metal Pushbutton Switch
The Metal Pushbutton Switch is a durable and reliable industrial control component designed for panel mounting applications. It features a stainless steel bushing, PC actuator, and copper contacts with silver plating, ensuring long-lasting electrical performance. The switch is IP67 rated for ingress protection and IK10 for impact resistance, suitable for harsh environments. It operates at 5A/250V AC resistive load, with a mechanical life of 1,000,000 cycles. Its compact design includes a 3.2mm travel and operates at temperatures between 20°C and +55°C, making it ideal for demanding control systems.
MULTICOMP PRO MPB22A0F10E612T1Q Metal Pushbutton Switch Specifications:
- Contact Material: Silver plated copper
- Rating: 5A/250V AC resistive load, 3A/250V AC
- Electrical Life: 50,000 make-and-break cycles at full load
- Mechanical Life: 1,000,000 cycles
- Insulation Resistance: 1,000MQ min at 500V DC
- Dielectric Strength: 2,000V RMS at sea level
- Operating Temperature: 20°C to +55°C
- Travel: About 3.2 mm
- Ingress Protection: IP67, IK10
- Material: Bushing stainless steel, actuator PC, base PBT/PC, spring steel, sealing silicone
- Terminal/Contact: Copper, silver plated
- Hex Nut: Nickel plated brass
- Operation Pressure: 2.541N for 1 Pole, 3.5+1N for 2 Poles
- Torque: 5-14 Nm
Buy the Buy Multicomp Pro Metal Pushbutton Switch Part Number MPB22A0F10E612T1Q Online
Purchase the Metal Pushbutton Switch online for reliable performance and durable stainless steel construction. Designed for harsh industrial environments, it features IP67 ingress protection, impact-resistant design, and silver-plated copper contacts. Rated for 5A at 250V AC resistive load, with a mechanical lifespan of 1,000,000 cycles, it ensures long-lasting operation. Easy to install with a compact design, it operates efficiently within a temperature range of 20°C to +55°C and is suitable for control panels demanding durability and precision.
Get Multicomp Pro Metal Pushbutton Switch MPB22A0F10E612T1Q today—built for durability, impact resistance, and reliable control in industrial applications.
