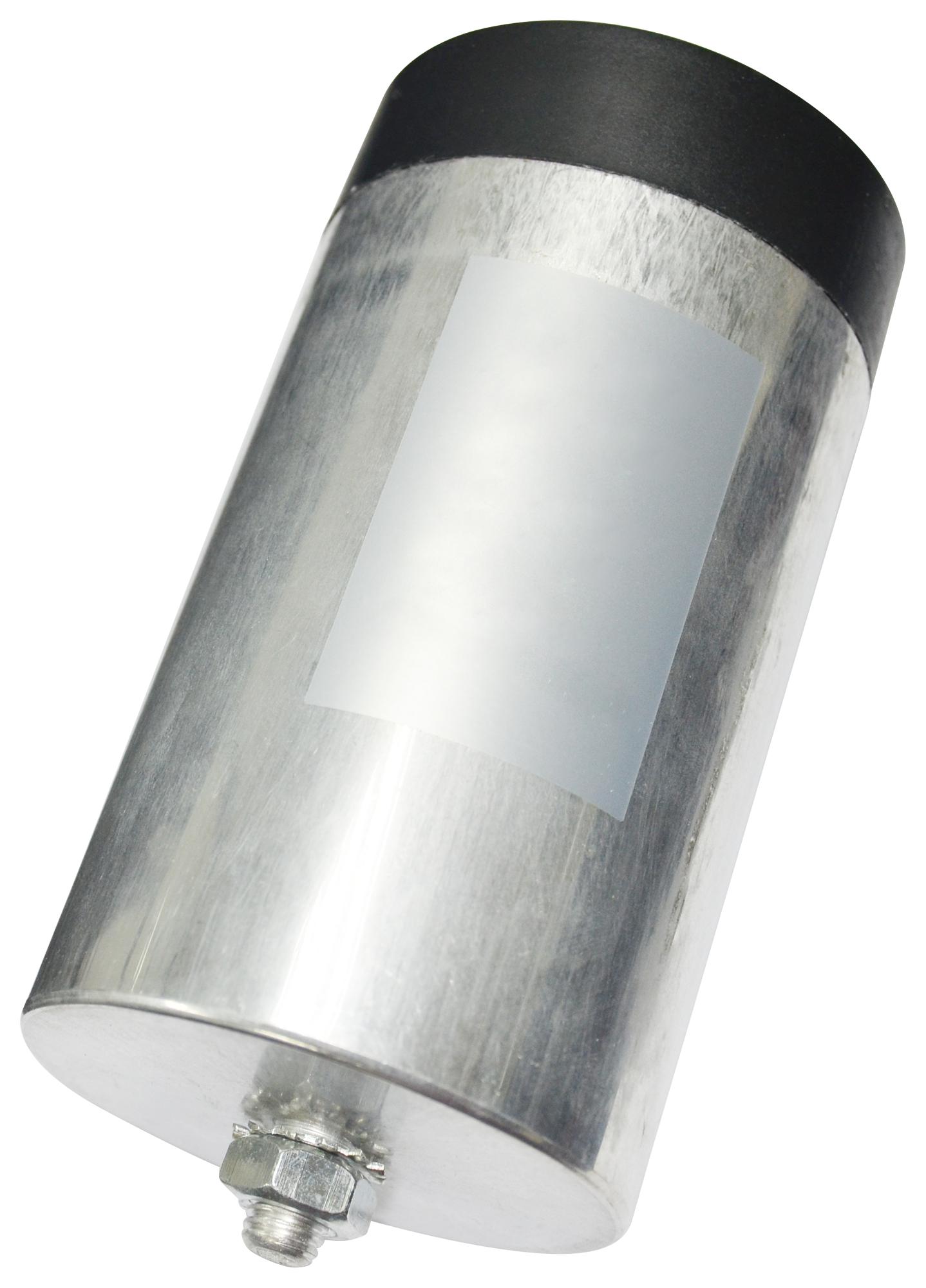

MULTICOMP PRO MPDAT106J450VD42T4M DC-Link Capacitor
These DC-Link film capacitors from the MPDAT series are designed for high-performance electrical systems in renewable energy, electric vehicles, and industrial drives. Featuring low ESR, high ripple current handling, and self-healing properties, they ensure reliability and longevity in DC-Link circuits. With a wide temperature range of -40°C to +85°C, they meet global standards like GB/T17702 and IEC 61071. Rated voltages are 300V, 360V, and 450V, with capacitance values from 10uF to 50uF, making them suitable for inverter applications, motor drivers, and welding equipment.
MULTICOMP PRO MPDAT106J450VD42T4M DC-Link Capacitor Specifications:
- Reference Standard : GB/T17702 (IEC 61071)
- Climatic Category : 2 40/85/56
- Operating Temperature Range : -40°C to +85°C
- Capacitance Range : 10uF to 50uF
- Capacitance Tolerance : ±5%(J)
- Test Voltage Between Terminals : 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case : 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Rated Voltage (Urms) : 300V, 360V, 450V
- IRx CN : 5000s (20°C, 500V DC, 1 min)
- Max. Altitude : 2000m
- Install Bolts/Torque : Aluminium Bolts (M8<4.5N.m)
- Leads : 250# (2+2) Quick insert
- Rated Frequency : 50/60Hz
- Life Expectancy : 100,000 hours at Un and Ons +70°C
- Failure Rate : SOFIT
- Dielectric Material : Metallized Polypropylene Film
- Dimensions : Length 42mm, Width 65mm, Height 16mm, with a rated voltage of up to 450V, capacitance 10uF, compatible for high-energy under harsh industrial conditions.
Buy the Premier Farell DC-Link Film Capacitors – Reliable Power Storage Components for Industrial Applications
Purchase the high-quality DC-Link film capacitor from Premier Farell's MPDAT series online today. Designed for renewable energy, industrial drives, and EV applications, it features low ESR, high ripple current capacity, and self-healing qualities. With a robust design suitable for -40°C to +85°C temperature range, rated voltages of 300V, 360V, and 450V, and capacitance values from 10uF to 50uF, this capacitor ensures dependable operation and enhances your system’s efficiency, durability, and safety for demanding industrial environments.
Get Premier Farell MPDAT106J450VD42T4M today—built for high performance and long-lasting reliability in your power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDAT106J450VD42T4M?
You can click on the BUY or RFQ button to purchase MPDAT106J450VD42T4M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT106J450VD42T4M?
You can download the MPDAT106J450VD42T4M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDAT106J450VD42T4M?
MULTICOMP PRO
