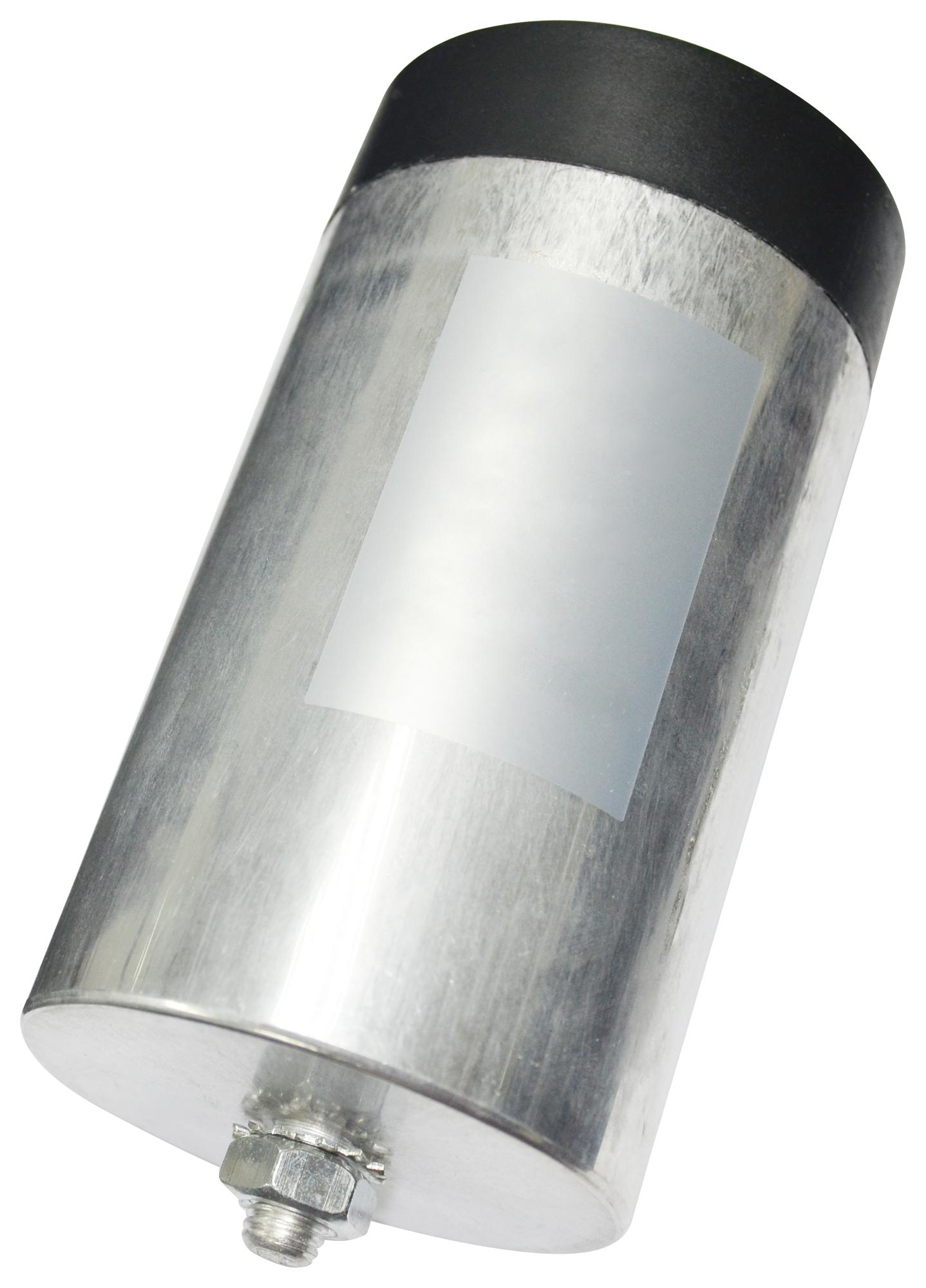

MULTICOMP PRO MPDAT356J300VD45T4M DC-Link Film Capacitor
DC-Link film capacitors are essential components used in DC-Link circuits as a replacement for electrolytic capacitors, offering low ESR and high ripple current handling. They are suitable for wind and solar power inverters, electric vehicle or hybrid electric vehicle systems, welders, elevators, and motor driver applications. These capacitors feature self-healing properties, metallized polypropylene dielectric material, and a rated voltage of 300V, with a capacitance of 35μF. They operate within -40°C to +85°C, ensuring reliability in demanding environments, with a lifespan of 100,000 hours at +70°C.
MULTICOMP PRO MPDAT356J300VD45T4M DC-Link Film Capacitor Specifications:
- Operating Temperature Range: -40°C to +85°C
- Capacitance Range: 10μF to 50μF
- Capacitance Tolerance: ±5%
- Rated Voltage: 300V, 360V, 450V
- Test Voltage Between Terminals: 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case: 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Dielectric Material: Metallized Polypropylene Film
- Life Expectancy: 100,000 hours at +70°C and rated voltage
- Climatic Category: 2 40/85/56
- Max. Altitude: 2000m
- Lead Configuration: 250# (2+2) Quick insert
- Rated Frequency: 50/60Hz
- Failure Rate: SOFIT
- Reference Standard: GB/T17702 (IEC 61071)
- Size: Diameter 45mm, height 85mm
- Connectors: Aluminium bolts (M8, torque <4.5 N.m)
Buy the Buy Multicomp Pro DC-Link Film Capacitors Part Number MPDAT356J300VD45T4M Online
Order the DC-Link Film Capacitor with 35μF capacitance and 300V rated voltage online today. Designed for renewable energy, EV, inverter, and motor drive systems, this capacitor offers excellent ripple current capacity, long life span of 100,000 hours, and self-healing properties. Its metallized polypropylene dielectric ensures high reliability in demanding environments, operating from -40°C to +85°C, making it ideal for industrial applications. Purchase now to enhance your power management systems with dependable, high-quality capacitors.
Buy Multicomp Pro MPDAT356J300VD45T4M now and experience reliable high ripple current handling for power inverter and EV applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDAT356J300VD45T4M?
You can click on the BUY or RFQ button to purchase MPDAT356J300VD45T4M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT356J300VD45T4M?
You can download the MPDAT356J300VD45T4M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDAT356J300VD45T4M?
MULTICOMP PRO
