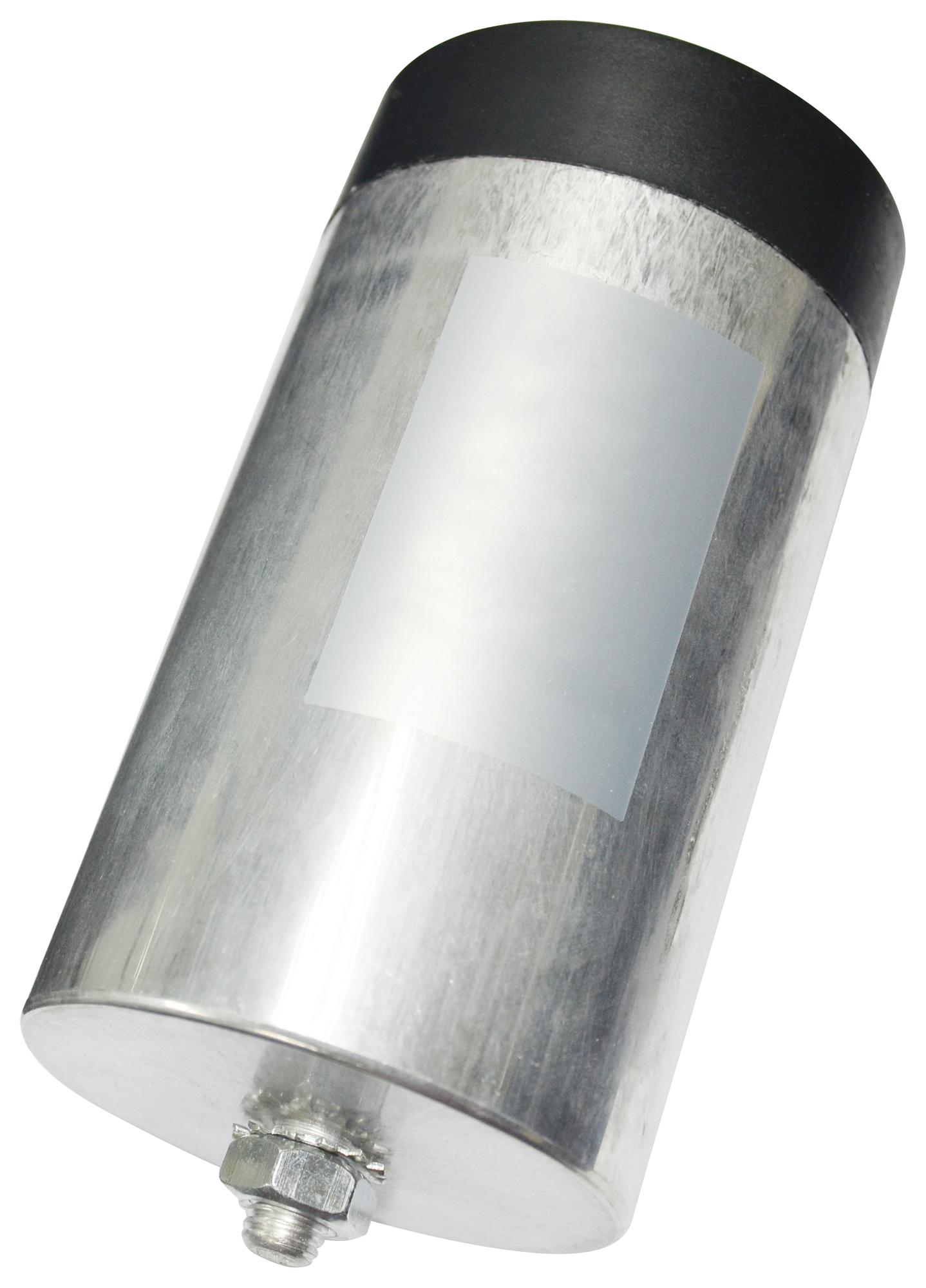

MULTICOMP-PRO MPDAT427K1K1VD86N6M DC-Link Capacitor
This DC-Link film capacitor is designed for high-voltage applications in renewable energy and industrial systems. Made with metallized polypropylene film, it offers low ESR, high ripple current capacity, and self-healing properties. Suitable for use in wind and solar power inverters, electric vehicle or hybrid electric vehicle systems, welders, elevators, and motor drives, it operates within a temperature range of -40°C to +85°C. With a rated voltage of 1100V DC and a capacitance of 420uF, it ensures long-term durability with a life expectancy of 100,000 hours at +70°C, meeting IEC 61071 standards.
MULTICOMP-PRO MPDAT427K1K1VD86N6M DC-Link Capacitor Specifications:
- Capacitance: 420uF
- Rated Voltage: 1100V DC
- Operating Temperature Range: -40°C to +85°C
- Test Voltage Between Terminals: 1.5Un for 10s
- Dielectric Material: Metallized Polypropylene Film
- Climatic Category: 2 40/85/56
- Life Expectancy: 100,000 hours at +70°C
- Maximum Altitude: 2000m
- Install Bolts/Torque: Aluminium Bolts M12, 10N·m
- Leads to Electrical Extremes: 2-M6x20 Bolt
- Rated Frequency: 50/60Hz
- Failure Rate: SOFIT
- Test Voltage Between Terminals and Case: 1500V DC, 3000V AC for 10s
Buy the Multicomp Series DC-Link Capacitor: 420uF 1100VDC MPDAT427K1K1VD86N6M
Purchase the Multicomp DC-Link Capacitor MPDAT427K1K1VD86N6M online today and ensure optimal performance for your renewable energy, industrial, or automotive systems. This high-quality capacitor features a robust metallized polypropylene dielectric for durability and efficient energy storage, rated at 1100V DC with 420uF capacitance. Ideal for inverter circuits, motor drives, and high-voltage power systems, it offers long life, excellent ripple current handling, and self-healing properties. Secure your supply now and leverage advanced technology for reliable energy management.
Buy Multicomp DC-Link Capacitor MPDAT427K1K1VD86N6M now and experience unmatched reliability and performance in high-voltage energy storage and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPDAT427K1K1VD86N6M?
You can click on the BUY or RFQ button to purchase MPDAT427K1K1VD86N6M from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT427K1K1VD86N6M?
You can download the MPDAT427K1K1VD86N6M datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPDAT427K1K1VD86N6M?
MULTICOMP-PRO
