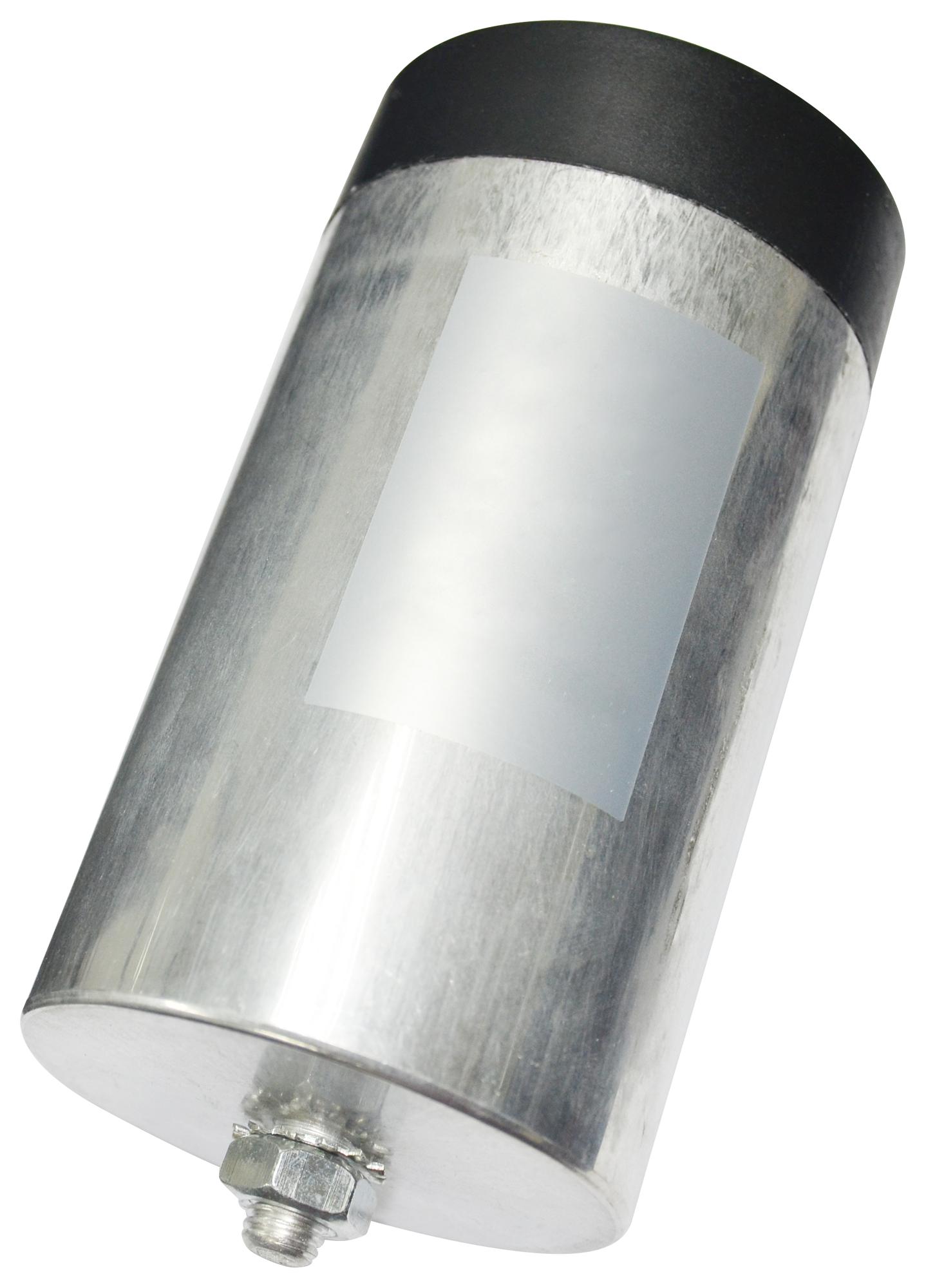

MULTICOMP PRO MPDAT706J480VD76N6M DC-Link film capacitor
The DC-Link film capacitors are designed for use in high-reliability power electronic applications such as wind and solar inverters, electric and hybrid vehicle systems, welders, and motor drives. Constructed with metallized polypropylene film, these capacitors feature low ESR, high ripple current handling, and self-healing properties. Their robust design supports operate seamlessly across a temperature range of -40°C to +85°C and comply with standards like GB/T17702 and IEC 61071. Available in various voltage and capacitance options, they offer long-term durability, making them ideal for demanding energy conversion systems.
MULTICOMP PRO MPDAT706J480VD76N6M DC-Link film capacitor Specifications:
- Climatic Category 2 40/85/56
- Operating Temperature Range :-40°C to +85°C
- Capacitance Range : 40uF to 100uF
- Capacitance Tolerance : ±5%(J)
- Test Voltage Between Terminals : 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case : 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Rated Voltage (Urms) : 300V and 480V
- IRx CN : 5000s (20°C, 500V DC, 1 min)
- Max. Altitude : 2000m
- Install Bolts/Torque on the Bottom : Aluminium Bolts (M12s10N·m)
- Leads to Electrical Extremes : 2-M6x20 Bolt
- Rated Frequency : 50/60Hz
- Life Expectancy : 100,000 hours at Un and Ons +70°C
- Failure Rate : SOFIT
- Dielectric Material : Metallized Polypropylene Film
Buy the Premier Series DC-Link Film Capacitors: MPDAT 706J480VD76N6M
Secure your energy and power conversion projects with the high-quality DC-Link film capacitor. Designed for demanding renewable energy, EV, and industrial systems, it ensures long-term durability and excellent performance. Invest in reliable components that handle high ripple currents, operate efficiently across a wide temperature range, and feature self-healing properties. Order online today for fast delivery and superior electrical performance, ideal for inverters, welders, and motor drives. Elevate your applications with our premium capacitors, crafted for durability and efficiency.
Buy Premier Series DC-Link film capacitor MPDAT 706J480VD76N6M now and experience unmatched reliability and performance in your energy conversion systems.
