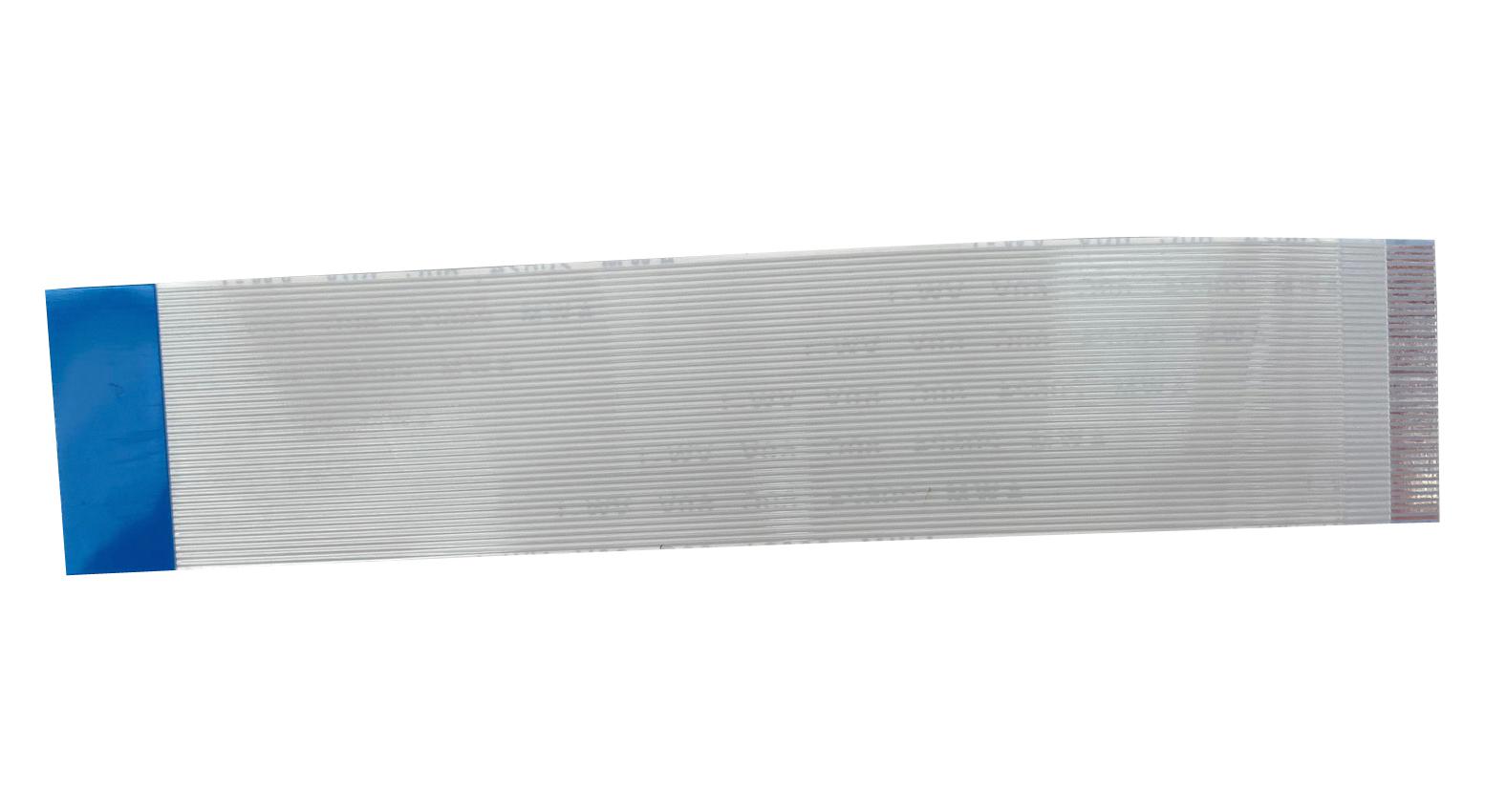

MULTICOMP PRO MPFFCA05400502B Flexible Data Cable
The flat flexible cable is a versatile electronic component designed with a 0.5mm pitch, supporting multiple pin configurations including 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 33, 34, 35, 40, 45, and 50 ways. Manufactured with a PET support tape (blue or white), brass tin-plated conductors, and an insulator adhering to UL standards, the cables are rated for high-temperature environments up to 80°C and voltage up to 60V. Suitable for compact electronic assemblies requiring reliable connections, these cables come in various lengths from 50mm to 200mm, with tolerance deviations, marking specifications, and RoHS compliance, making them ideal for industrial, consumer, and communication applications.
MULTICOMP PRO MPFFCA05400502B Flexible Data Cable Specifications:
- Pitch: 0.5mm
- Conductor Material: Brass with Tin Plating
- Support Tape: PET (Blue or White)
- Rated Temperature: 80°C
- Voltage Rating: 60V
- Length Tolerance: 30mm to 50mm +3%, 51mm to 200mm +5%
- Marking: AWM 20624 80C 60V VW-1
- Operating Environment: RoHS Compliant
- Pin Configurations: 6 to 50 ways
- Lengths Available: 50mm, 100mm, 152mm, 200mm
- Dimensions vary based on style and number of pins
- Fully compliant with UL standards
- Support for high-density connections in electronic assemblies
Buy the Multicomp Pro MPFFCA05400502B – Reliable Flexible Cable for Industrial Applications
Experience reliable and flexible data transmission with the Multicomp Pro MPFFCA05400502B. Designed with a 0.5mm pitch supporting multiple pin configurations, it features durable tin-plated brass conductors and a PET support tape. Rated for up to 80°C and 60V, ideal for high-density electronic connections. Available in lengths from 50mm to 200mm, with tolerance standards ensuring precision fitting. This RoHS-compliant cable is perfect for industrial automation, communication devices, and consumer electronics, providing excellent performance in compact spaces for seamless electrical connectivity.
Get Multicomp Pro MPFFCA05400502B today—built for precision and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPFFCA05400502B?
You can click on the BUY or RFQ button to purchase MPFFCA05400502B from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPFFCA05400502B?
You can download the MPFFCA05400502B datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPFFCA05400502B?
MULTICOMP PRO
