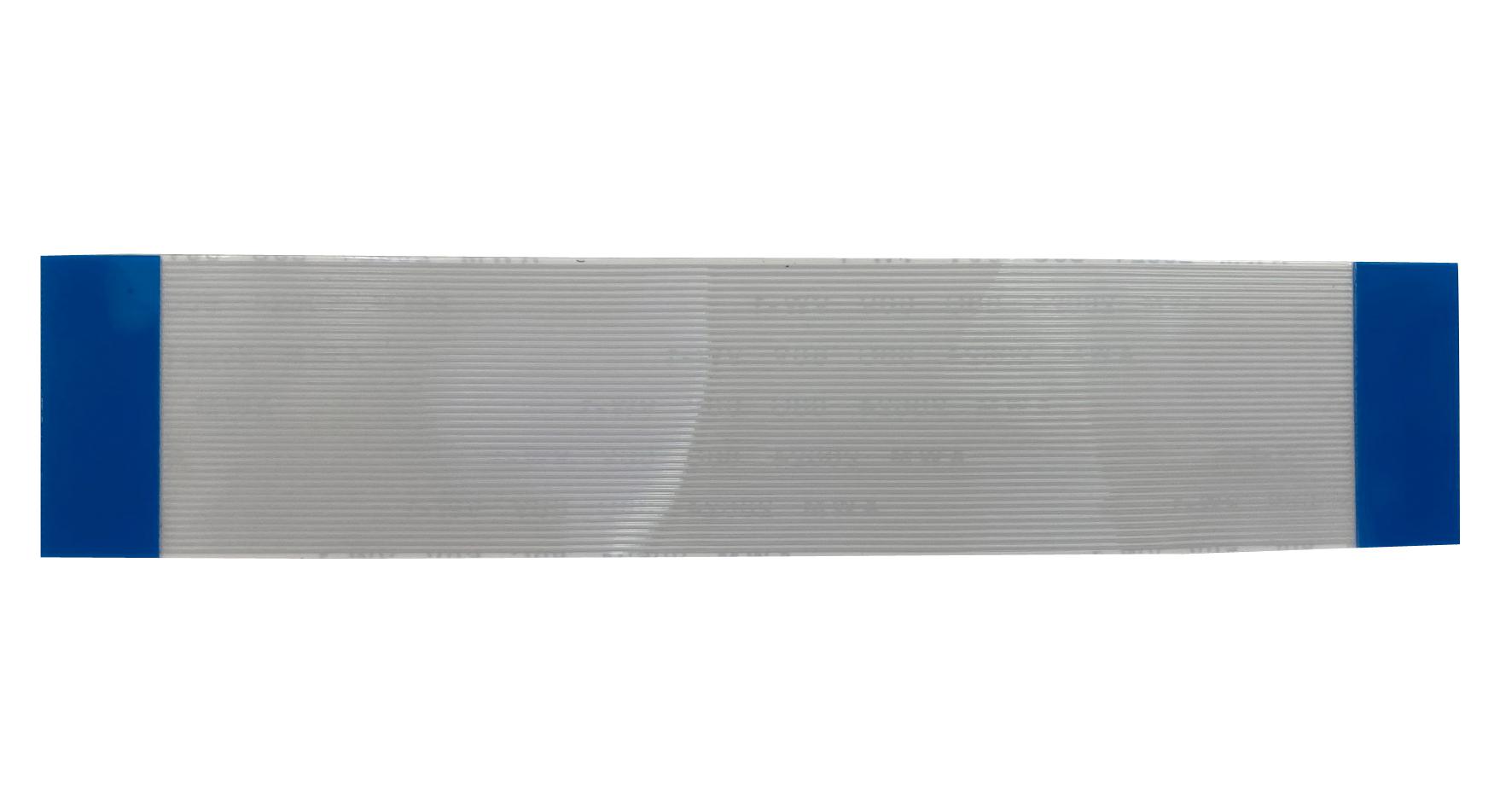

MULTICOMP PRO MPFFCA05451002A Flexible Flat Cable
The Flat Flexible Cable with 0.5mm pitch is designed for reliable data transmission in compact electronic applications. It features a support tape made of PET (white and blue) for insulation and durability. The cable is constructed with brass contacts tin-plated for excellent electrical conductivity and corrosion resistance. Suitable for various lengths up to 200mm, it offers a high pin density and RoHS compliance. Ideal for connecting circuit boards in space-constrained environments, this FFC cable ensures secure connections with precise dimensions and flexible installation options.
MULTICOMP PRO MPFFCA05451002A Flexible Flat Cable Specifications:
- Pitch: 0.5mm
- Contact Material: Brass, tin-plated
- Support Tape Material: PET (Blue and White)
- Conductor Insulation Marking: AWM 20624 80C 60V VW-1
- Operating Temperature Range: 80°C
- Length Tolerance: 30mm to 50mm +3%, 51mm to 200mm +5%
- RoHS Compliant
- Dimensions vary with length and pin count, suitable for multiple circuit configurations
- Pin Count: Up to 50 Way
- Voltage Rating: 60V
- Flammability Rating: UL 94V-0
- Maximum current: 1A per pin
- Temperature Range: -25°C to +80°C
- Support Tape Support: PET, durable and flexible
Buy the Buy Multicomp Pro Flat Flexible Cable Part Number MPFFCA05451002A Online
Purchase the Multicomp Pro flat flexible cable MPFFCA05451002A online today for dependable electrical connections in compact electronic applications. Designed with 0.5mm pitch, it features durable PET support tape and brass contacts tin-plated for optimal conductivity and corrosion resistance. Available in various lengths up to 200mm, it offers high pin density, RoHS compliance, and excellent flexibility. Perfect for circuit board connections where space is limited, ensuring secure and reliable connections for your sensitive electronic devices.
Buy Multicomp Pro MPFFCA05451002A now and experience reliable, high-quality flexible connections for your electronic projects.
