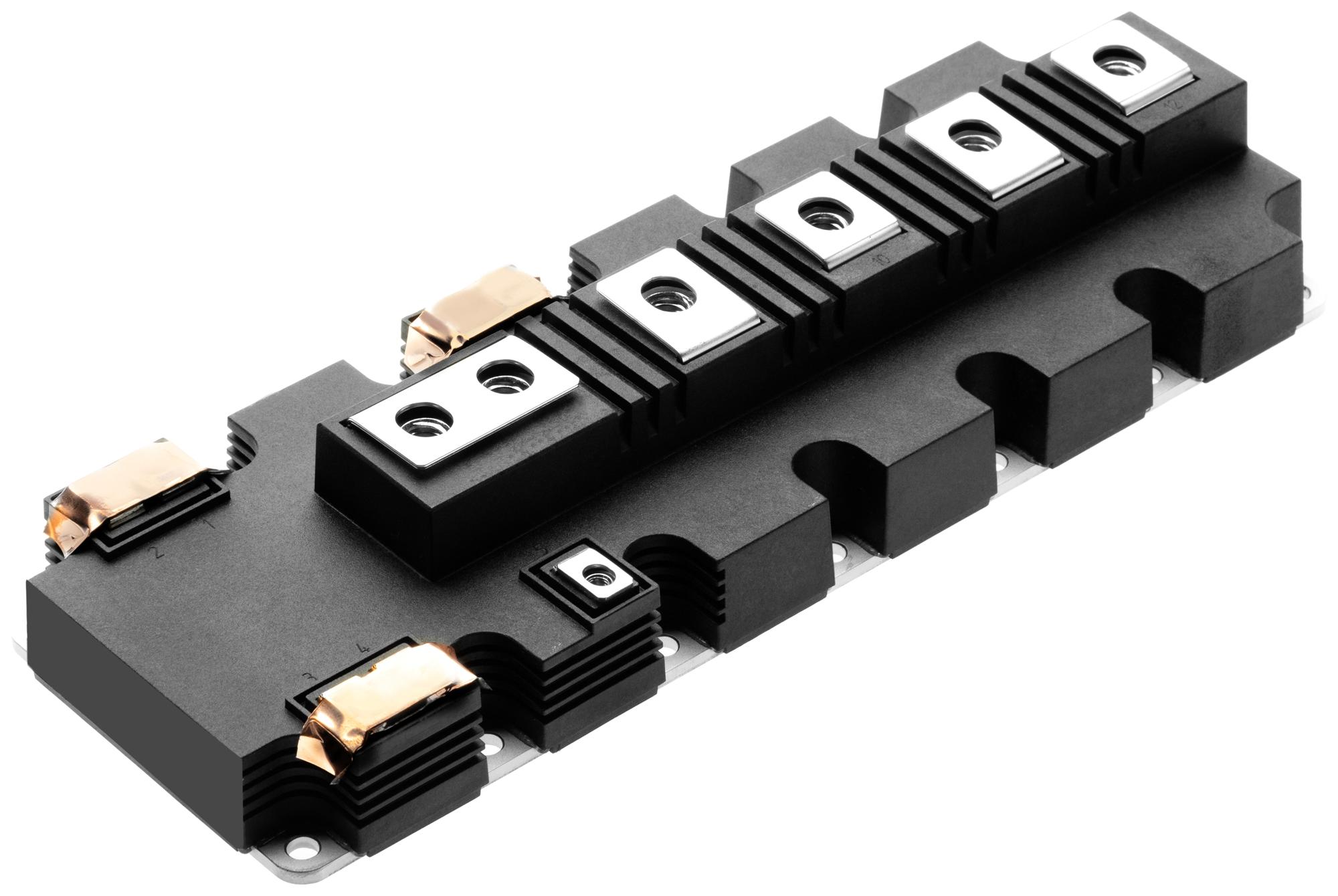

MULTICOMP PRO MPIM1000H117TG5 High Power IGBT Module
The MP005812 is a high-performance Half Bridge IGBT module rated at 1700V and 1000A, featuring trench gate technology, Cu base with Al2O3 substrates, and enhanced short circuit withstand capabilities. Designed for motor drives, high power converters, and renewable energy systems, it offers wide reverse bias safe operating area and optimized thermal cycling. Its electrically isolated baseplate and low inductance construction improve circuit layout safety and reliability, making it ideal for traction drives, inverters, and demanding industrial applications requiring high thermal and electrical performance.
MULTICOMP PRO MPIM1000H117TG5 High Power IGBT Module Specifications:
- Collector-emitter voltage (Vces): 1700 V
- Gate-emitter voltage (Vge): +20 V
- Continuous collector current (Ic): 1000 A
- Peak collector current (Ic pk): 2000 A
- Power dissipation (Pmax): 6.25 kW
- Diode forward current: 1000 A
- Diode maximum forward current: 2000 A
- Collector-emitter saturation voltage (Vce sat): 1.85 V at 1000 A
- Gate threshold voltage (Vge(th)): 5.2 - 6.4 V
- Gate charge: 11.4 μC
- Internal resistance: 0.2 mΩ
- Thermal resistance (transistor): 20 K/W
- Junction temperature range: -40°C to 150°C
- Isolation voltage: 4000 V
- Baseplate material: Copper (Cu)
- Insulation material: Al2O3
- Creepage distance: 33mm
- Clearance: 19mm
- CTI: >400
Buy the Multicomp Series High Power IGBT: MPIM1000H117TG5S
Purchase the Multicomp Series High Power IGBT module MPIM1000H117TG5S today online to ensure superior performance in motor drives, power inverters, and renewable energy systems. Designed with trench gate technology and enhanced short circuit withstand, it offers wide safe operating area and high thermal cycling capability. Its integrated electrically isolated baseplate and low inductance construction allow for flexible circuit layouts and safety improvements, making it the ideal choice for high-demand industrial and energy conversion applications requiring robust and reliable power switching solutions.
Buy Multicomp Series High Power IGBT MPIM1000H117TG5S now and experience unmatched reliability and performance for demanding industrial applications.
