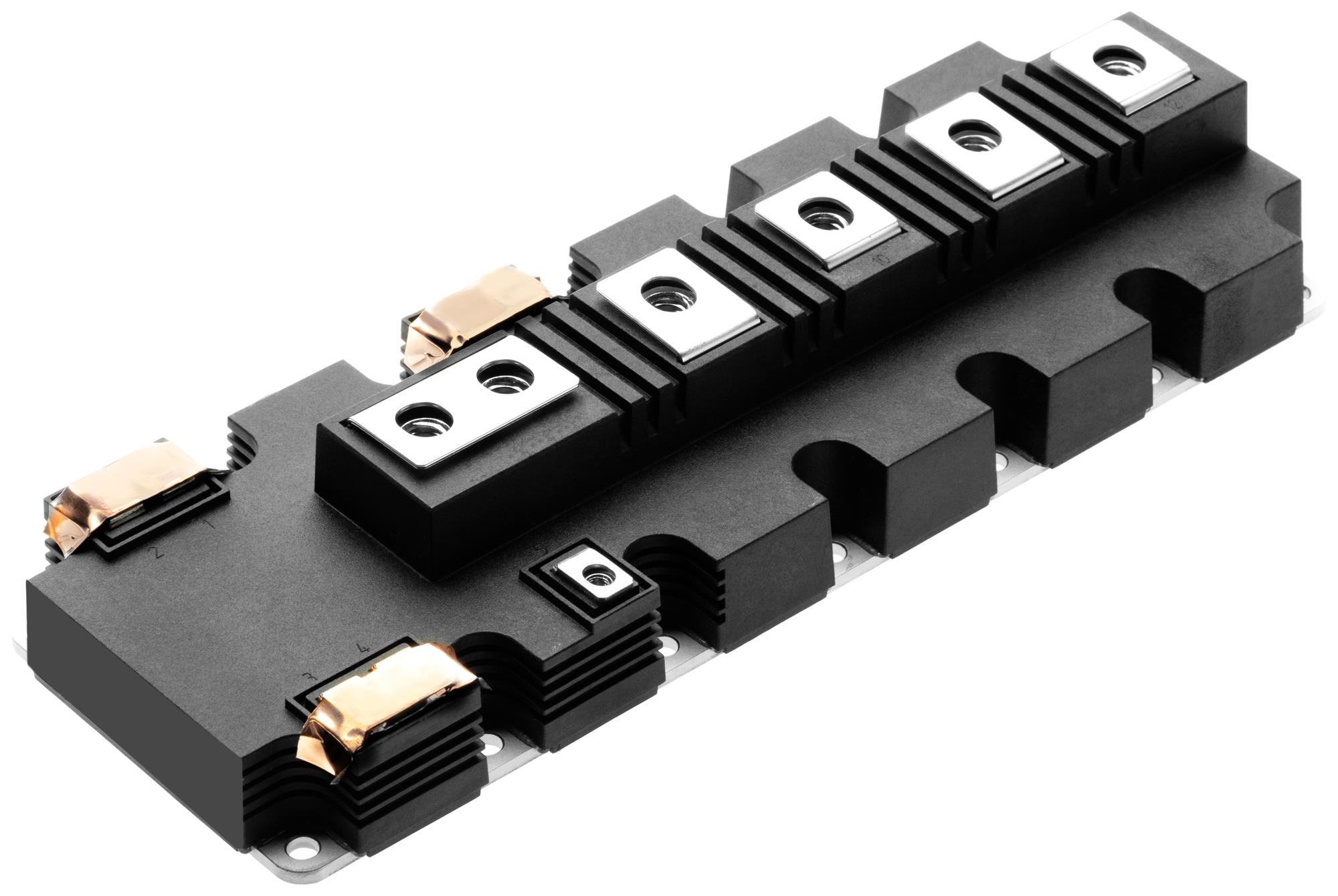

MULTICOMP PRO MPIM1400H112TG5 High Power IGBT Module
The multicomp pro MPIM1400H112TG5S is a 1200V half bridge IGBT module designed for high power applications such as motor drives, renewable energy conversion, and high reliability inverters. It features trench gate IGBTs with copper base and aluminum oxide substrate, offering high thermal cycling capability and a 10us short circuit withstand. The module's electrically isolated base plate and low inductance construction allow safe grounding and optimized circuit layouts. With a collector-emitter voltage of 1200V and continuous collector current of 1400A, it excels in demanding industrial environments requiring efficient power switching and thermal performance.
MULTICOMP PRO MPIM1400H112TG5 High Power IGBT Module Specifications:
- Collector-emitter voltage: 1200 V
- Collector current: 1400 A (continuous)
- Peak collector current: 2800 A
- Power dissipation: 75 kW
- Isolation voltage: 4000 V (AC RMS, 1 min)
- Thermal resistance - transistor junction: 35.5 °C/W
- Junction temperature: -40°C to 150°C
- Mounting torque: 7 Nm
- Baseplate material: Copper (Cu)
- Internal insulation: Aluminum oxide (Al2O3)
- Creepage distance: 33 mm
- Clearance: 19 mm
- Thermal resistance diode junction to case: 17 °C/W
- Leakage current: 20-30 mA at Vge = 0 V, TC=25°C
- Switching characteristics: Turn-off delay ~1320 ns, Turn-on delay ~500 ns
Buy the Multicomp Pro MPIM1400H112TG5S – Reliable 1200V Half Bridge IGBT for Industrial Applications
Purchase the multicomp pro high power IGBT module online today and enhance your industrial power solutions. Designed for motor drives, renewable energy, and inverter systems, it offers exceptional thermal cycling capability, short circuit withstand, and reliable high voltage performance. Its insulated construction enables safe grounding and flexible circuit design. With a robust copper base and aluminum oxide substrate, this module provides high thermal efficiency, low inductance, and durable operation, making it an essential component for power switching in demanding industrial applications.
Get multicomp pro MPIM1400H112TG5S today—engineered for high power, thermal efficiency, and durable performance in demanding industrial environments.
