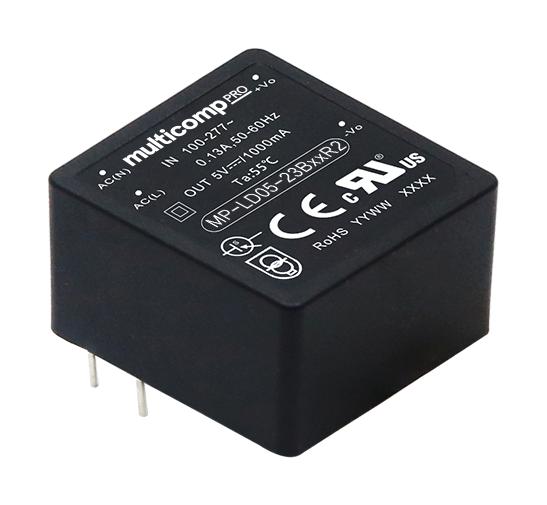

MULTICOMP-PRO MPLD0523B09R2 industrial power supply
The MP-LD05-23B09R2 series is a compact 5W AC-DC converter compatible with PCB mount applications. It features an ultra-wide input voltage range of 85-305VAC and 100-430VDC, high efficiency up to 81.5%, and low no-load power consumption of 0.1W. This module is suitable for industrial, home appliances, communication, and instrumentation uses, thanks to its reinforced isolation, excellent EMC performance, and safety compliance with IEC/EN/UL62368, EN60335, and EN61558 standards. Its small size enables easy integration into tight spaces, and the plastic case meets UL94V-0 flammability criteria.
MULTICOMP-PRO MPLD0523B09R2 industrial power supply Specifications:
- Input Voltage Range: 85-305VAC / 100-430VDC
- Input Frequency: 47-63Hz
- Efficiency: Up to 81.5%
- No-load Power Consumption: 0.1W
- Operating Temperature: -40°C to +85°C
- Dimensions: 25.4mm x 25.4mm x 17.6mm
- Weight: 18g for 3.3V/9V/12V; 18.59g for 24V model
- Isolation Voltage: 4000VAC (input-output)
- Output Power: 3.3V/1500mA, 5V/1000mA, 9V/555mA, 12V/416mA, 24V/208mA
- Output Voltage Accuracy: ±2%
- Ripple & Noise: 50-100mV (peak-to-peak)
- Protection: Short-circuit, Over-current, Over-voltage
- Safety Certification: IEC/EN/UL62368, EN60335, EN61558
- EMC Compliance: CISPR32/EN55032 CLASS B
- Construction Material: Flame-retardant UL94V-0 plastic
- Cooling Method: Free air convection
- Operating Temperature Range: -40°C to +85°C
- MTBF: Over 2,600,000 hours at 25°C
- Certifications: IEC/EN/UL62368, EN60335, EN61558, Class II
Buy the Multicomp 05B09R2 – Reliable AC-DC Power Converter for Industrial Applications
Purchase the Multicomp 05B09R2 industrial power supply today for reliable conversion from AC to DC with high efficiency, wide input range, and safety compliance. Designed for industrial, communication, and home appliance applications, this compact converter provides robust performance, low power consumption, and excellent EMC performance. Its rugged construction meets UL94V-0 flammability standards, ensuring safety and durability in harsh environments. Easily integrate this device into your system for seamless power conversion and dependable operation, backed by safety certifications and long MTBF.
Get Multicomp 05B09R2 today—built for precision, efficiency, and long-lasting durability in industrial and communication environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPLD0523B09R2?
You can click on the BUY or RFQ button to purchase MPLD0523B09R2 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPLD0523B09R2?
You can download the MPLD0523B09R2 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPLD0523B09R2?
MULTICOMP-PRO
