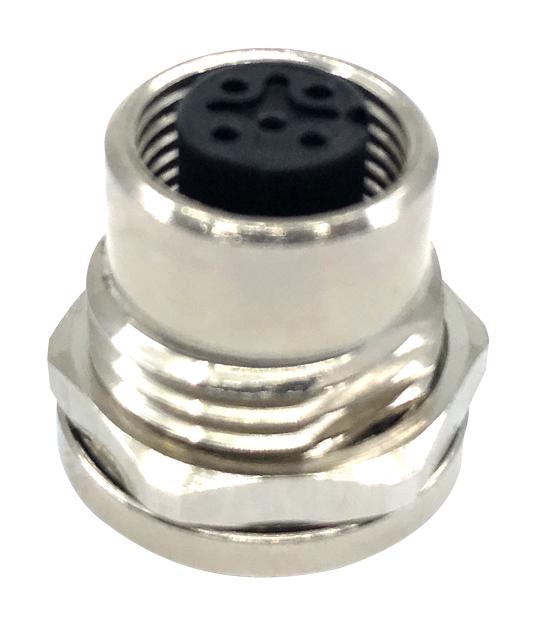

MULTICOMP PRO MPM12SSS4AFP Industrial M12 Connector Module
The MPMIz-Ss Series™ meters Multicomp PRO are versatile M12 connectors designed for robust industrial use, featuring IP67 ingress protection, solder termination, and brass alloy housing. Suitable for applications requiring reliable connectivity, these connectors support rated voltages up to 250V and currents up to 4A, with a durable construction that withstands over 100 mating cycles and a temperature range of -25°C to +85°C. Available in multiple pin configurations, they ensure secure, corrosion-resistant connections in demanding environments, ideal for automation, machinery, and sensor installations.
MULTICOMP PRO MPM12SSS4AFP Industrial M12 Connector Module Specifications:
- Connector Type: M12 Plug and Receptacle
- Termination: Solder
- Panel Thickness: 4mm
- Temperature Range: -25°C to +85°C IEC 60664-1
- IP Rating: IP67 IEC 60529
- Mounting Torque: 60 Nem
- Rated Voltage: 250V (3 - 4 contacts), 600V (5 contacts), 30V (8 contacts)
- Rated Current: 4A (3 - 4 contacts), 4A (5 contacts), 2A (8 contacts)
- Volume Resistance: 8mΩ
- Mating Cycles: >100 IEC 60512-9A
- Pollution Degree: 3 IEC 60664-1
- Contact Material: CuZn, Brass alloy
- Contact Plating: Au over Ni
- Housing Material: CuZn, Brass alloy
- Housing Plating: Ni over Cu
- O-ring Material: FKM
Buy the Premier Series M12 Connectors: MPMIz-Ss-4AFP
Order the MPMIz-Ss Series industrial M12 connector module today for secure, corrosion-resistant connections in automation, sensors, and machinery. Designed for rugged environments, these IP67-rated connectors support voltages up to 250V and currents of 4A, ensuring reliable performance over extensive mating cycles. Their brass alloy housing and gold-plated contacts provide durability and corrosion resistance. Available in multiple pin configurations, they are ideal solutions for demanding industrial installations requiring robust connectivity, making installation easy and safe, with quality assurance for long-term use.
Get Premier Series M12 Connectors, MPMIz-Ss-4AFP today—built for industrial reliability and long-lasting performance.
