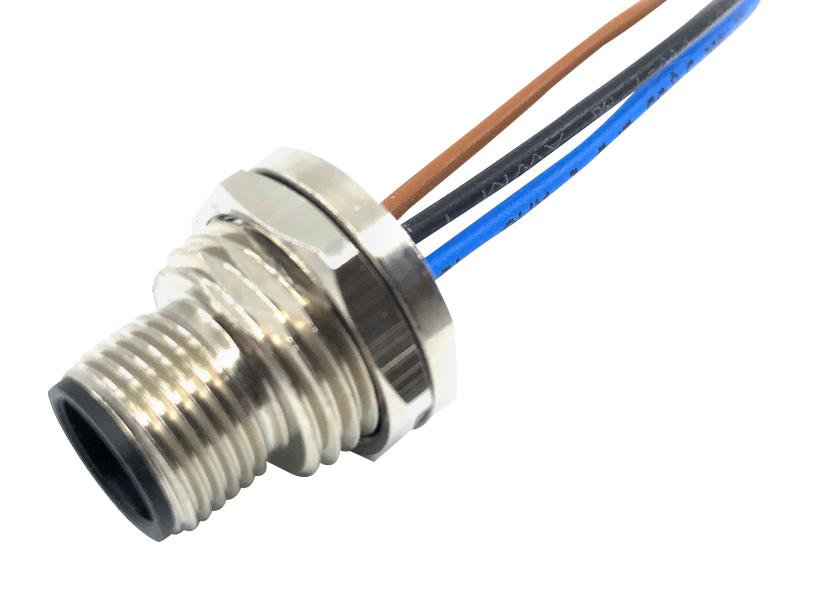

MULTICOMP-PRO MPM12SWP4AFP M12 Cable Assembly
This M12 cable assembly features a plug to free end design with a 4-pin configuration, ideal for industrial automation and sensor connectivity. It is constructed with durable brass alloy contacts, gold-over-Nickel plating, and a polyamide housing for reliable performance in harsh environments. The assembly supports a wire length of 0.5 meters, with IP67 rating for water and dust resistance, and can withstand over 100 mating cycles. Suitable for applications requiring secure and high-quality electrical connections in rugged settings.
MULTICOMP-PRO MPM12SWP4AFP M12 Cable Assembly Specifications:
- Connector: M12 Plug and Receptacle
- Wire Length: 0.5 meter
- Conductor Cross Section: 0.34mm² (3-4 contacts), 0.25mm² (8 contacts)
- Panel Thickness: 4mm
- Temperature Range: -25°C to +85°C IEC 60664-1
- IP Rating: IP67 IEC 60529
- Housing Material: Polyamide
- Contact Material: CuZn, Brass alloy
- Contact Plating: Au over Ni
- Rated Voltage: 50V (3-4 contacts), 50V (5 contacts), 30V (8 contacts)
- Rated Current: 4A (3-4 contacts), 4A (5 contacts), 2A (8 contacts)
- Volume Resistance: 8 mΩ
- Mating Cycles: >100 IEC 60512-9A
- Pollution Degree: 3 IEC 60664-1
- Mounting Torque: 60 Nm
- Connector Type: Plug to free end, receptacle to free end
Buy the Aecoded Series M12 Cable Assembly: MPM12SWP4AFP
Secure your industrial connections efficiently with the M12 cable assembly featuring a 4-pin configuration, 0.5-meter length, IP67 rating, and gold-plated contacts. Designed for rugged environments, this assembly ensures a stable and durable connection for sensors and automation systems. Its polyamide housing offers excellent resistance to wear and environmental factors, supporting over 100 mating cycles for long-term use. Easy to install and compatible with various machinery, it is the ideal choice for reliable industrial wiring solutions.
Order your Aecoded Series M12 cable assembly today and ensure reliable, durable connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPM12SWP4AFP?
You can click on the BUY or RFQ button to purchase MPM12SWP4AFP from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPM12SWP4AFP?
You can download the MPM12SWP4AFP datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPM12SWP4AFP?
MULTICOMP-PRO
