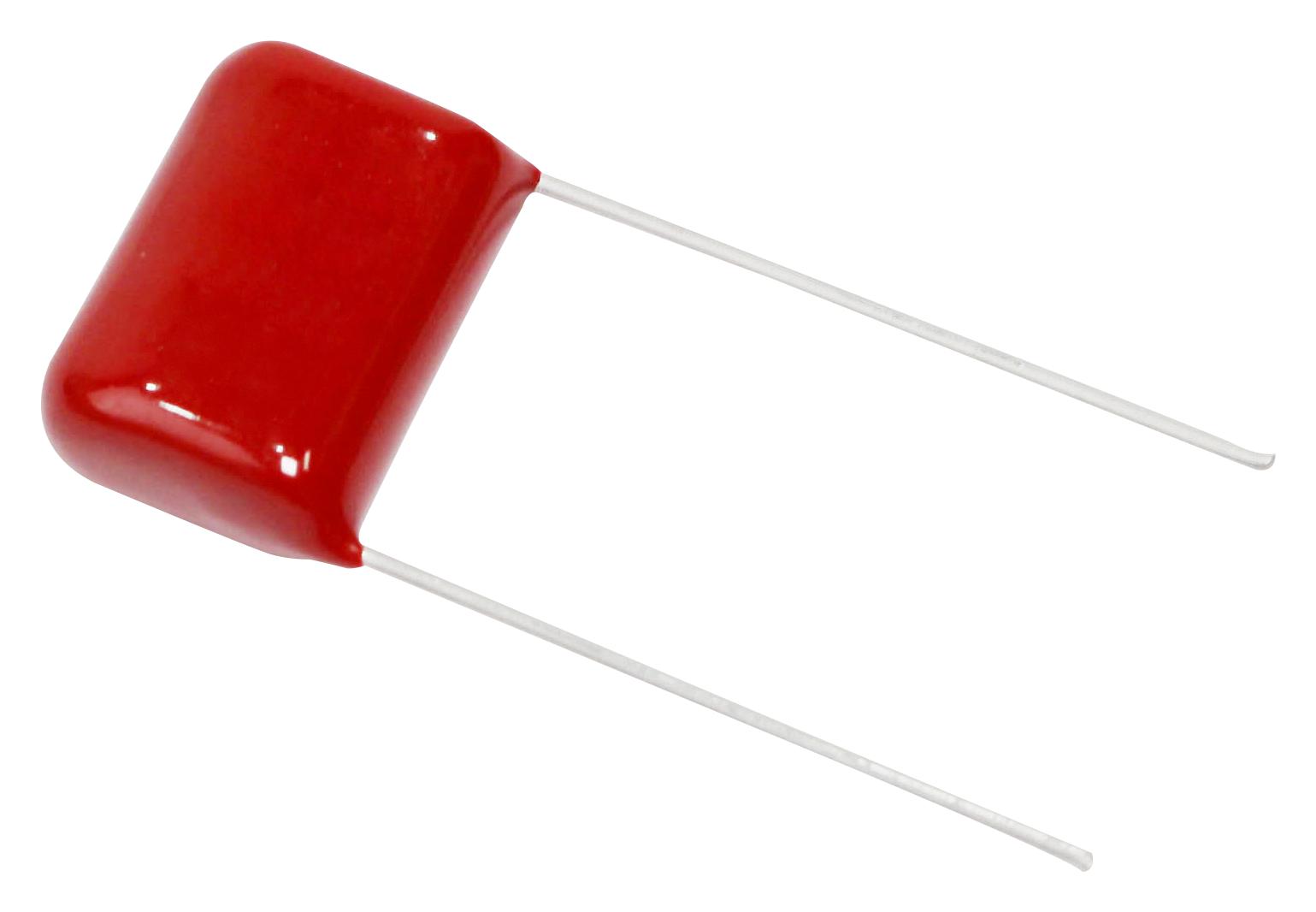

MULTICOMP PRO MPMEF250W47J0N200 film capacitor
High-quality metallized polyester film capacitor designed for filtering, blocking, and coupling applications in electronic circuits. Suitable for use in low pulse and VHF signal filtering, these radial leaded capacitors offer excellent self-healing properties and flame retardation. Rated for temperatures up to +85°C and operational ranges from -40°C to +105°C, they feature various voltage ratings including 250V, 400V, and 630V, with capacitance values from 10.01 pF to 4.7 μF. Perfect for reliable, compact, and lightweight circuit design in industrial and consumer electronics.
MULTICOMP PRO MPMEF250W47J0N200 film capacitor Specifications:
- Reference Standard: GBIT7332 (IEC 60384-2)
- Climatic Category: 40/105/21
- Rated Temperature: +85°C
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage: 250V, 400V, 630V
- Capacitance Range: 10.01 pF to 4.7 μF
- Capacitance Tolerance: +5% (J)
- Voltage Proof: 1.6UR (5s)
- Dissipation Factor: 1% (1kHz, 20°C)
- Insulation Resistance: 3,750 MΩ at 100V for < 0.33 μF, 1,250 s at 100V for > 0.33 μF
- Max. Pulse Rise Time: 30V/μs at 250V, 40V/μs at 400V, 40V/μs at 630V
- Dimensions: Diameter 20mm, length varies with model, lead diameter 0.6 mm
Buy the Brand Name MPMEF – Reliable Capacitors for Industrial Applications
Secure your needs easily by ordering the Brand Name MPMEF series metallized polyester film capacitors online today. These capacitors are ideal for filtering, bypassing, and coupling in electronic designs, especially where compactness and reliability are critical. Featuring flame-retardant epoxy coatings and self-healing properties, they ensure long-term performance. With multiple voltage ratings—250V, 400V, and 630V—and a broad capacitance range, they are suitable for diverse applications from industrial to consumer electronics. Order now for fast delivery and dependable circuit performance.
Order your Brand Name MPMEF Series capacitor today and enhance your circuit reliability with durable, high-performance film capacitors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPMEF250W47J0N200?
You can click on the BUY or RFQ button to purchase MPMEF250W47J0N200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPMEF250W47J0N200?
You can download the MPMEF250W47J0N200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPMEF250W47J0N200?
MULTICOMP PRO
