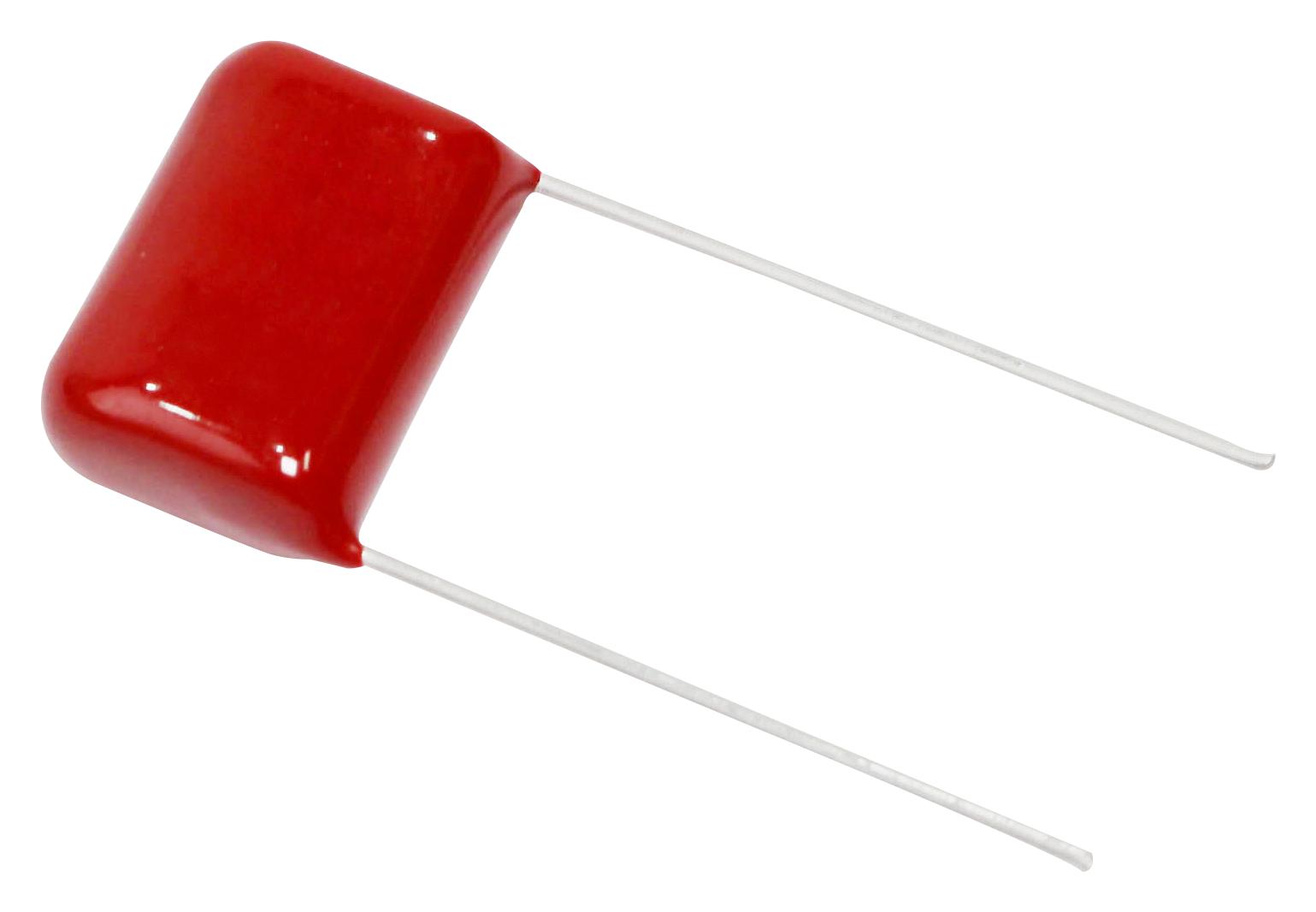

MULTICOMP PRO MPMEF400S68J0F200 Signal Filter Capacitor
The MPMEF400S68J0F200 is a metallized polyester film capacitor ideal for filtering, bypassing, and coupling signals in electronic circuits. With a rated voltage of 400V and capacitance of 0.068uF, it features a low dissipation factor of 1%, high insulation resistance, and a wide operating temperature range of -40°C to +105°C. Its radial leaded design ensures easy PCB mounting, while the flame-retardant epoxy resin coating enhances safety. Suitable for various industrial applications requiring high reliability and stability in signal processing and filtering circuits.
MULTICOMP PRO MPMEF400S68J0F200 Signal Filter Capacitor Specifications:
- Climatic Category: 40/105/21
- Rated Temperature: +85°C
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage: 400V
- Capacitance: 0.068uF
- Capacitance Tolerance: +5%
- Voltage Proof: 1.6UR (5s)
- Dissipation Factor: 1% (1kHz, 20°C)
- Insulation Resistance: > 3,750 MΩ at 100V (20°C, 1min)
- Dimensions: Diameter 12mm, Height 8mm, Lead diameter 0.6mm, Lead length 10mm
- Construction: Metallized polyester film, non-inductive wound
- Features: Self-healing, flame-retardant epoxy coating
- Application: Suitable for filtering, bypass, coupling of DC and signals to VHF range
Buy the Brand name MPMEF400S68J0F200 – Reliable Signal Filter Capacitor for Industrial Applications
Purchase the Brand name MPMEF400S68J0F200 electro film capacitor online today and ensure excellent performance in your electronic projects. Designed for reliability, its 0.068uF capacitance and 400V rating make it ideal for filtering, bypassing, and coupling applications in industrial electronics. Its radial leaded form factor allows easy installation on PCBs, while the flame-retardant epoxy coating provides added safety. This capacitor offers low dissipation factor, high insulation resistance, and a broad temperature range, making it a dependable choice for high-voltage, high-frequency circuits requiring stability and durability.
Buy Brand name MPMEF400S68J0F200 now and experience unmatched reliability and performance in signal filtering for industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPMEF400S68J0F200?
You can click on the BUY or RFQ button to purchase MPMEF400S68J0F200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPMEF400S68J0F200?
You can download the MPMEF400S68J0F200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPMEF400S68J0F200?
MULTICOMP PRO
