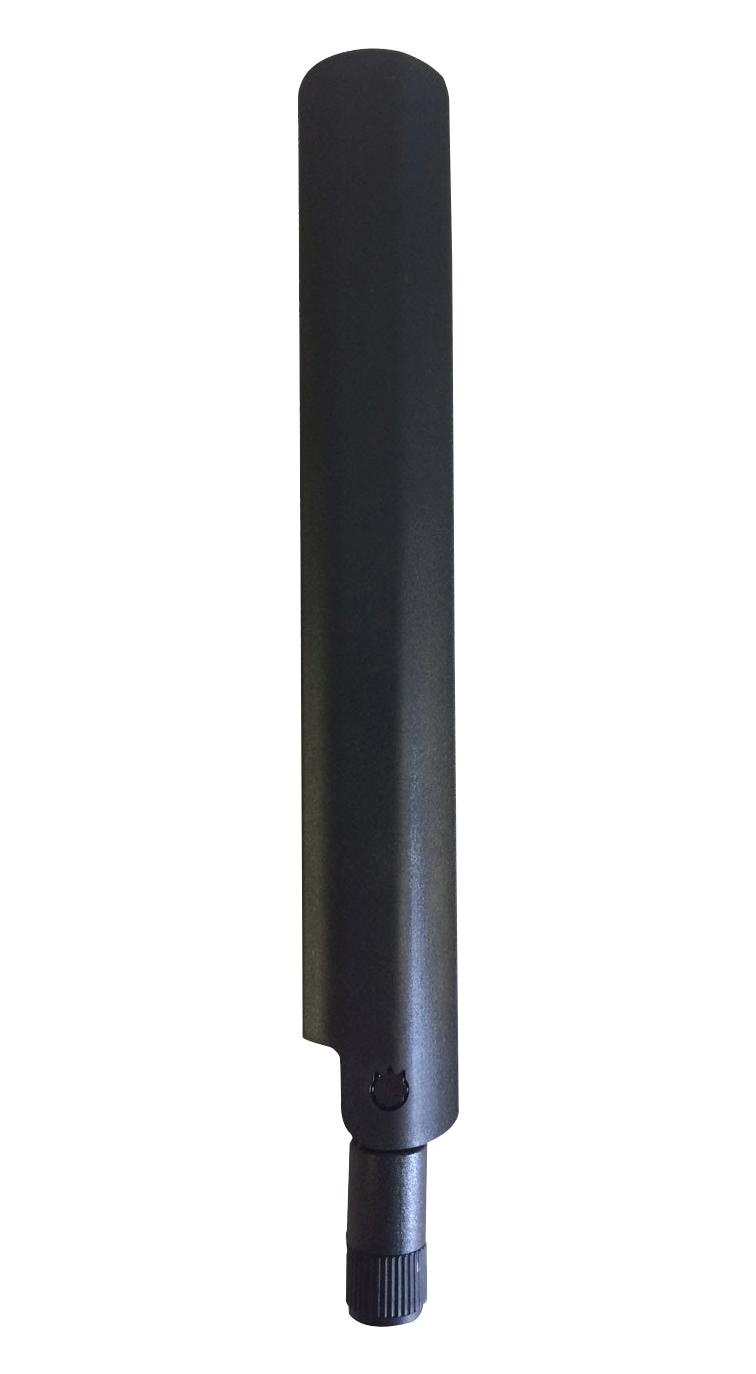

MULTICOMP-PRO MPOALTE0101GTT LTE Omni Antenna
The LTE Omni Antenna with dipole structure covers frequency ranges of 698 to 960MHz, 1710 to 2170MHz, and 2500 to 2690MHz, making it ideal for multi-band LTE applications. Featuring linear vertical polarization, it provides omnidirectional radiation patterns with 360° horizontal and 60° vertical HPBW. The antenna offers peak gains up to 3.8dBi, efficiency from 34% to 76%, and VSWR ratios as low as 2.0:1. Ruggedly designed in a weatherproof housing with an IP67 rating, it’s suitable for outdoor environments, with SMA connectors and a compact size of 115mm length, ensuring reliable performance across multiple LTE frequency bands.
MULTICOMP-PRO MPOALTE0101GTT LTE Omni Antenna Specifications:
- Frequency Range: 698MHz to 960MHz / 1710MHz to 2170MHz / 2500MHz to 2690MHz
- Polarization: Linear, Vertical
- HPBW / Horizontal: 360°
- HPBW / Vertical: 60°
- Peak Gain: 0.7dBi / 3.8dBi / 3.2dBi
- Efficiency: 34% Min. / 47% Min. / 76% Min.
- VSWR: max. 4.0:1 at 690-960MHz, max. 2.6:1 at 1710-2170MHz, max. 2.0:1 at 2500-2690MHz
- Power Handling: 2W (cw)
- Impedance: 50Ω
- Connector: SMA Plug/Joint with OD1.37mm / U.FL-LP-088
- Environmental: Temperature 1-10°C to +55°C, Humidity 95% @ 55°C
- Housing Material: PC (UL-94V0)
- IP Rating: P67
- Weight: 216.19 grams
- Dimensions: 115mm (L) x 38.7mm (W) x 10mm (T)
Buy the Multicomp Series LTE Antenna: 698-2690MHz Omni-directional Dipole Antenna
Enhance your LTE network with this versatile omni-directional antenna covering 698MHz to 2690MHz, offering omnidirectional radiation with 360° horizontal pattern, high efficiency, and durability. Designed for outdoor use, it features a weatherproof IP67 rating, a compact size, and SMA connectors ensuring easy installation. Perfect for boosting wireless coverage across multiple LTE frequency bands, this antenna provides reliable connectivity in various outdoor environments. Elevate your communication systems with this high-performance LTE dipole antenna for seamless, reliable network access.
Buy Multicomp LTE Omni Antenna now and experience exceptional multi-band LTE coverage with robust outdoor durability and high efficiency for reliable network connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPOALTE0101GTT?
You can click on the BUY or RFQ button to purchase MPOALTE0101GTT from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPOALTE0101GTT?
You can download the MPOALTE0101GTT datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPOALTE0101GTT?
MULTICOMP-PRO
