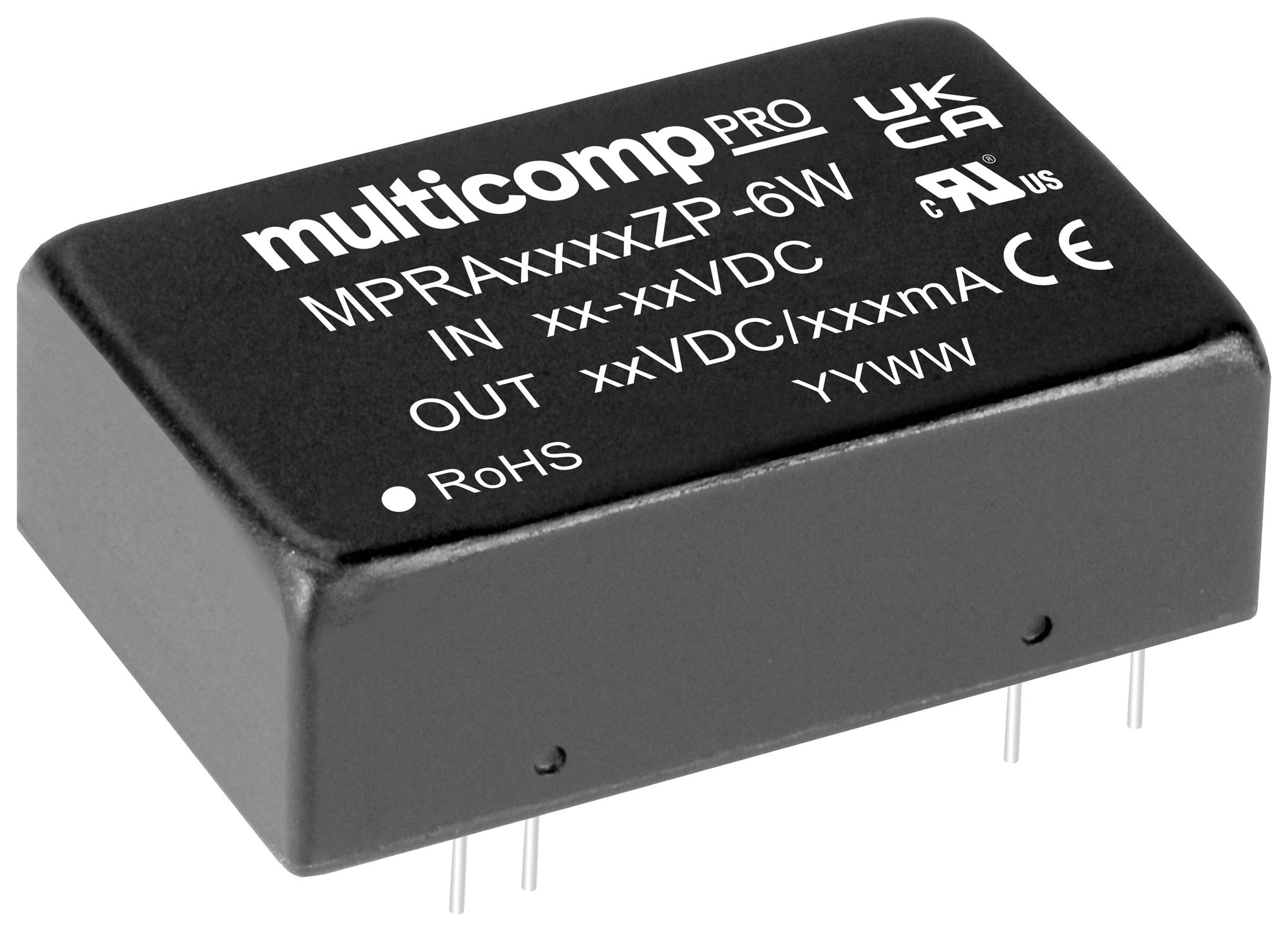

MULTICOMP-PRO MPRA2415ZP6W DC-DC Converter
The MPRA2415ZP-6W is a reliable 6W isolated DC-DC converter featuring an ultra-wide input voltage range of 9-36VDC and 18-75VDC, suitable for industrial, communication, and railway applications. It provides regulated dual or single outputs with high efficiency up to 88%, low no-load power consumption at 0.12W, and comprehensive protections including over-voltage and short-circuit. RoHS compliant and with industry-standard pinout, it is designed for rugged environments with operating temperatures from -40°C to +85°C and tested for 1500VDC isolation to ensure safety and performance in demanding settings.
MULTICOMP-PRO MPRA2415ZP6W DC-DC Converter Specifications:
- Input Voltage Range: 9-36VDC (24VDC input), 18-75VDC (48VDC input)
- Output Power: 6W
- Output Voltage: Various options including +5V, +12V, +15V, +24V, 3.3V, 5V, 9V
- Efficiency: Up to 88%
- Isolation Voltage: 1500VDC
- Operating Temperature: -40°C to +85°C
- Operating Humidity: 5-95% RH
- Dimensions: 32mm x 20mm x 10.80mm
- Case Material: Aluminum alloy
- Compliance: RoHS, UL60950, EN60950, IEC60950, EN50155 railway standard
- Protection: Over-voltage, over-current, short-circuit
- Vibration: IEC/EN61373 Category 1, Grade B
- Switching Frequency: 300 kHz
- MTBF: 1000 hours at 25°C
Buy the Multicomp Isolated DC-DC – Reliable 6W Converter for Industrial Applications
Purchase the multicomp series MPRA2415ZP-6W today online for a dependable 6W isolated DC-DC converter designed for industrial, communication, and railway projects. Featuring an ultra-wide input range, high efficiency up to 88%, and comprehensive surge and short-circuit protections, this converter ensures stable power delivery in demanding environments. Its rugged aluminum alloy case, tested isolation of 1500VDC, and compliance with CE, UL, and EN standards make it ideal for various applications where safety, reliability, and performance are critical. Order now and enhance your power management solutions.
Order your multicomp series MPRA2415ZP-6W today and ensure your projects benefit from a robust and highly efficient power conversion solution.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPRA2415ZP6W?
You can click on the BUY or RFQ button to purchase MPRA2415ZP6W from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPRA2415ZP6W?
You can download the MPRA2415ZP6W datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPRA2415ZP6W?
MULTICOMP-PRO
