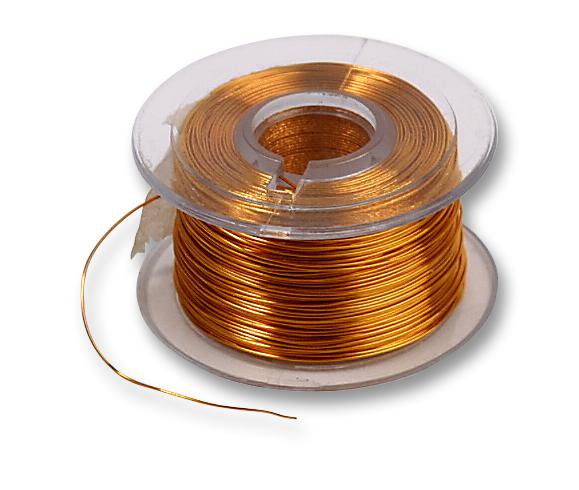

MULTICOMP-PRO MPRRWC105 enameled copper wire
The MPRRWC-105 PK 4 solderable enameled copper wire is 27 meters long with a 0.19mm diameter (36 SWG), featuring a gold-colored coating and self-fluxing polyurethane insulation conforming to BS4520 grade 2. Rated for 1500V, it exhibits a typical resistance of 0.967 ohms per meter, with a current capacity of 131mA. Soldering requires temperatures between +400°C and +480°C. Ideal for prototype wiring, PCB repairs, coil forming, and shorting links, it provides reliable performance in industrial and electronics applications.
MULTICOMP-PRO MPRRWC105 enameled copper wire Specifications:
- Standard Wire Gauge: 36SWG
- Wire Diameter: 0.19mm
- Insulation Thickness: 0.014mm
- Coating: Grade 2
- Resistance: 0.967Ω/m typical
- Current Rating: 131mA
- Insulation Breakdown Voltage: 1500Vrms
- Max Continuous Temperature: +120°C
- Soldering Temperature: +400°C to +480°C
- Reel Length: approximately 27 meters
- Color: Gold, with variations including violet and pink
- Emits toxic fumes when soldered; ensure ventilation
Buy the Multicomp Series Solderable Copper Wire: MPRRWC105
Order the Multicomp Series MPRRWC105 solderable enameled copper wire online now. This 27-meter reel features a 0.19mm diameter, gold-colored coating, and conforms to BS4520 standards. Suitable for PCB repairs, coil winding, and prototype wiring, it withstands soldering temperatures up to +480°C and carries a voltage rating of 1500V. Its high-quality insulation and resistance ensure reliable performance in electronics projects and industrial applications. Secure your supply with our quick, easy online purchase today.
Get Multicomp Series MPRRWC105 solderable enameled copper wire today—built for precision, durability, and reliable electrical connections.
