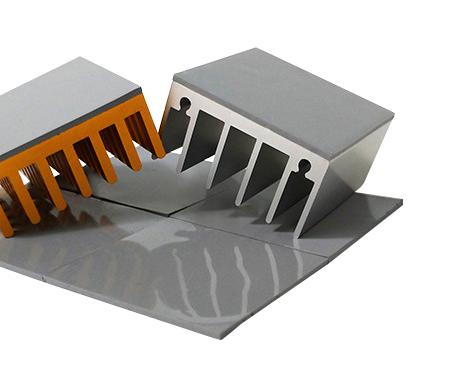

MULTICOMP-PRO MPTGA220015015 Thermal Padding
High-performance thermal management solution with ultra soft, compressible thermal pads for electronic components. Featuring 2.2 W/mK thermal conductivity, these pads are suitable for ICs, CPUs, motherboards, power supplies, and LED applications. Available in various thicknesses from 0.5mm to 2mm, they offer excellent insulation, easy assembly with non-sticky surfaces on one side, and RoHS compliance. Designed for optimal heat dissipation, they perform reliably across a temperature range of -40°C to +180°C, ensuring efficient cooling in high-power electronic devices.
MULTICOMP-PRO MPTGA220015015 Thermal Padding Specifications:
- Thermal Conductivity: 2.2 W/mK
- Thickness: 0.5 to 2 mm
- Dimensions: 150mm x 150mm
- Color: Gray
- Flame Rating: V-1 UL94
- Dielectric Breakdown Voltage: 5 kV/mm
- Volume Resistance: 3 x 10^12 Ohm-m
- Density: 27 g/cm³
- Hardness: 15 Shore 00
- Operating Temperature Range: -40°C to +180°C
- Elongation: 55%
- Weight Loss: <1%
- Material: Thermally conductive silicone-based compound
Buy the Multicomp Series Ultra Soft Thermal Pads: MPTGA220015015
Discover the high-quality Multicomp Series Ultra Soft Thermal Pads, designed to provide efficient heat dissipation for electronic components. With a thermal conductivity of 2.2 W/mK, these pads are available in various thicknesses from 0.5mm to 2mm, offering excellent compressibility, insulation, and easy application thanks to a non-sticky surface on one side. Suitable for ICs, motherboards, power supplies, and LED applications, they operate reliably across a temperature range of -40°C to +180°C, ensuring optimal device performance.
Order your Multicomp Series Ultra Soft Thermal Pads today and enhance your electronic cooling solutions with reliable, flexible heat management.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPTGA220015015?
You can click on the BUY or RFQ button to purchase MPTGA220015015 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPTGA220015015?
You can download the MPTGA220015015 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPTGA220015015?
MULTICOMP-PRO
