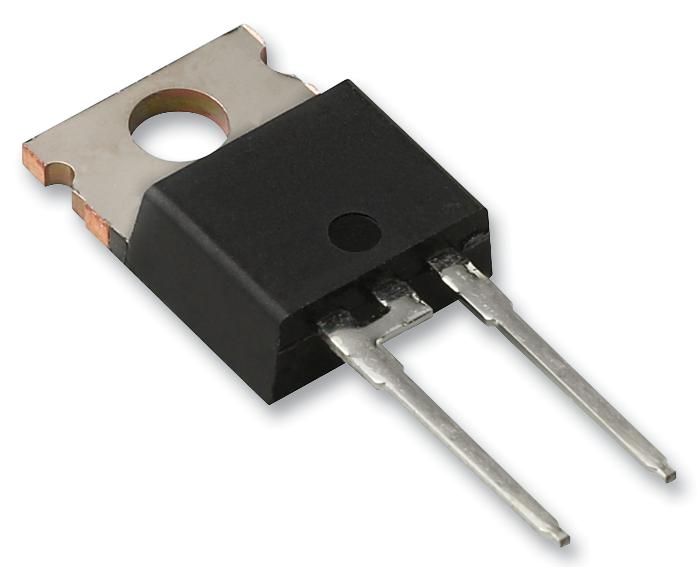

MULTICOMP PRO MUR1640 Superfast Rectifier Diode
The MUR1640 is a glass passivated superfast rectifier diode designed for high-frequency switching applications such as SMPS and inverters. It features a recovery time of 50 ns, low forward voltage drop, and low reverse leakage current, ensuring efficient operation. The diode comes in a TO-220A molded plastic case with pure tin-plated solderable terminals, and is capable of operating at reverse voltages from 400 to 600 V with a maximum forward current of 16 A. Its soft recovery characteristics and RoHS compliance make it suitable for reliable power rectification in demanding environments.
MULTICOMP PRO MUR1640 Superfast Rectifier Diode Specifications:
- Case: TO-220A molded plastic
- Terminals: Pure tin plated, lead free, solderable per MIL-STD-202, method 208
- Polarity: As marked on the body
- Weight: Approx 1.9 grams
- Mounting Position: Any
- Mounting Torque: Max 0.6 N·m
- Reverse Voltage: 400 to 600 V
- Forward Current: 16 A
- Peak Forward Surge Current: 250 A (8.3 ms)
- Max Forward Voltage at 16A: 1.3 – 1.5 V
- Max Reverse Current at 25°C: 10 mA
- Maximum Ratings at 25°C: VRRM up to 600 V, IF up to 16 A, Tj range +165 to +178°C
- Recovery Time (Trr): 50 ns
- Junction Capacitance: 145 pF
- Thermal Resistance Junction to Ambient: 73 °C/W
- Operating Temperature Range: -55°C to +165°C
Buy the Nexperia MUR1640 U– Reliable Superfast Rectifier for Industrial Applications
Get the Nexperia MUR1640 superfast rectifier diode online today to ensure efficient power rectification in your industrial equipment. Designed with glass passivation for high reliability, it offers a recovery time of just 50 ns, high reverse voltage capability of up to 600 V, and a maximum forward current of 16 A. Its TO-220A package allows easy mounting in any orientation, making it perfect for high-frequency SMPS, inverters, and freewheeling applications. Buy now and improve your system's performance with this robust and reliable rectifier diode, available for quick delivery.
Order your Nexperia Series MUR1640 high-speed rectifier today and enhance your power conversion projects with dependable, efficient diodes suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MUR1640?
You can click on the BUY or RFQ button to purchase MUR1640 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MUR1640?
You can download the MUR1640 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MUR1640?
MULTICOMP PRO
