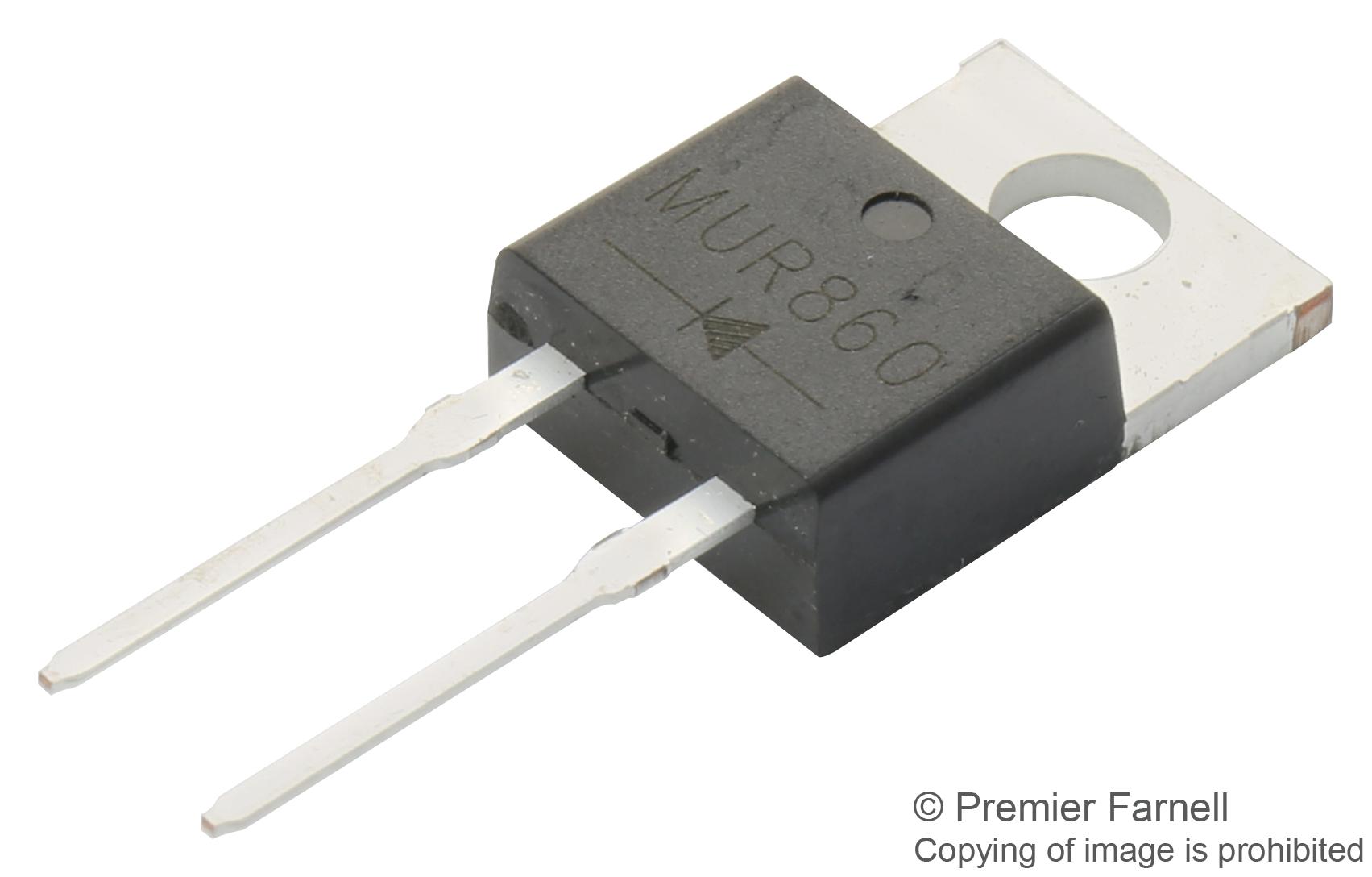

MULTICOMP PRO MUR860 High-Speed Rectifier
The MUR860 is a high-speed ultrafast diode designed for applications requiring fast switching, high efficiency, and reliable performance. It features low power loss, high surge current capability, low forward voltage drop, and low reverse leakage current. The TO-220AC molded plastic case allows flexible mounting in any position. It supports reverse voltages from 200 to 600 volts and forward currents of 8 amperes, making it ideal for high-speed rectification in various electronic and industrial applications, ensuring durability, superior thermal resistance, and robust electrical characteristics.
MULTICOMP PRO MUR860 High-Speed Rectifier Specifications:
- Case: TO-220AC molded plastic
- Lead: MIL-STD-202E method 208C guaranteed
- Weight: 2.24 grams
- Mounting Position: Any
- Reverse Voltage: 200 to 600 Volts
- Forward Current: 8 Amperes
- Max. Recurrent Peak Reverse Voltage: 200 to 600 V
- Max. RMS Voltage: 200 to 600 V
- Max. DC Blocking Voltage: 140 to 420 V
- Peak Forward Surge Current: 8.3 ms single half sine-wave, 100 A
- Maximum Reverse Recovery Time: 35 to 50 ns
- Thermal Resistance: 2 to 3 °C/W junction to case
- Operating Temperature Range: -55°C to +150°C
- Maximum forward voltage at 20A: 0.95 to 1.5 V
- Maximum reverse leakage current at 25°C: 5 A
Buy the Multicomp Series High-Speed Rectifier: MUR860+
Purchase the Multicomp MUR860 high-speed ultrafast rectifier online today to enhance your electronic systems with reliable performance and fast switching capabilities. This diode offers low power loss, high surge current capacity, and low forward voltage drop, making it ideal for high-efficiency applications requiring fast switching. Its robust TO-220AC molded plastic case allows flexible mounting in various positions, supporting reverse voltages up to 600 volts and currents of 8 amperes. Ensure your project benefits from durable, efficient rectification with this high-quality component.
Buy Multicomp MUR860 high-speed ultrafast diode now and experience unmatched reliability and performance in your rectification projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MUR860?
You can click on the BUY or RFQ button to purchase MUR860 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MUR860?
You can download the MUR860 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MUR860?
MULTICOMP PRO
