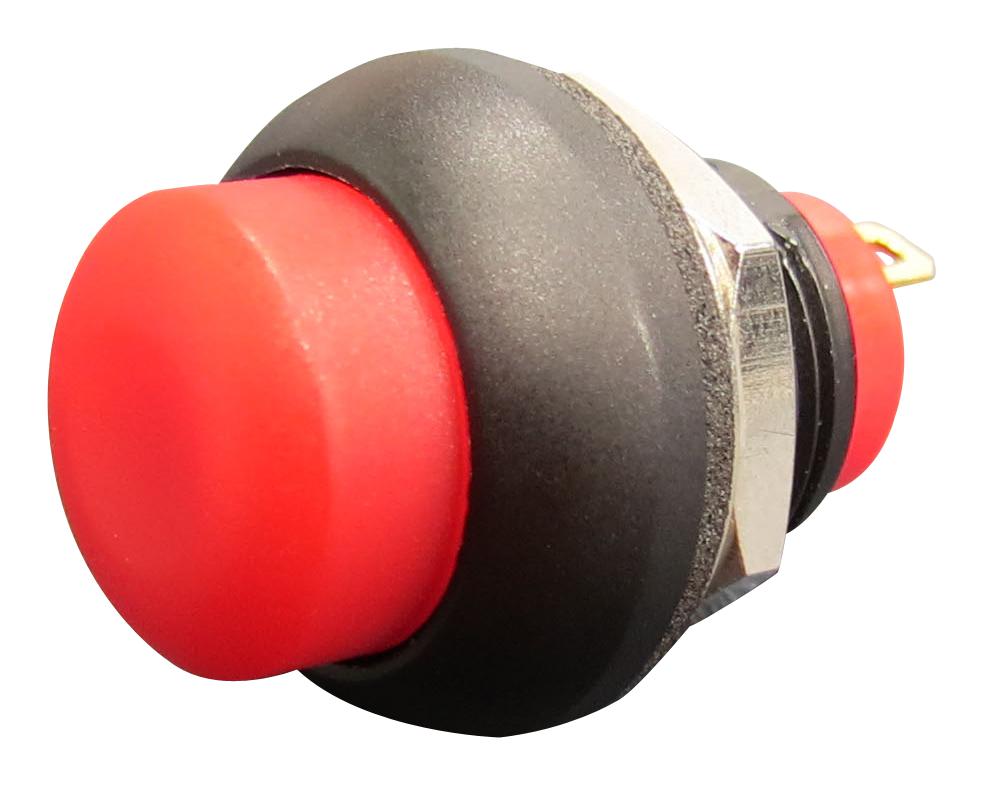

MULTICOMP PRO PAS6D2AM1CESG25 Sub-Miniature Pushbutton Switch
The PAS6D2AM1CESG25 is a sub-miniature, RoHS-compliant pushbutton switch designed for panel mounting. It features a momentary SPST operation with a 1.5mm travel, operating force of 2N to 5N, and a mechanical life of 1,000,000 cycles. Made from durable materials like diallyl phthalate and polyamide 6/6, it supports an operating temperature of -30°C to 85°C and can accommodate panel thicknesses from 0.8mm to 4mm. Its compact design ensures reliable performance in various electronic and industrial applications.
MULTICOMP PRO PAS6D2AM1CESG25 Sub-Miniature Pushbutton Switch Specifications:
- Max. Current/Voltage Load: 400mA 32V AC, 100mA 50V DC, 125V AC, 500mA 48V AC, 200mA 50V DC, 200mA 250V AC for metal material
- Initial Contact Resistance: 50mQ Max.
- Insulation Resistance: 1GQ min. @ 500V DC
- Dielectric Strength: 1,000 VAC rms, 1,500 VAC rms for metal material
- Electrical Life at Full Load: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: 0.8mm to 4mm
- Total Travel: 1.5mm
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 1,000,000 cycles
- Torque: Max 0.5Nm to 1.5Nm
- Soldering Temperature: Max 350°C for 5 seconds
- Materials: Case - Diallyl phthalate (UL94V-0); Cap & Bushing - Polyamide 6/6
- Switch Function: SPST, Momentary
Buy the Buy Multicomp RoHS Sub-Miniature Pushbutton Switch Part Number PAS6D2AM1CESG25 Online
Purchase the Multicomp RoHS-compliant PAS6D2AM1CESG25 sub-mini pushbutton switch online for reliable, long-lasting performance in electronic applications. This robust component features a compact SPST design with a 1.5mm travel, operating force between 2N and 5N, and a durable construction supporting 500,000 cycles. It is suitable for panel thicknesses from 0.8mm to 4mm and performs well at temperatures from -30°C to 85°C. Perfect for controlling circuits with high durability and consistent contact quality.
Get Multicomp RoHS PAS6D2AM1CESG25 today—built for precise operation, strong durability, and reliable performance in industrial controls.
