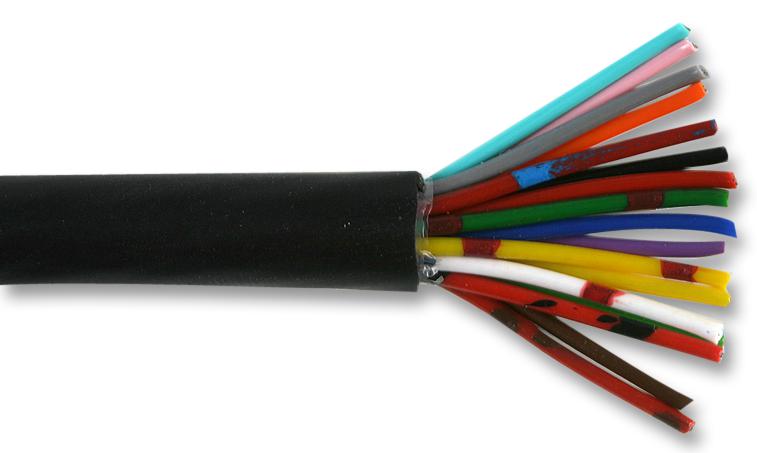

MULTICOMP PRO PP000289 Multicore Cable
This unscreened multicore cable complies with Defence Standard 61-12 Part 4, specifically designed for high-density wiring in electronic equipment and components. Constructed with electrolytic annealed tinned copper conductors, PVC insulation, and a robust Black PVC sheath, it supports applications requiring reliable signal transmission without direct mains power connection. The cable features color-coded cores, a temperature range of 20°C to +70°C, a voltage rating of 440V AC rms at 1600Hz, and a minimum bending radius of 6 times the cable diameter, ensuring durability and safety in demanding environments.
MULTICOMP PRO PP000289 Multicore Cable Specifications:
- Number of cores: 25
- Conductor material: Electrolytic Annealed Tinned Copper
- Conductor diameter: 0.2 mm
- Core insulation: PVC, BS676 Type 2, Radial Thickness 0.3 mm
- Insulation Resistance: Min. 100 MΩ·km at 20°C
- Overall diameter of core: 1.2 mm
- Sheath material: Black PVC, BS6746 Type 6
- Sheath thickness: 0.45 mm
- Sheath diameter: 6.1 mm
- Test Voltage: 1000V core to core for 1 minute
- Voltage rating: 440V AC rms at 1600Hz
- Temperature Range: 20°C to +70°C
- Minimum Bending Radius: 6 x cable diameter
- Color coding: Red, Blue, Green, Yellow, White, Black, Violet, Orange, Pink, Turquoise, Grey, and others for identification
Buy the Generic Multicore Cable – Reliable Defence Standard for Industrial Applications
Secure your electronic wiring needs with this high-quality multicore cable. Designed to meet stringent standards, it offers excellent insulation, flexibility, and durability for demanding industrial environments. With a robust PVC sheath and color-coded cores, it ensures easy identification and safe installation. Suitable for high-density wiring within instruments and equipment, this cable supports applications requiring stable signal transmission up to 440V. Purchase online today to benefit from fast delivery, competitive prices, and tailored solutions for your industrial wiring projects.
Buy multicore cable from us now for dependable high-density wiring and reliable electronic connections in industrial and defense applications.
