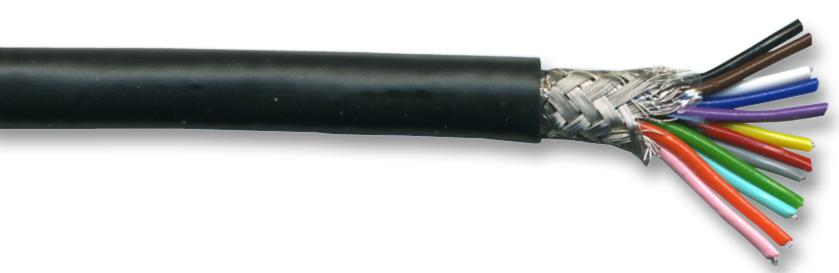

MULTICOMP PRO PP000358 Shielded Multicore Cable
This screened multicore cable, compliant with Defence Standard 61-12 Part 5, provides high-density wiring for electronic components and instrument interconnections. Made with electrolytic annealed tinned copper conductors and PVC insulation, it features a braid screen with 70% fill factor for electromagnetic shielding. Suitable for applications requiring 440V AC rms at 1600Hz, it handles 2.5 Amp per core and has a temperature range from 10°C to +70°C. The cable's black PVC outer jacket ensures durability and flexibility for complex wiring setups in electronic and defense industries.
MULTICOMP PRO PP000358 Shielded Multicore Cable Specifications:
- Number of Cores: 18
- Jacket Diameter over Cores: 9.2 mm
- Diameter over Screen: 10.2 mm
- Jacket Thickness: 1.2 mm
- Outer Diameter: 12.5 mm
- Conductor Material: Electrolytic annealed tinned copper
- Conductor Cross-Section: 16/0.2 mm
- Core Insulation: PVC, BS676 type, Radial Thickness 0.45 mm
- Insulation Resistance: Min. 200 MΩ/km
- Shielding: Braided screen, 0.2 mm wire, 70% fill factor
- Temperature Range: 10°C to +70°C
- Nominal Voltage: 440V AC rms @ 1600Hz
- Test Voltage: 2000V (core to core, 1 min)
- Current Rating: 2.5 Amp per core
- Bending Radius: 6 x cable diameter
- Outer Jacket Color: Black
- RoHS Compliant
Buy the Premier Multicomp PP000358 – Reliable Shielded Multicore Cable for Industrial Applications
Order the shielded multicore cable online today to ensure robust, high-quality wiring solutions for electronic, defense, and industrial applications. Designed with premium materials and compliant with strict standards, it features a braid screen for electromagnetic shielding, PVC insulation, and a durable outer jacket. Capable of handling 2.5A per core at 440V AC, it offers excellent flexibility and protection in complex wiring setups. This cable ensures safety, durability, and high performance for critical electronic systems, making it the ideal choice for technical professionals seeking reliable interconnection solutions.
Buy Premier Multicomp PP000358 now and experience unmatched reliability and performance for demanding electrical wiring environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000358?
You can click on the BUY or RFQ button to purchase PP000358 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000358?
You can download the PP000358 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000358?
MULTICOMP PRO
