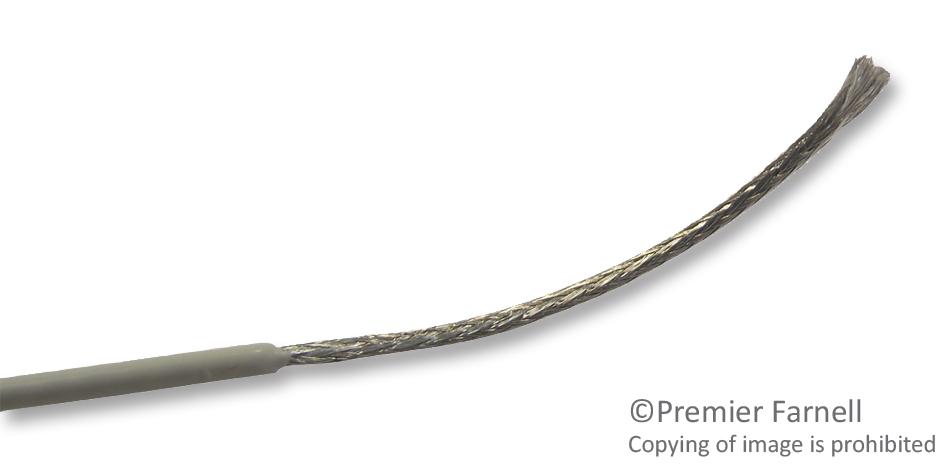

MULTICOMP PRO PP000844 Coaxial Cable
This Coaxial Cable is designed for high-performance applications, featuring silver-plated copper-clad steel inner conductors and PTFE dielectric for minimal signal loss. It operates at 250V with an impedance of 50Ω at 200MHz and maintains excellent electrical characteristics across a temperature range of -90°C to +200°C. The cable offers low attenuation rates, making it suitable for frequency ranges up to 2000 MHz, and is RoHS and PAPPAPER compliant. Its durable construction ensures reliable signal transmission for professional communication and broadcasting systems.
MULTICOMP PRO PP000844 Coaxial Cable Specifications:
- Inner Conductor Material: Silver Plated Copper Clad Steel
- Inner Conductor Diameter: 0.2 mm
- Dielectric Material: PTFE
- Dielectric Thickness: 0.52 mm
- Outer Conductor: Silver Plated Copper Braid
- Jacket Material: FEP
- Jacket Diameter: 1.17 mm
- Operating Voltage: 250 V
- Impedance: 50Ω at 200 MHz
- Velocity of Propagation: 69.5%
- Nominal Capacitance: 85 pF/m
- Operating Temperature: -90°C to +200°C
- Attenuation @ 20°C sea level: 100 MHz - 22 dB/100m, 400 MHz - 115 dB/100m, 1000 MHz - 220 dB/100m, 2000 MHz - 320 dB/100m
Buy the Multicomp Series Coaxial Cable: PP000844
Order the Multicomp series coaxial cable PP000844 online today to benefit from high-quality construction, low signal attenuation, and exceptional electrical performance. Designed for demanding applications, this 50Ω impedance cable features a silver-plated copper-clad steel inner conductor, PTFE dielectric, and durable FEP jacket. Suitable for frequencies up to 2000 MHz, it ensures consistent signal transmission in broadcast, communication, and measurement systems. Enjoy fast delivery, competitive pricing, and trusted quality by purchasing online now.
Buy Multicomp PP000844 coaxial cable now and experience unmatched reliability and signal clarity for professional communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000844?
You can click on the BUY or RFQ button to purchase PP000844 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000844?
You can download the PP000844 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000844?
MULTICOMP PRO
