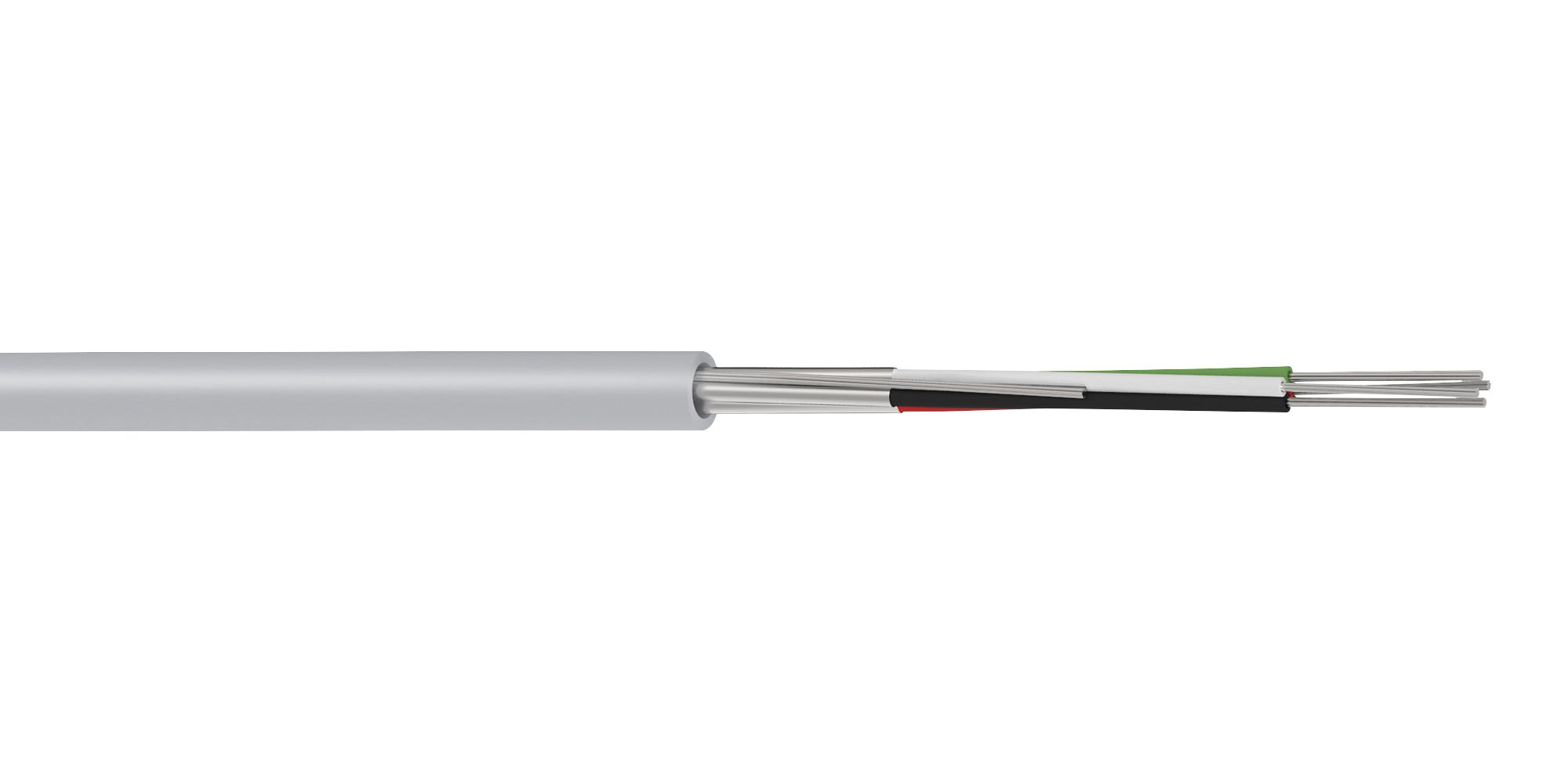

MULTICOMP PRO PP000886 Screened Multicore Cable
The screened multicore LSF computer cable with multicomponent construction is designed for reliable RS232 data transmission. It features stranded tinned copper conductors, PVC insulation, aluminum foil screening, and a grey LSF sheath. Rated for 300V and operating in temperatures from -20°C to +80°C, these cables provide effective protection against electrical interference. Available in 4, 6, and 8 core configurations with color-coded cores, they are ideal for industrial communication applications requiring low smoke and fume compliance, ensuring safety and durability in electronic installations.
MULTICOMP PRO PP000886 Screened Multicore Cable Specifications:
- Voltage Rating: 300V
- Temperature Rating: -20°C to +80°C
- Core Configuration: 4, 6, or 8 cores
- Conductor Material: Stranded tinned copper
- Insulation Material: PVC
- Shielding: Aluminum foil
- Sheath Material: Low Smoke and Fume (LSF)
- Sheath Colour: Grey
- Conductor Area: 24 AWG
- Dimensions: 4 core (45 mm²), 6 core (24 mm²), 8 core (50 mm²)
- Capacitance at 1kHz: PP000886 - 107 pF/m, PP000887 - 94.1 pF/m
- Resistance of Conductor at 20°C: PP000887 - 94.1 Ω/km, PP000886 - 107 Ω/km
- Overall Weight: 37 kg/km for 6 core, 49 kg/km for 8 core
- Maximum Strand Diameter: 0.2 mm
Buy the Multicomp PP000886 – Reliable RS232 Data Cable for Industrial Applications
Order the Multicomp PP000886 screened multicore computer cable online today to ensure your industrial communication systems are protected from electrical interference. This high-performance cable features tinned copper conductors, PVC insulation, aluminum foil shielding, and a low smoke and fume sheath, making it suitable for RS232 data transfer in demanding environments. Available in a convenient 4-core configuration with color-coded cores for easy identification, it combines durability with safety for reliable electronic setups. Get yours now and enhance your system’s performance.
Buy Multicomp PP000886 now and experience high-quality shielding and durability for industrial data transmission needs.
