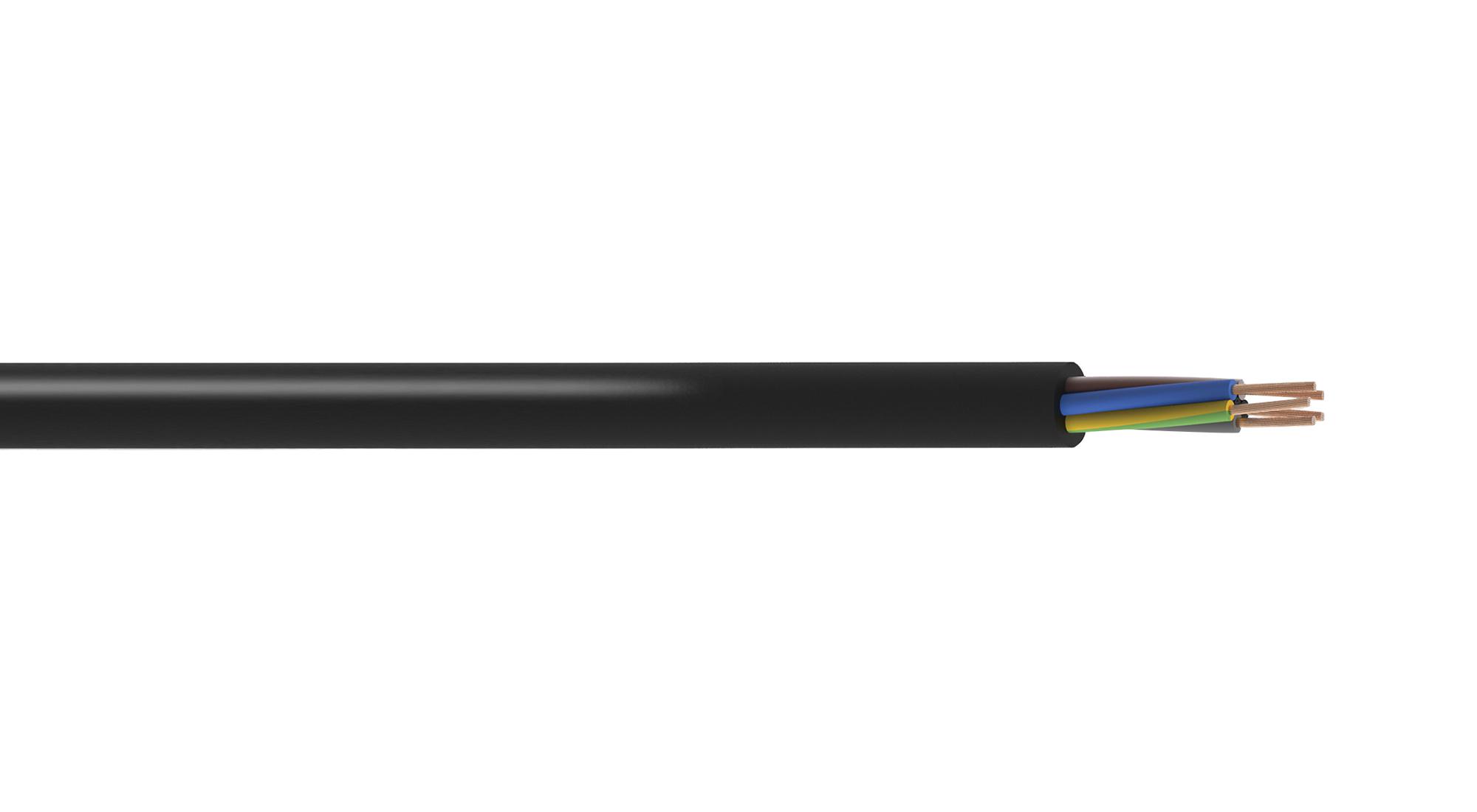

MULTICOMP-PRO PP000946 Flexible Rubber Cable
This unscreened multicore flexible rubber cable is designed for applications demanding high flexibility and resistance to environmental stresses. Made according to BS EN 50525-2-21 standards, it features a flexible copper conductor insulated with Ethylene Propylene Rubber and a Polychloroprene sheath, rated for 450/750V. It withstands weather, oil, grease, mechanical, and thermal stresses suitable for handling equipment, mobile power, industrial environments, and water treatment facilities. The cable's construction ensures durability and safety in severe conditions, with excellent electrical and thermal characteristics.
MULTICOMP-PRO PP000946 Flexible Rubber Cable Specifications:
- Voltage Rating: 450/750V
- Conductor: Class 5 flexible copper conductor to BS EN 60228
- Insulation: Ethylene Propylene Rubber (EPR) Type El4
- Sheath: Polychloroprene (PCP) Type EM2
- Temperature Rating (fixed): -30°C to +60°C
- Temperature Rating (flexed): -15°C to +60°C
- Min. Bending Radius: Fixed: 4 x overall diameter; Flexed: 6 x overall diameter
- Core Identification: 3 core: Green/Yellow, Blue & Brown; 4 core: Green/Yellow, Brown, Black & Grey; 5 core: Green/Yellow, Blue, Brown, Black & Grey; 6+ cores: Black with White numbers, Green/Yellow
- Sheath Colour: Black
- Nominal Cross-Sectional Area & Dimensions: 1 mm², Ø14.78 mm, weight 390 kg/km; 1.5 mm², Ø9.63 mm, weight 142 kg/km; 6 mm², Ø16.4 mm, weight 449 kg/km; 25 mm², Ø14 mm, weight 297 kg/km
- Current Carrying Capacity (approximate): 10A for 1 mm², 16A for 1.5 mm², 25A for 6 mm²
- Voltage Drop: 2 mV/A/m for 1 mm² at 46°C, 19 mV/A/m for 25 mm² at 40°C.
- Dimensions vary by part number, with overall diameters between approximately 9.63 mm and 16.4 mm, and weights from 142 kg/km to 449 kg/km.
Buy the Buy multicomp flexible rubber cable Part Number PP000946 Online
Purchase the versatile and durable flexible rubber cable online today to meet your industrial and outdoor power needs. Designed to withstand weather, oil, and mechanical stresses, this cable adheres to strict standards for safety and reliability. Its excellent flexibility and thermal resistance make it ideal for handling equipment, water treatment, and severe environments. With various sizes available, buying online ensures quick access, competitive pricing, and trusted quality, making this cable your ideal choice for demanding electrical applications.
Buy multicomp PP000946 now and ensure reliable, high-performance power transmission in demanding environments.
