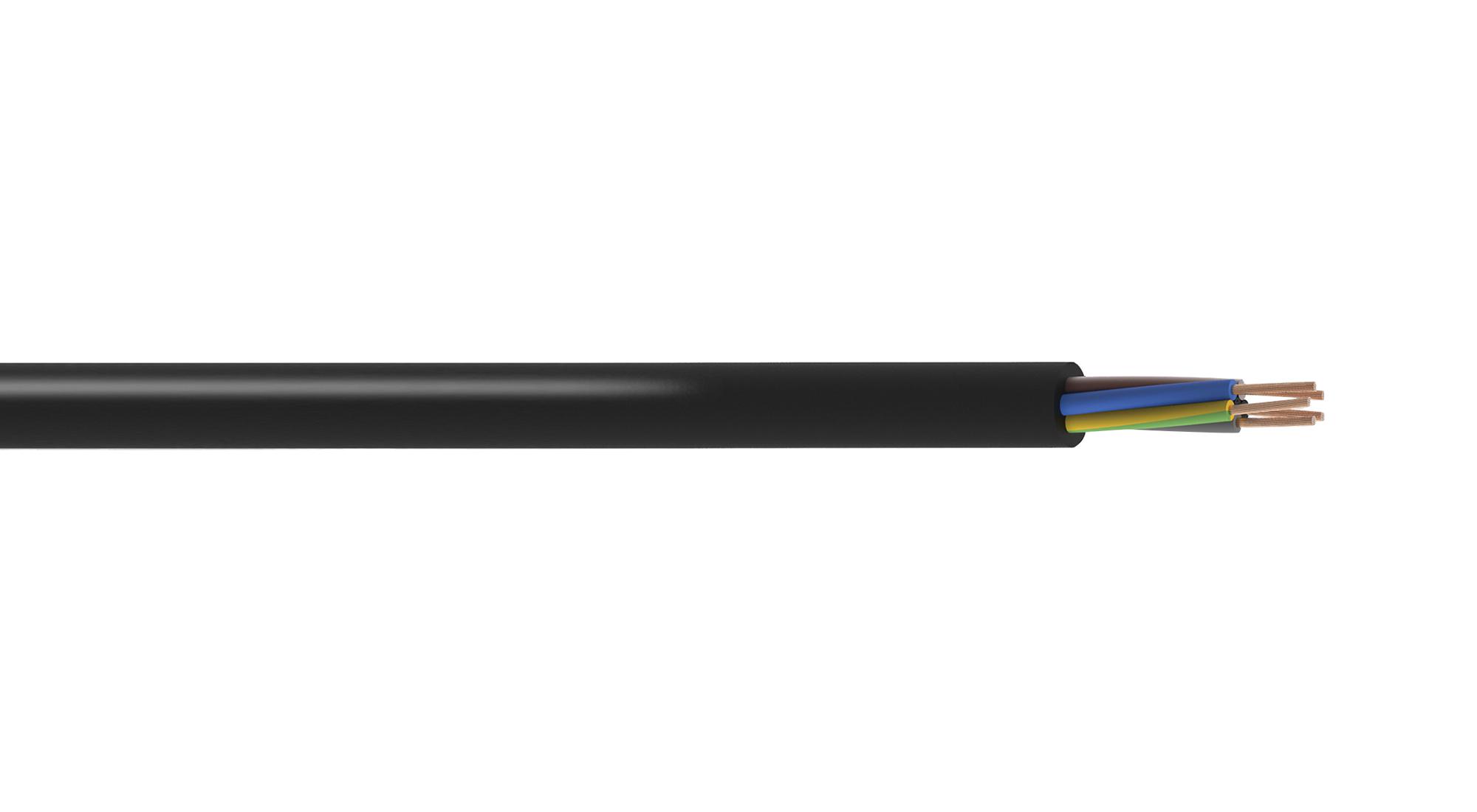

MULTICOMP PRO PP000953 Flexible Rubber Cable
Unscreened multicore flexible rubber cable designed for high flexibility, weather resistance, and thermal stresses. Suitable for industrial, construction, and outdoor applications including handling equipment, mobile power supplies, stage setups, and water treatment environments. Made in accordance with BS EN 50525-2-21 and other relevant standards, it features a flexible copper conductor, Ethylene Propylene Rubber insulation, and Polychloroprene sheath. Available in various cores and cross-sectional areas, this cable offers reliable performance with a voltage rating of 450/750V and temperature ratings up to +85°C for fixed installations and +60°C for flexible use.
MULTICOMP PRO PP000953 Flexible Rubber Cable Specifications:
- Conductor: Class 5 flexible copper conductor to BS EN 60228
- Insulation: Ethylene Propylene Rubber (EPR) Type El4 according to BS EN 50363
- Sheath: Polychloroprene (PCP) Type EM2 according to BS EN 50363
- Voltage Rating: 450/750V
- Temperature Rating: -30°C to +60°C fixed, -15°C to +60°C flexible, up to +85°C for protected installations
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 6 x overall diameter
- Core Identification: 3 cores (Green/Yellow, Blue, Brown), 4 cores, 5 cores and more (with color coding and numbering)
- Sheath Colour: Black
- Physical Dimensions: varies by part number, including insulation thickness, overall diameter, and weight, e.g., Part PP000953 has 14 mm insulation and 16.2 mm overall diameter
- Current Capacity: 25 mm² section can carry up to 20 A single-phase and 25 A three-phase, with support for various cross-sectional areas
- Voltage Drop: 45 mV/A/m for 1 mm², 19 mV/A/m for 2.5 mm², applicable across various cross sections
- Operating Temperature: conductor up to +85°C, ambient up to +40°C
Buy the Buy Multicomp Flexible Rubber Cable Part Number PP000953 Online
Experience the durability and versatility of the Multicomp flexible rubber cable PP000953. Designed for demanding industrial and outdoor applications, this cable provides excellent flexibility, weather resistance, and high thermal tolerance. Constructed with high-quality copper conductors, Ethylene Propylene Rubber insulation, and Polychloroprene sheath, it ensures safety and performance under severe conditions. Ideal for handling equipment, mobile power sources, stage lighting, and water treatment facilities, this cable supports reliable power delivery with a voltage rating of 450/750V and temperature ratings up to +85°C for fixed setups.
Buy Multicomp flexible rubber cable PP000953 now and ensure reliable, weather-resistant power transmission for industrial and outdoor environments.
