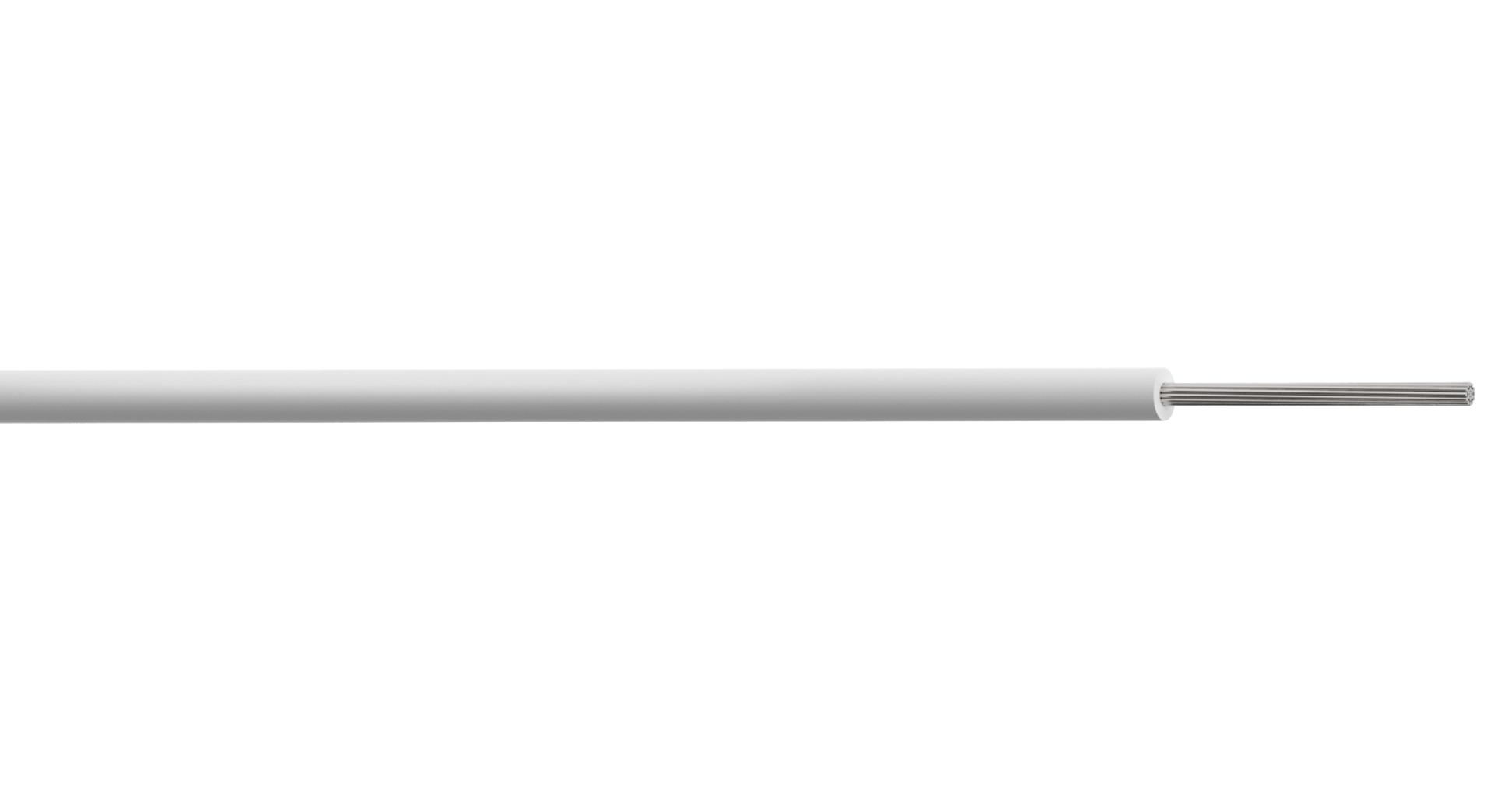

MULTICOMP-PRO PP001085 High Temperature Silicone Wire
High Temperature Silicone Wire is a flexible, heat-resistant cable designed for demanding environments, capable of withstanding up to 180°C. Constructed with Class 5 tinned copper conductors and silicone rubber insulation, this wire offers excellent durability and electrical performance. Suitable for industrial applications such as power plants, refrigeration, aerospace, and shipbuilding, it features multiple color options, low smoke zero halogen properties, and a minimum bending radius of 4 times the overall diameter, ensuring reliable performance in harsh conditions. The wire complies with BS EN 60228 standards and features a voltage rating of 300/500V depending on the cross-sectional area.
MULTICOMP-PRO PP001085 High Temperature Silicone Wire Specifications:
- Conductor: Class 5 flexible tinned copper according to BS EN 60228
- Insulation: Silicone rubber
- Voltage Rating: 300/500V depending on cross-section
- Temperature Range: -60°C to +180°C
- Min. Bending Radius: 4x overall diameter
- Sheath Colors: Blue, Brown, Green/Yellow, Black, Red, White, Grey, Purple, Yellow
- Sectional Area: 0.25mm² to 25mm²
- Overall Diameter: 1.8mm to 7.2mm depending on section
- Weight: 7kg/km to 34kg/km depending on section
- Conductor Resistance: 86Ω to 8.21Ω at 20°C
- Current Rating: 15A to 61A depending on section and temperature
- Reel Length: 100m
Buy the Buy Multicomp High Temperature Silicone Wire Part Number PP001085 Online
Purchase the reliable High Temperature Silicone Wire from Multicomp online today. Designed for tough environments, this flexible silicone insulated cable withstands temperatures up to 180°C and operates reliably in industrial, aerospace, and power applications. With multiple color options and low smoke zero halogen properties, this wire ensures safety and durability. Easy to install with a minimum bend radius of 4 times the diameter, it is essential for demanding electrical installations requiring high temperature resistance, long-lasting performance, and compliance with BS EN 60228 standards.
Order your Multicomp High Temperature Silicone Wire PP001085 today and ensure your industrial projects operate smoothly with reliable, heat-resistant wiring.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001085?
You can click on the BUY or RFQ button to purchase PP001085 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001085?
You can download the PP001085 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001085?
MULTICOMP-PRO
