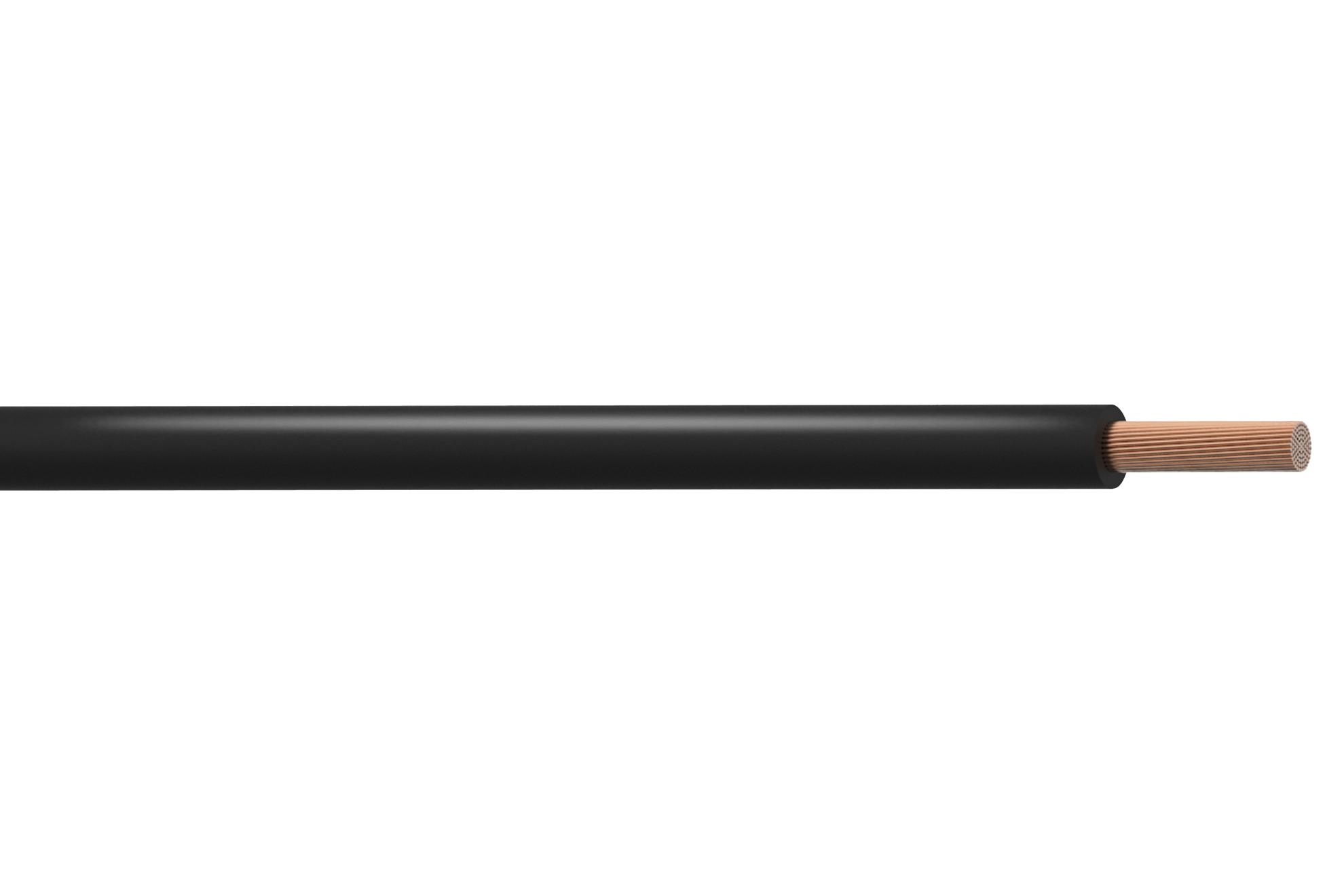

MULTICOMP PRO PP001194 flexible equipment wire
The cable is a 50-meter, tri-rated flexible equipment wire with a class 5 flexible copper conductor, compliant with BS EN 60228 (formerly BS 6360), and equipped with PVC type TI3 insulation according to BS EN 50363. Designed for high-temperature, flame-retardant applications, it is suitable for use in switch control, relay, and instrumentation panels of power switchgear. Additionally, it functions as an internal connector in rectifier equipment and controllers. It meets various standards including BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, and UL Subj 758, with a voltage rating of 450/750V and a maximum temperature of 105°C. The maximum conductor resistance is 0.78 ohms per kilometer at 20°C.
MULTICOMP PRO PP001194 flexible equipment wire Specifications:
- Cable Length: 50 m
- Nominal Cross-Sectional Area: 0.5 mm²
- Conductor: Class 5 flexible copper
- Insulation: PVC Type TI3 according to BS EN 50363
- Voltage Rating: 450/750V
- Temperature Rating: Up to +105°C
- Minimum Operating Temperature: -15°C
- Minimum Bending Radius: 6 x overall diameter
- Sheath Colour: Various (Black, Blue, Brown, etc.)
- Standards Compliance: BS EN 50525-2-31, BS 6231 Type CK, UL Subj.758, CSA C22.2 No. 210, BS EN/IEC 60332
- Physical and Technical: Maximum conductor resistance 0.78 ohms/km at 20°C, flexible copper conductor, complies with international safety standards
Buy the Multicomp Series Power Cable: PP001194
Order the Multicomp flexible equipment wire online today to ensure your industrial and control system connections are reliable, safe, and compliant with international standards. With a length of 50 meters, a high-temperature PVC insulation, and a Class 5 copper conductor, this cable is perfect for switchgear, relays, and instrumentation panels. Its UL, CSA, and IEC certifications guarantee quality and safety, making it an excellent choice for demanding electrical applications. Purchase now for fast delivery and competitive pricing to support your project requirements.
Buy Multicomp PP001194 now and experience unmatched reliability and high-temperature flame-retardant performance for industrial wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001194?
You can click on the BUY or RFQ button to purchase PP001194 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001194?
You can download the PP001194 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001194?
MULTICOMP PRO
