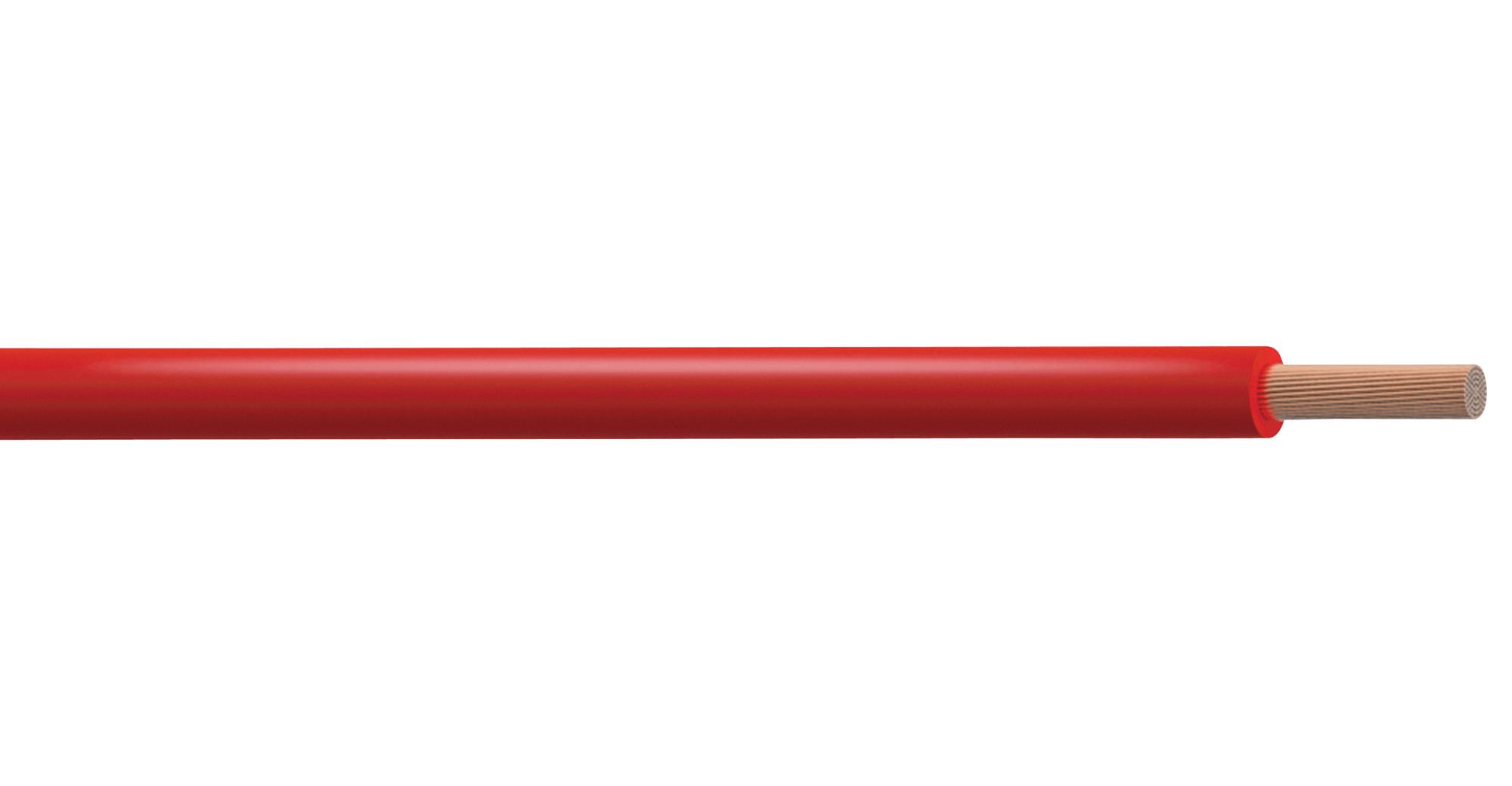

MULTICOMP-PRO PP001276 Flex Equipment Wire
The PP001276 is a 100-meter length of tri-rated flexible equipment wire featuring a Class 5 copper conductor compliant with BS EN 60228 (formerly BS 6360). It is insulated with PVC Type TI3 according to BS EN 50363. This high-temperature, flame-retardant wire is designed for use in switch control, relay, and instrumentation panels of power switchgear, as well as for internal wiring in rectifier equipment and controllers. It adheres to multiple standards including BS 6231 Type CK, BS EN 50525-2-31, and BS EN/IEC 60332 for cable safety and performance. The wire has a voltage rating of 450/750V and a maximum temperature rating of 105°C. Its maximum conductor resistance at 20°C is 1.91 Ω/km. Suitable for industrial, motor drive, and control applications.
MULTICOMP-PRO PP001276 Flex Equipment Wire Specifications:
- Conductor: Class 5 flexible copper
- Insulation: PVC Type TI3
- Standards: BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332
- Voltage Rating: 450/750V
- Temperature Rating: Up to +105°C
- Minimum Temperature: -15°C
- Maximum Conductor Resistance at 20°C: 1.91 Ω/km
- Sheath Colour: Various including Black, Blue, Green/Yellow, etc.
- Reel Length: 100 meters or per meter
- Bending Radius: 6 x overall diameter
Buy the Multicomp Series Flexibility PVC Equipment Wire: PP001276
Purchase the high-performance multicomp series flexible PVC equipment wire PP001276 online today. Perfect for control panels, relays, and motor starters, this flame-retardant, high-temperature wire ensures reliable connections and safety compliance in industrial environments. Available in 100-meter reels or in per-meter options, it features a flexible copper conductor, PVC insulation, and a voltage rating of 450/750V. Ensure long-lasting durability and optimal performance with this premium electrical wire designed for demanding control and power applications.
Get Multicomp Series PP001276 today—built for high-temperature control and industrial wiring durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001276?
You can click on the BUY or RFQ button to purchase PP001276 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001276?
You can download the PP001276 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001276?
MULTICOMP-PRO
