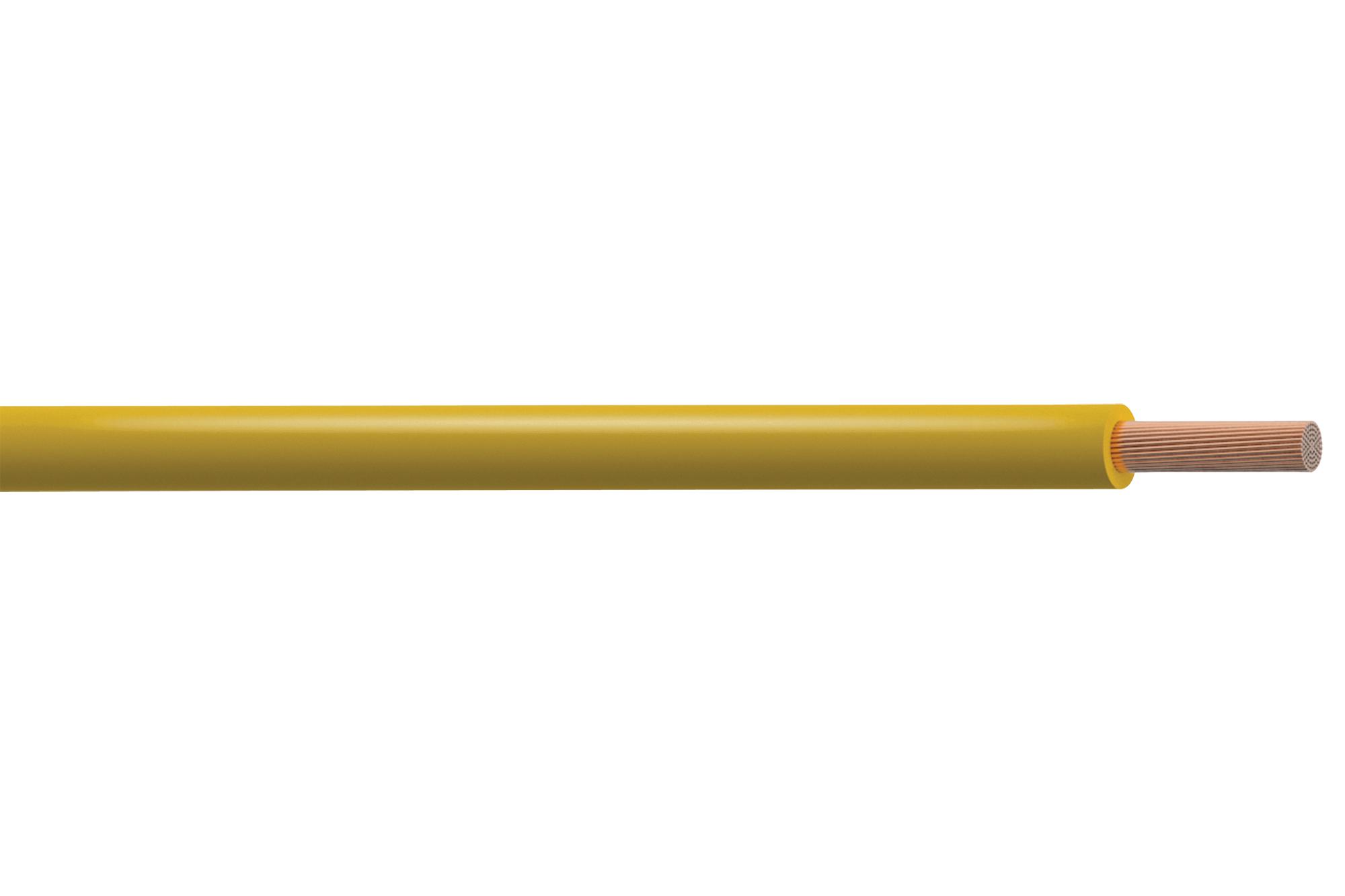

MULTICOMP PRO PP001296 Flexible Control Cable
This is a high-quality flexible copper conductor cable designed for industrial control and power applications. Made with Class 5 copper conductors and PVC Type TI3 insulation, it complies with BS EN 60228 standards. The cable features flame retardant properties according to IEC 60332 and meets international standards, including BS 6231 Type CK, BS EN 50525-2-31, CSA C22.2 No. 210, and UL Subj 758. Rated for 450/750V and up to 105°C, it is ideal for switchgear, motor starters, relays, and instrumentation panels, ensuring safety and durability in demanding environments.
MULTICOMP PRO PP001296 Flexible Control Cable Specifications:
- Conductor Material: Class 5 flexible copper
- Insulation: PVC Type TI3
- Standards: BS 6231 Type CK, BS EN 50525-2-31, IEC 60332, BS EN 60228, CSA C22.2 No. 210, UL Subj 758
- Voltage Rating: 450/750V
- Temperature Rating: Up to 105°C
- Flame Retardant: IEC 60332 compliant
- Minimum Operating Temp: -15°C
- Maximum Operating Temp: +105°C
- Bending Radius: 6 x overall diameter
- Reel Length Options: 50 m, 100 m, 500 m
- Sheath Colors: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Made in accordance with BS EN 50525-2-31, BS 6231, UL, CSA
- Rated for use in switchgear, control panels, relays, instrumentation equipment, motor starters
- Physical Dimensions: Varies per size, detailed in product data, with conductor sizes from 0.5 mm2 to 25 mm2, AWG equivalent specified
Buy the Buy Multicomp Pro Flexible PVC Equipment Wire Part Number PP001296 Online
Enhance your industrial control systems with the reliable and flame retardant flexible control cable available online. Made with high-quality copper conductors and durable PVC insulation, this cable is rated for 450/750V and withstands temperatures up to 105°C. Suitable for switchgear, relay panels, and instrumentation, it meets international safety standards. Available in various lengths, it ensures easy installation and long-lasting performance. Purchase now to ensure your machinery operates safely and efficiently with top-quality wiring solutions designed for demanding industrial environments.
Buy Multicomp Pro PP001296 now and experience unmatched reliability and high-temperature performance in industrial applications.
