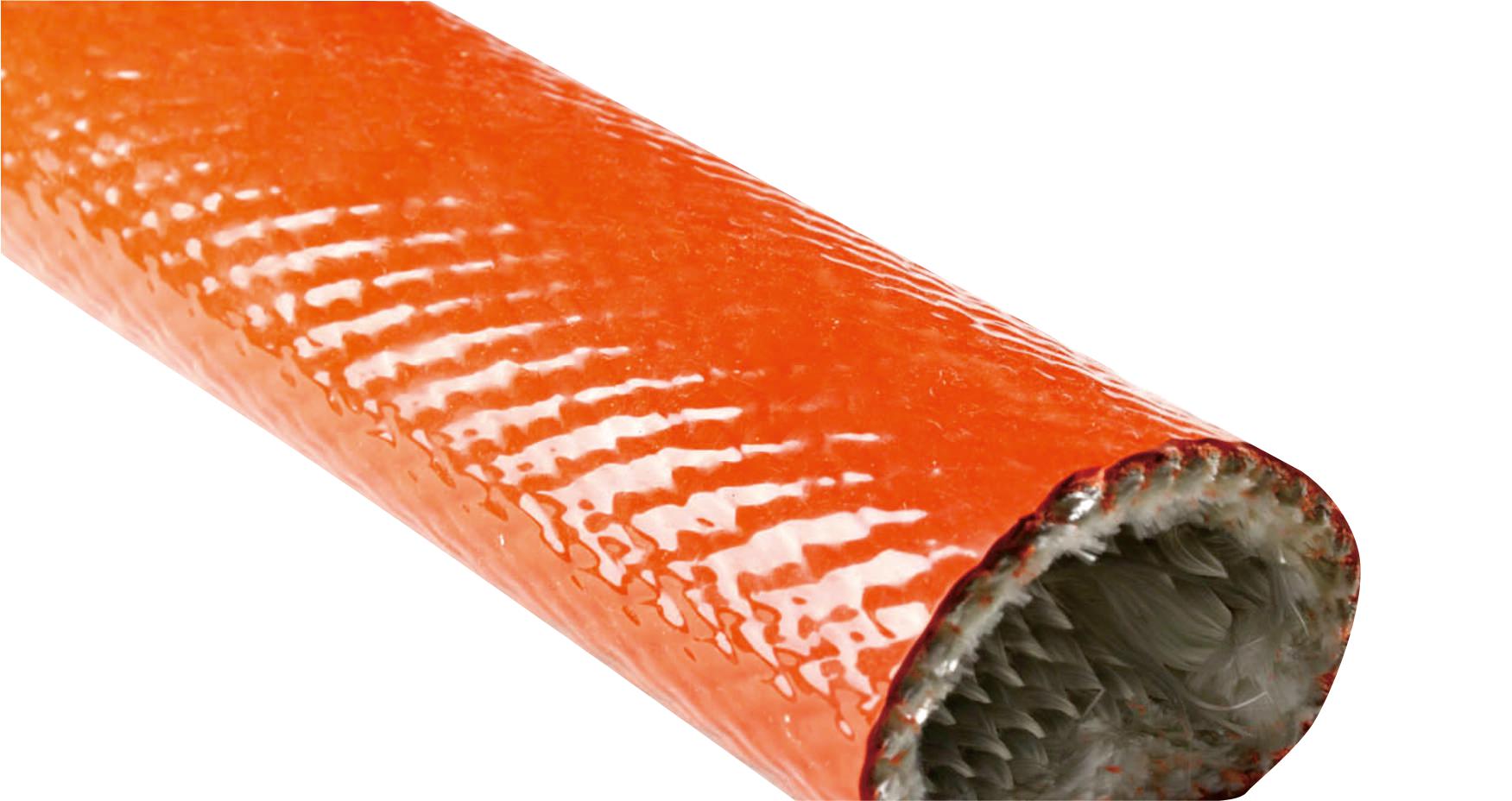

MULTICOMP-PRO PP001440 Fireproof Sleeving

The Multicomp PP001440 fireproof sleeving is made from dense E-class fiberglass with a high-temperature silicone rubber coating. Designed to protect hoses, cables, and wire harnesses from extreme heat, open flames, and molten splashes, it offers excellent insulation and abrasion resistance. Suitable for use in aerospace and marine applications, it safeguards critical systems such as fuel, hydraulic, and oil lines, extending their lifespan in high-temperature environments. The sleeving measures 60mm internally and 70mm externally in diameter, with a length of 20 meters and a wall thickness of 4.5mm. It withstands temperatures up to 1150°C instantaneously, operates within -50°C to +500°C, and complies with VW-1 flammability standards. The standard color is brick red, with a voltage rating of 7KV. This product is rated 4.6 out of 5 stars, comes with a 12-month warranty, and is easily cut with scissors.

Source
Part No:
Stock:
Inv Date:
Price:
Buy/RFQ:
No results.

MULTICOMP-PRO PP001440 Fireproof Sleeving Specifications:

  • Sleeving Material: Fiberglass Fiber
  • Coating Material: Silicone
  • Instantaneous Temperature: 1,150°C
  • Operating Temperature: -50°C to +500°C
  • Flammability: VW-1
  • Color: Red
  • Voltage: 7kV
  • Inner Diameter: 60mm
  • Outer Diameter: 70mm
  • Wall Thickness: 4.5mm
  • Length: 20m
  • Part Number: PP001440

Buy the Buy Multicomp Fireproof Sleeving Part Number PP001440 Online

Secure your high-temperature insulation needs with the Multicomp fireproof sleeving. Made from dense fiberglass with a silicone rubber coating, it offers excellent heat and flame resistance up to 1150°C, safeguarding hoses, cables, and wiring in aerospace and marine environments. Measuring 60mm internally and 70mm externally in diameter with a 20-meter length and 4.5mm wall thickness, this sleeving provides robust insulation and abrasion resistance. Easy to cut with scissors, it’s ideal for critical system protection, rated for 7KV voltage, and compliant with VW-1 standards.

Buy Multicomp fireproof sleeving PP001440 now and experience unmatched heat resistance and durability for critical aerospace and marine applications.

Frequently Asked Questions

Where can I buy MULTICOMP-PRO PP001440?

You can click on the BUY or RFQ button to purchase PP001440 from an authorized MULTICOMP-PRO distributor.

How do I troubleshoot issues or seek technical support for part PP001440?

You can download the PP001440 datasheet or visit the MULTICOMP-PRO website for support.

Who is the manufacturer of PP001440?

MULTICOMP-PRO
