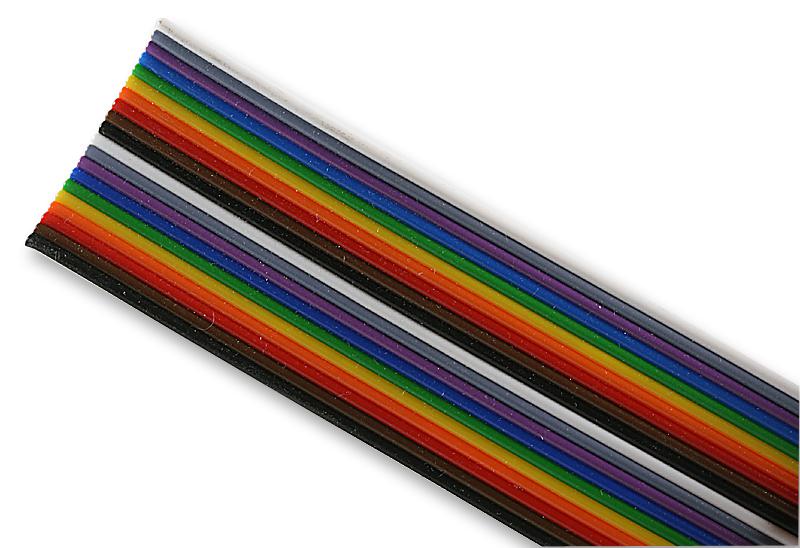

MULTICOMP PRO PP001506 Flat Ribbon Cable
The Flat Ribbon Cable Pro-POWER is a high-quality, 20-core, 24 AWG cable suitable for internal wiring of appliances and electronic devices. Constructed with tinned copper conductors and insulated with 105°C PVC, it offers excellent electrical performance. Rated for 300V, with a temperature range of -20°C to +105°C, the cable provides low resistance, high tensile strength, and durability under aging conditions. Its flexible design and color-coded insulation make it ideal for complex electronic wiring applications, ensuring reliable connectivity and ease of installation.
MULTICOMP PRO PP001506 Flat Ribbon Cable Specifications:
- Rated Voltage: 300V
- Temperature Rating: -20°C to +105°C
- Number of Cores: 20
- Conductor Size: 124 AWG
- Construction: 7/0.2 mm tinned copper
- Conductor Diameter: 0.61 mm +0.05 mm
- Insulation Material: 105°C PVC
- Insulation Thickness: 0.33 mm (Min.), 0.38 mm (Avg.)
- Pitch: 21.4 mm ± 0.15 mm
- Conductor Resistance: 93.2 Ω/km at 20°C
- Tensile Strength (Unaged): 1500 PSI Min
- Elongation (Unaged): 100% Min
- Elongation (Aged): Residual rate 65% Min
- Additional Colours: Brown, Red, Orange, Yellow, Green, Blue, Purple, Grey, White, Black
Buy the Buy Pro-POWER Flat Ribbon Cable Part Number PP001506 Online
Purchase the Pro-POWER Flat Ribbon Cable PP001506 online today and ensure your electronic wiring projects benefit from high-quality Tinned Copper conductors and robust PVC insulation. This 20-core cable is ideal for internal appliance wiring, offering excellent electrical performance, flexibility, and durability within a temperature range of -20°C to +105°C. Its reliable specifications, low resistance, and color-coded features enable easy installation and maintenance. Order now to streamline your electronic assemblies with this trusted, UL-compliant cable designed for long-lasting performance and safety.
Buy Pro-POWER flat ribbon cable PP001506 now and experience reliable connectivity with durable PVC insulation suitable for electronic appliances and wiring projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001506?
You can click on the BUY or RFQ button to purchase PP001506 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001506?
You can download the PP001506 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001506?
MULTICOMP PRO
