MULTICOMP-PRO PP001524 Flexible PUR Multicore Cable

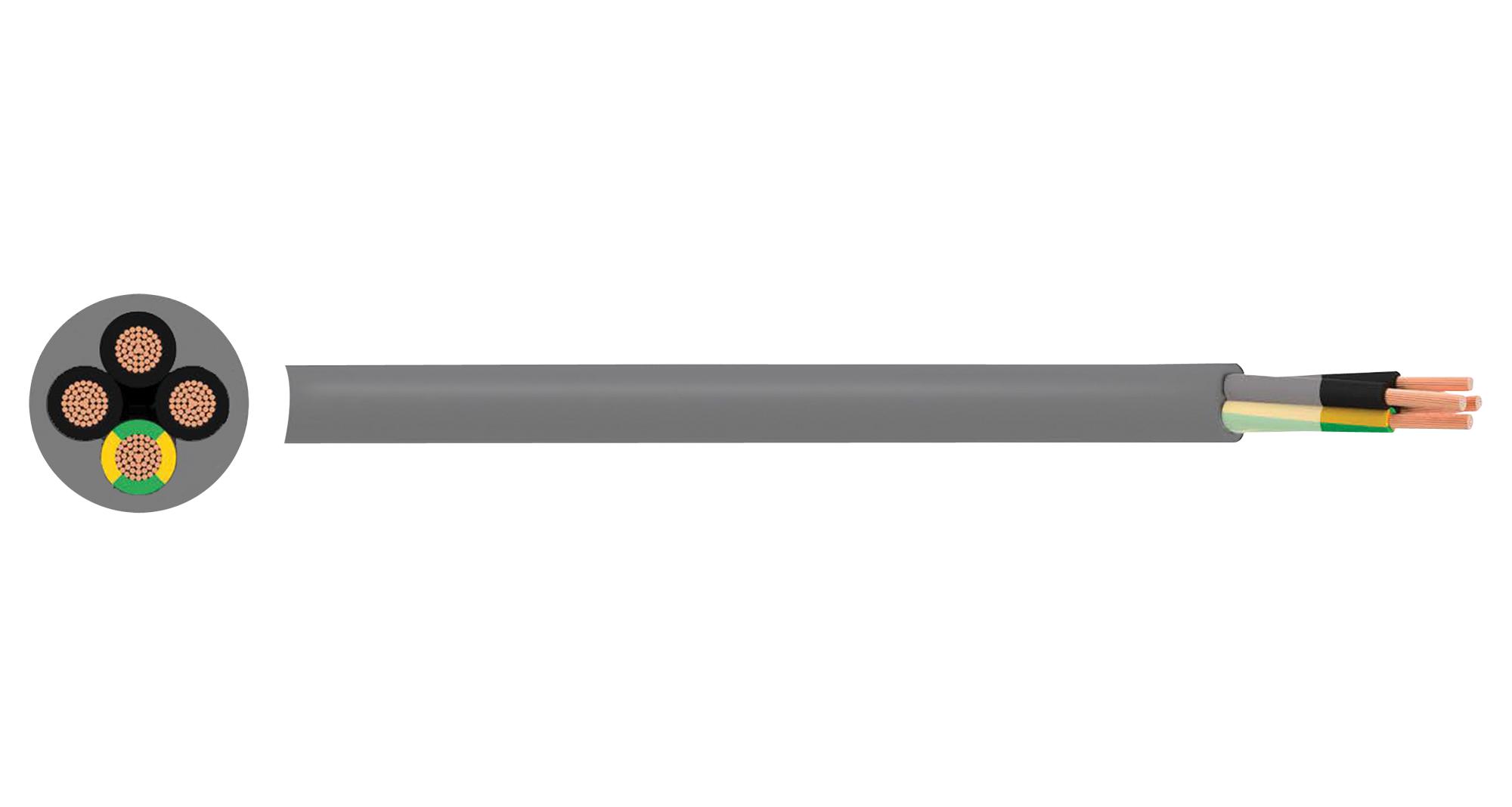

Flexible polyurethane multicore cable suitable for tooling machinery, production lines, and flexible applications involving free movement and low tensile load. Resistant to oil, chemicals, abrasion, and mechanical stress, it performs well in indoor and outdoor fixed installations in dry, ambient, and wet environments. With a voltage rating of 300/500V and test voltage of 2 4kV, it endures temperatures from -40°C to +80°C fixed and -5°C to +70°C flexed. Its construction features Class 5 copper conductors, PVC insulation, non-woven polyester separators, and PUR sheathing. Compliant with RoHS and various standards, it offers reliable performance for industrial wiring needs.
MULTICOMP-PRO PP001524 Flexible PUR Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 10 x overall diameter
- Conductor Material: Class 5 flexible plain copper wires
- Insulation Material: PVC (Polyvinyl Chloride)
- Sheath Material: PUR (Polyurethane)
- Core Identification: Black with white number + Green/Yellow
- Dimensions vary by part number, with cross-sectional areas from 0.75 mm² to 25 mm², overall diameters approximately 5.8 to 14.9 mm, weight from 53 to 430 kg/km
- RoHS compliant, meets VDE standards, tested by UKAS accredited lab
Buy the Industrial Cable PP001524 – Reliable Flexible PUR Multicore for Industrial Applications
Secure your project with the premium quality flexible PUR multicore cable available online. Designed for industrial machinery, production lines, and outdoor fixed installations, this cable offers exceptional resistance to oil, chemicals, abrasion, and mechanical stress. Its flexible design ensures easy handling and installation, while complying with RoHS and safety standards. Choose from various sizes, all tested for durability and performance. Order now to benefit from fast delivery and reliable wiring solutions tailored for demanding industrial environments.
Order your multicomp series PP001524 flexible PUR multicore cable today and enhance your industrial wiring with trusted performance and durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001524?
You can click on the BUY or RFQ button to purchase PP001524 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001524?
You can download the PP001524 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001524?
MULTICOMP-PRO
