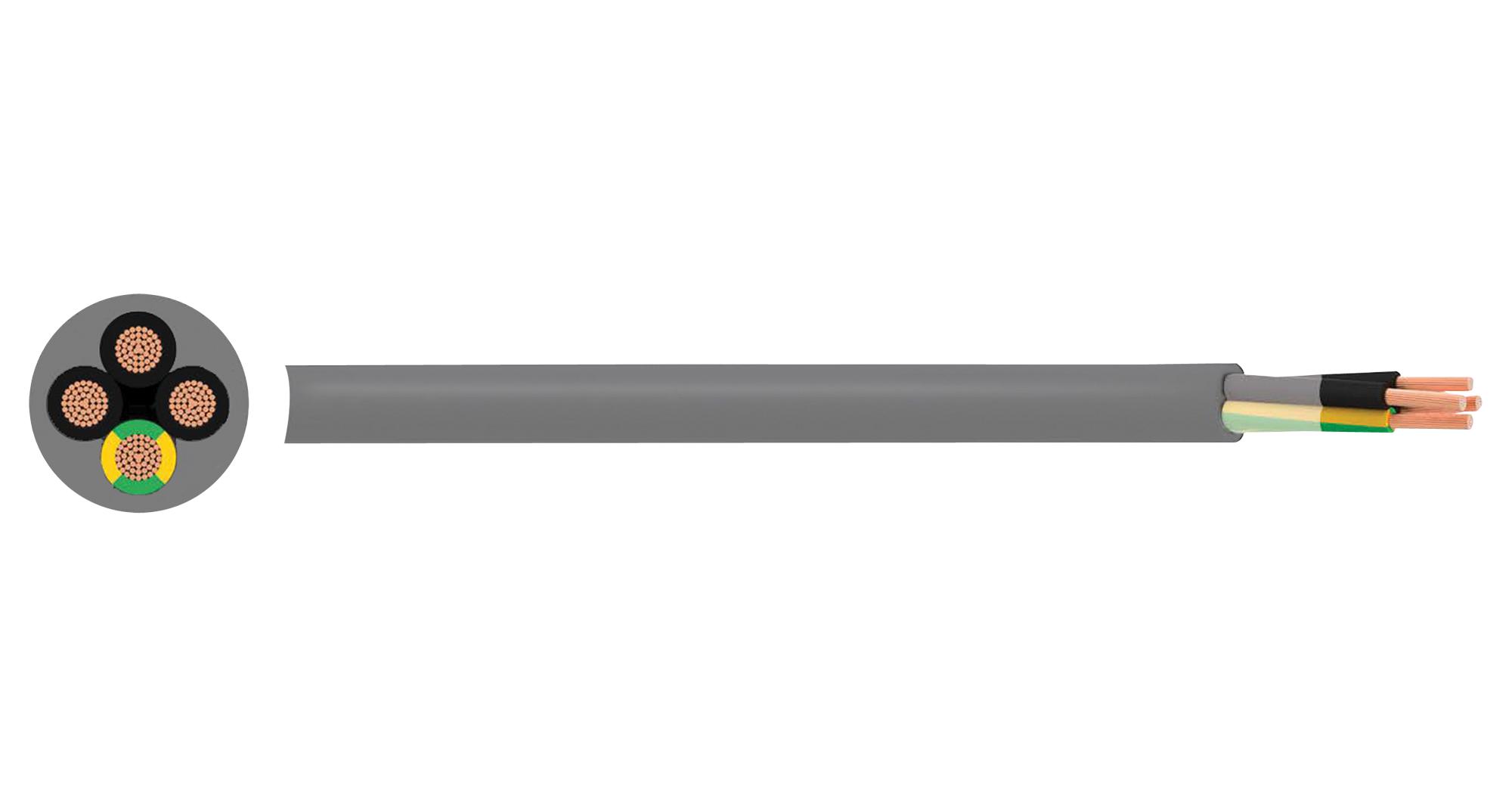

MULTICOMP-PRO PP001529 Flexible Multicore Cable
Flexible polyurethane multicore cable designed for versatile applications including tooling machinery and production lines. It features a PVC insulation with a PUR sheath, complying with RoHS standards and tested for quality assurance by UKAS accredited labs. Suitable for dry, ambient, and wet environments, it offers resistance to oil, chemicals, abrasion, and mechanical stress, making it ideal for outdoor fixed installations. The cable supports voltage ratings up to 300/500V, with detailed specifications on dimensions, conductor material, and environmental suitability ensuring reliable performance in demanding industrial settings.
MULTICOMP-PRO PP001529 Flexible Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 10 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Sheath: PUR (Polyurethane)
- Core Identification: Black with white number + Green/Yellow
- Core Diameter: varies from 0.75 mm² to 25 mm² depending on part number
- Sheath Colour: Grey
- Compliance: RoHS, Low Voltage Directive 2014/35/EU, BS RoHS Trusted Kitemark™
- Standards: VDE 0295, VDE 0293-334, VDE 0293-308, VDE 0285-525-1, VDE 0285-525-2-51
- Tested for durability, flame, tensile, and dimensional standards
- Maximum resistance: 7.98KΩ for 25 mm² conductor at 20°C
- Current Capacity: 12A for 0.75 mm², 15A for 1 mm², 18A for 1.5 mm², 26A for 25 mm²
- Weight per km: Ranges from 53 kg to 430 kg depending on size
- Physical Dimensions: Diameter varies from 5.8 mm to 14.9 mm depending on size
Buy the Buy Multicore Polyurethane Cable Part Number PP001529 Online
Purchase the high-quality flexible multicore cable PP001529 online today for robust performance in demanding industrial environments. Designed with a durable PUR sheath and PVC insulation, it provides excellent chemical resistance, flexibility, and environmental durability for outdoor and fixed installations. Suitable for machinery, production lines, or any application requiring flexible, reliable wiring, this cable meets RoHS standards and is tested for safety and durability. Get your order now and ensure safe, efficient electrical connections in your projects.
Order your multicore polyurethane cable PP001529 today and ensure reliable performance for your industrial and outdoor electrical projects.
