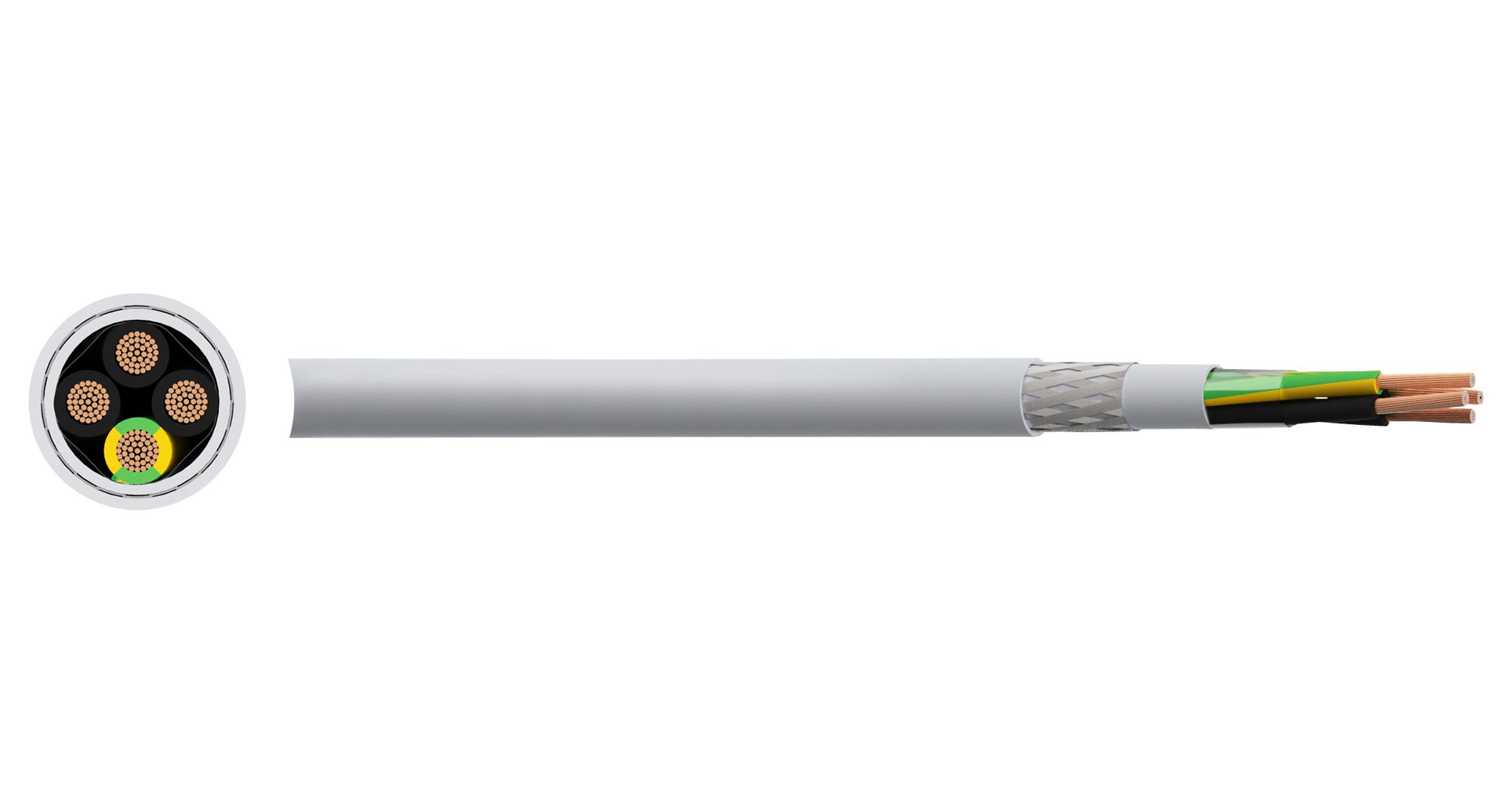

MULTICOMP PRO PP001533 Flexible Screened Control Cable
This flexible screened bedding cable is designed for mechanical engineering, control systems, instrumentation, and machinery production lines. It features LSZH insulation and sheath for low smoke and halogen-free environment, with a tinned copper wire braid screen for external interference protection. Rated for 300/500V with a test voltage of 2kV, it withstands temperatures from -40°C to +80°C when fixed and -15°C to +70°C when flexed. Its durable construction ensures mechanical protection and reliable performance in dry, moist, and wet rooms, suitable for flexible applications requiring movement without tensile load.
MULTICOMP PRO PP001533 Flexible Screened Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -15°C to +70°C
- Minimum Bending Radius: Fixed: 6 x overall diameter, Moved: 15 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: LSZH (Low Smoke Zero Halogen)
- Bedding: LSZH
- Screen: Tinned Copper Wire Braid
- Sheath: LSZH
- Core Identification: Black with white number; Green/Yellow for earth/ground
- Dimensions: Nominal cross-sectional areas from 0.5 mm² to 1.5 mm², overall diameters from 6.8 mm to 17 mm, weights from 77 kg/km to 569 kg/km
- Construction: Copper conductor, LSZH insulation and sheath, tinned copper braid screen
- Standards: VDE 0295, IEC 60332-3-24 compliance, RoHS compliant, UKAS tested
Buy the Buy Durable Flexible Screened Control Cable Part Number PP001533 Online
Purchase the flexible screened control cable PP001533 online for your industrial control systems and machinery. With LSZH insulation, braid shielding, and rated for 300/500V, it offers excellent mechanical and electrical protection in dry, moist, and wet environments. Its robust construction ensures high flexibility, durability, and compliance with safety standards like IEC 60332-3-24. Ideal for use in automation, instrumentation, and control applications requiring high performance, low smoke emissions, and halogen-free materials, making installation safe and efficient.
Buy Multicomp Pro flexible screened control cable PP001533 now and ensure reliable performance in industrial and machinery control applications.
