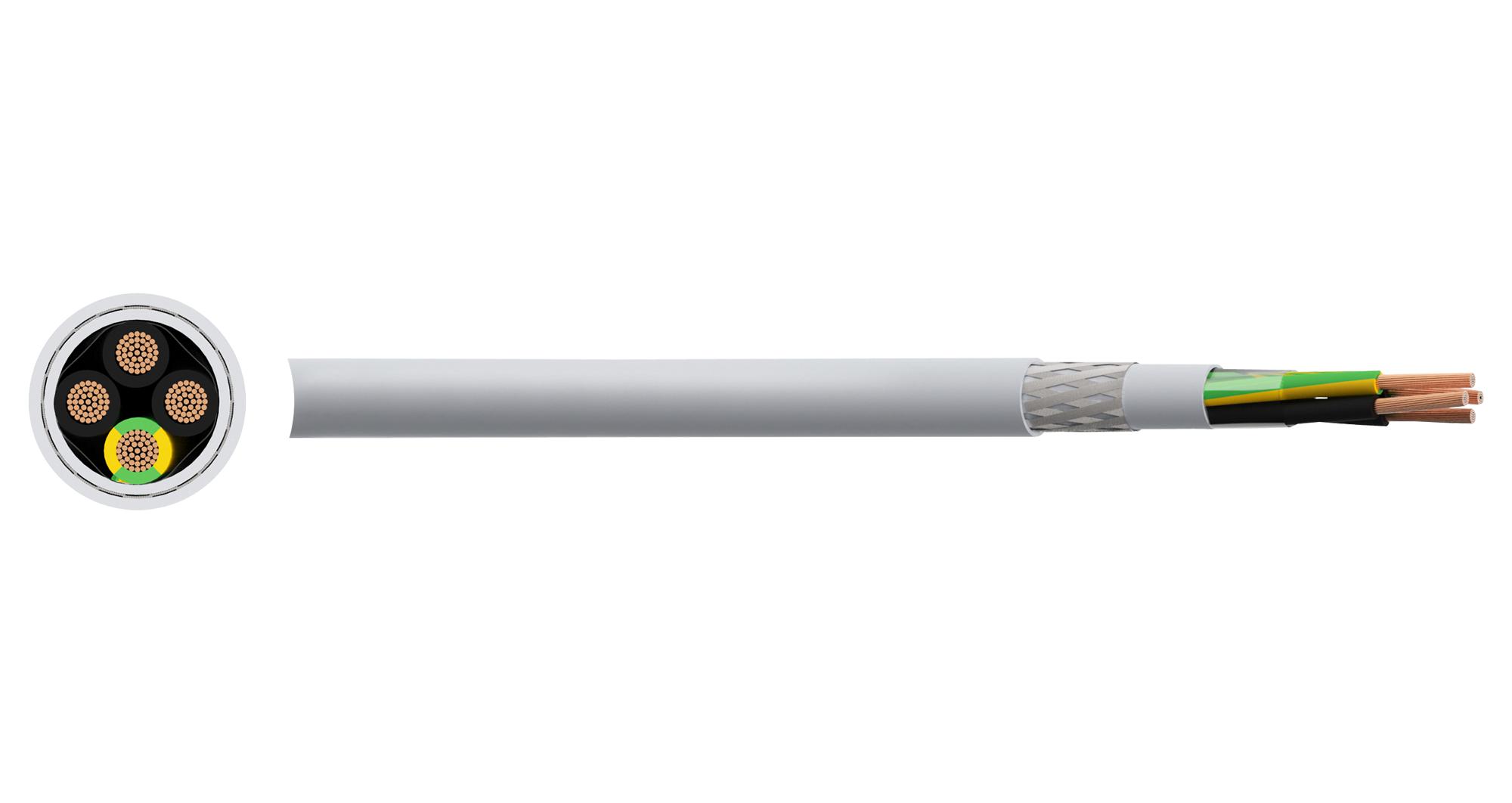

MULTICOMP-PRO PP001535 Flexible Screened Cable
Flexible screened bedding cable designed for mechanical engineering, instrumentation, and control applications. It features LSZH insulation, a tinned copper wire braid screen, and a low smoke zero halogen sheath, ensuring safety and durability. Suitable for dry, moist, and wet environments with flexible applications that allow free movement without tensile load. The cable complies with international standards, boasts a voltage rating of 300/500V, and includes various core configurations with black and white color coding. Ideal for machinery production lines and control systems requiring reliable signal and power transmission.
MULTICOMP-PRO PP001535 Flexible Screened Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -15°C to +70°C
- Minimum Bending Radius: Fixed 6 x overall diameter, Moved 15 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: LSZH (Low Smoke Zero Halogen)
- Screen: Tinned Copper Wire Braid
- Sheath: LSZH (Low Smoke Zero Halogen)
- Core Identification: Black with white number, green/yellow for phases
- Dimensions: Diameter varies from 6.8 mm to 17 mm depending on core count, weight ranges from 77 kg/km to 569 kg/km
- Standards: VDE 0295, IEC 60332-3-24, IEC 61034-2, RoHS compliant
- Applications: Mechanical engineering, instrumentation, control equipment, tooling machinery production
- Construction: Copper conductor, LSZH insulation, braid screen, LSZH outer sheath
Buy the Generic PP001535 – Reliable Flexible Screened Cables for Industrial Applications
Order the high-quality flexible screened bedding cable online today for your industrial needs. Designed for mechanical engineering, instrumentation, and control applications, this cable offers excellent flexibility, durable LSZH insulation, and a tinned copper braid screen to protect against external interference. Suitable for dry, moist, and wet environments, it complies with international standards and RoHS regulations. Experience reliable performance and safety with our trusted multicore cables. Purchase now for fast delivery and competitive pricing to enhance your machinery and control system projects.
Buy Multicomp Pro flexible screened bedding cable now and ensure safe, reliable power and signal transmission in your machinery and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001535?
You can click on the BUY or RFQ button to purchase PP001535 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001535?
You can download the PP001535 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001535?
MULTICOMP-PRO
