MULTICOMP PRO PP001536 Multicore Control Cable
This flexible screened and bedded LSZH multicore cable is designed for mechanical engineering, instrumentation, and control applications. It offers halogen-free construction, with LSZH insulation, bedding, and sheath for low smoke density and flame retardancy, suitable for dry, moist, and wet environments. The cable includes a tinned copper wire braid screen for external interference protection, and black cores with white numbers for easy identification. It’s compliant with RoHS and various safety standards, with a maximum voltage rating of 300/500V and tested for durability, flexibility, and electrical performance in demanding industrial settings.
MULTICOMP PRO PP001536 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -15°C to +70°C
- Minimum Bending Radius: Fixed 6 x overall diameter, Moved 15 x overall diameter
- Construction: Conductor Class 5 flexible plain copper wires, LSZH insulation and sheath, Tinned copper wire braid screen, Bedding LSZH
- Dimensions: Nominal cross-sectional areas range from 0.5 mm² to 4 mm², overall diameter varies with core count and section, typical weight 77-588 kg/km
- Standards: VDE 0295, VDE 0207-303-7, IEC 60332-3-24, IEC 61034-2, IEC 60754-1/2, RoHS compliant
- Electrical: Current capacities range from 9A for 0.5mm² to 26A for 2.5mm², resistance varies with cross-sectional area, maximum resistance 13.3Ω/km for 1.5mm²
- Compliance: Meets Low Voltage Directive 2014/35/EU, RoHS 2011/65/EU, UKAS tested for flame, tensile, conductor resistance, and dimensional standards

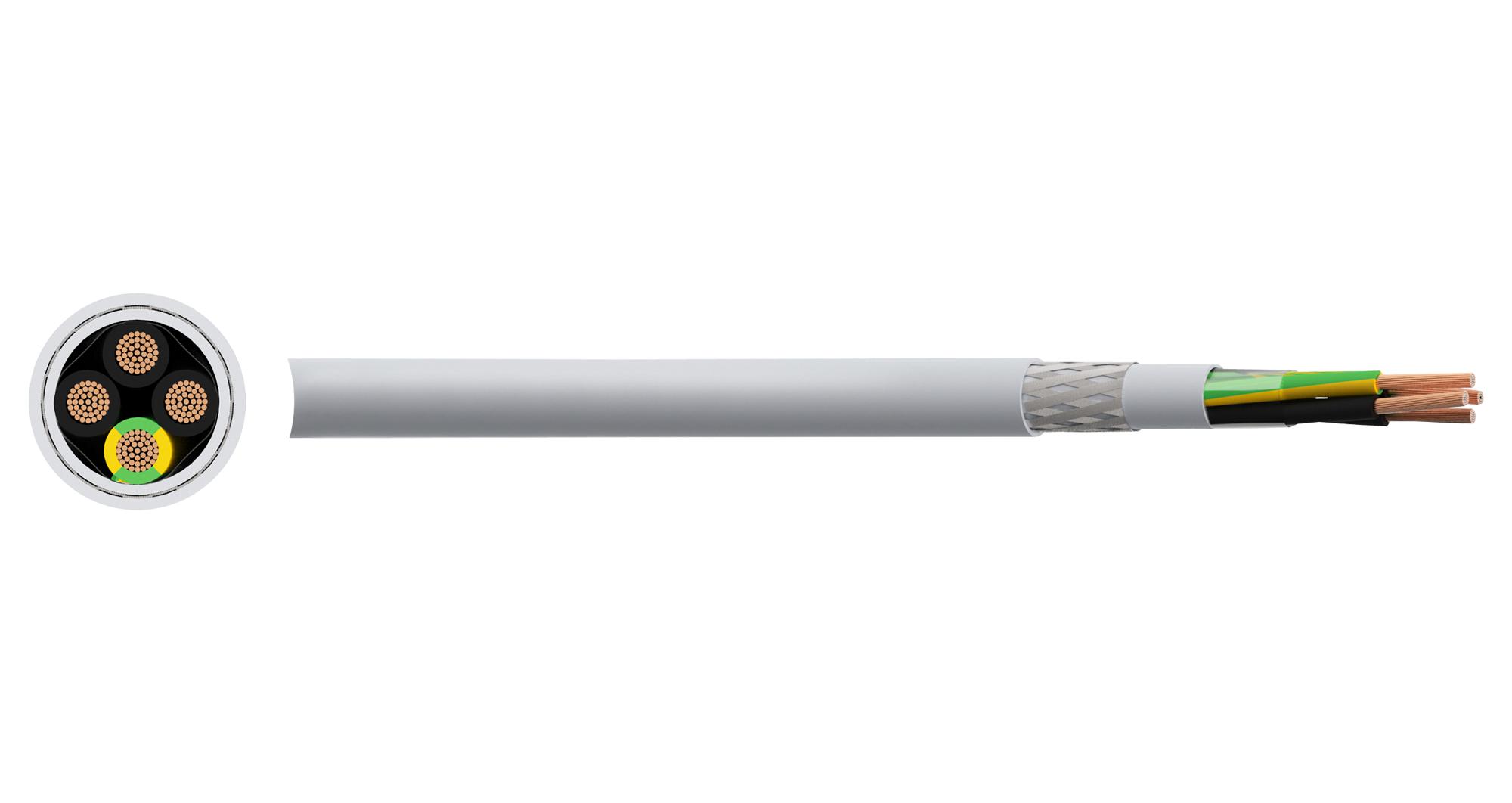

Buy the Buy Multicomp LSZH Multicore Cable Part Number PP001536 Online
Purchase the Multicomp LSZH Multicore Cable PP001536 online now to enjoy high-quality, halogen-free construction suited for mechanical engineering, instrumentation, and automation. Its flexible, screened design protects against external interference, providing reliable electrical performance in dry, moist, and wet environments. Compliant with RoHS and various safety standards, this cable is tested for durability, safety, and efficiency in demanding industrial settings. Get fast delivery and secure your control and power systems with ease and confidence today.
Order your Multicomp LSZH Multicore Cable PP001536 today and ensure reliable, flame-retardant power and control connections for industrial projects.
