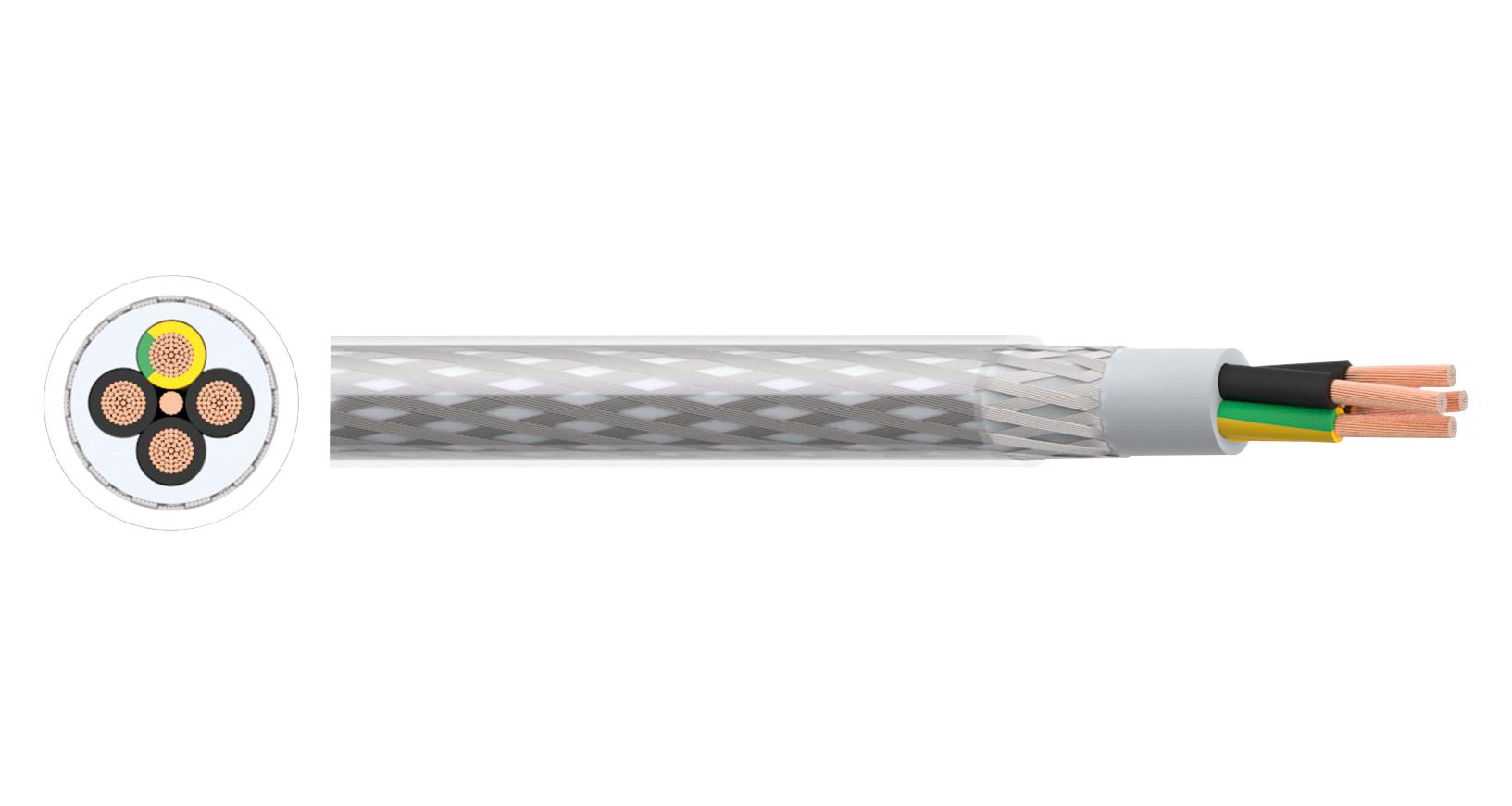

MULTICOMP-PRO PP001580 Multicore Control Cable
This flexible armoured control cable features multicore design with galvanised steel wire braid for mechanical protection and interference shielding, suitable for dry, moist, and wet room applications. Constructed with rigid PVC insulation, inner sheath, and PVC outer sheath, it includes cores identified with color codes like black with white numbers and green/yellow for grounding. Rated at 300/500V, it withstands temperatures from -40°C to +80°C fixed and -5°C to +70°C when flexed. It complies with RoHS, low voltage directive, and various VDE standards, ensuring reliable electrical performance and mechanical durability in industrial control environments.
MULTICOMP-PRO PP001580 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 12.5 x overall diameter
- Standards: VDE 0207-363-3, IEC 60332-1-2 flame retardant, UKAS tested
- Conductor: Class 5 flexible plain copper wires
- Insulation & sheath: PVC (Polyvinyl Chloride)
- Armour: Galvanised steel wire braid
- Core Identification: Black with white number, green/yellow for ground
- Construction: Multi-core, flexible, with galvanised steel wire braid, PVC insulation, inner sheath, and outer sheath
- Physical specs vary by part number, with core counts from 2 to 18, cross-sectional areas from 0.75 mm² to 25 mm², and overall diameters from approximately 7.2 mm to 16.8 mm.
Buy the Brand Name 5800 U+2013 Reliable Multicore Control Cable for Industrial Applications
Discover the reliable and flexible multicore control cable designed for industrial environments. Featuring galvanised steel wire braid for mechanical protection and interference shielding, PVC insulation and sheath, suitable for dry, moist, and wet rooms. Rated at 300/500V, it meets RoHS and various safety standards, ideal for control panels, machinery, and automation applications. Available in multiple core configurations with robust physical and electrical characteristics, this cable ensures long-lasting performance and safety. Order online now for quick delivery and trusted quality.
Order your Brand Name SeriesPP001580 flexible multicore control cable today and ensure your industrial control systems are protected and efficient.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001580?
You can click on the BUY or RFQ button to purchase PP001580 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001580?
You can download the PP001580 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001580?
MULTICOMP-PRO
