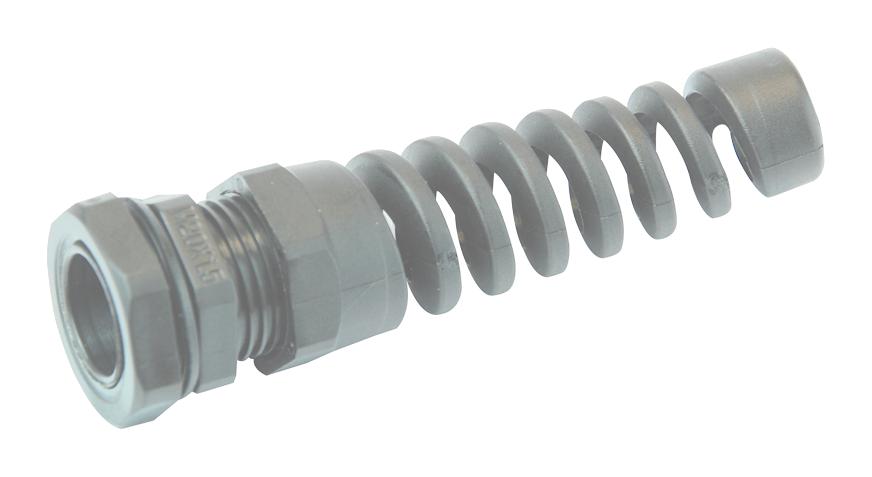

MULTICOMP PRO PP001694 Nylon Cable Gland
Nylon cable glands with strain relief designed for secure cable management in electrical enclosures. Made of durable PA (Nylon) with UL 94 V-2 rating, it offers hermetic sealing through NBR and an EPDM O-ring. Suitable for static temperatures from -40°C to 100°C and dynamic temperatures from -20°C to 80°C, with heat resistance up to 120°C and 100°C respectively. These glands feature an IP68 rating for high environmental protection, available in grey and black, and come with locking nut and sealing nut for secure installation, compatible with various cable sizes.
MULTICOMP PRO PP001694 Nylon Cable Gland Specifications:
- Material: PA (Nylon), UL 94 V-2
- Hermetic Seal: NBR
- O-Ring: EPDM
- Working Temperature: -40°C to 100°C in static state, -20°C to 80°C in dynamic state
- Instantaneous Heat Resistance: up to 120°C (static), up to 100°C (dynamic)
- IP Rating: IP68
- Color: Grey or Black
- Lock Nut, O-Ring, Body Seal, Sealing Nut included
- Dimensions vary by model, e.g., PG7: 54mm length, 8mm thread size, 16.5mm diameter; PG9: 63mm length, 8mm thread size, 19mm diameter; PG11: 78mm length, 8mm thread size, 22mm diameter; PG13.5: 90mm length, 9mm thread size, 24mm diameter; PG16: 100mm length, 10mm thread size, 27mm diameter; PG21: 114mm length, 11mm thread size, 33mm diameter.
Buy the Multicomp Series PG Nylon Cable Glands: PP001694
Secure your electrical installations with our durable nylon cable glands featuring strain relief, IP68 water protection, and high-temperature resistance. Perfect for static and dynamic environments, these glands ensure reliable sealing and cable management. Easy to install with locking and sealing nuts included, offering excellent environmental protection. Enhance safety and organization in your electrical systems by ordering these high-quality cable glands online now, and enjoy fast delivery and competitive prices tailored for professional technicians and electrical engineers.
Order your Multicomp Series PG Nylon Cable Glands PP001694 today and ensure secure, heat-resistant cable management for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001694?
You can click on the BUY or RFQ button to purchase PP001694 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001694?
You can download the PP001694 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001694?
MULTICOMP PRO
