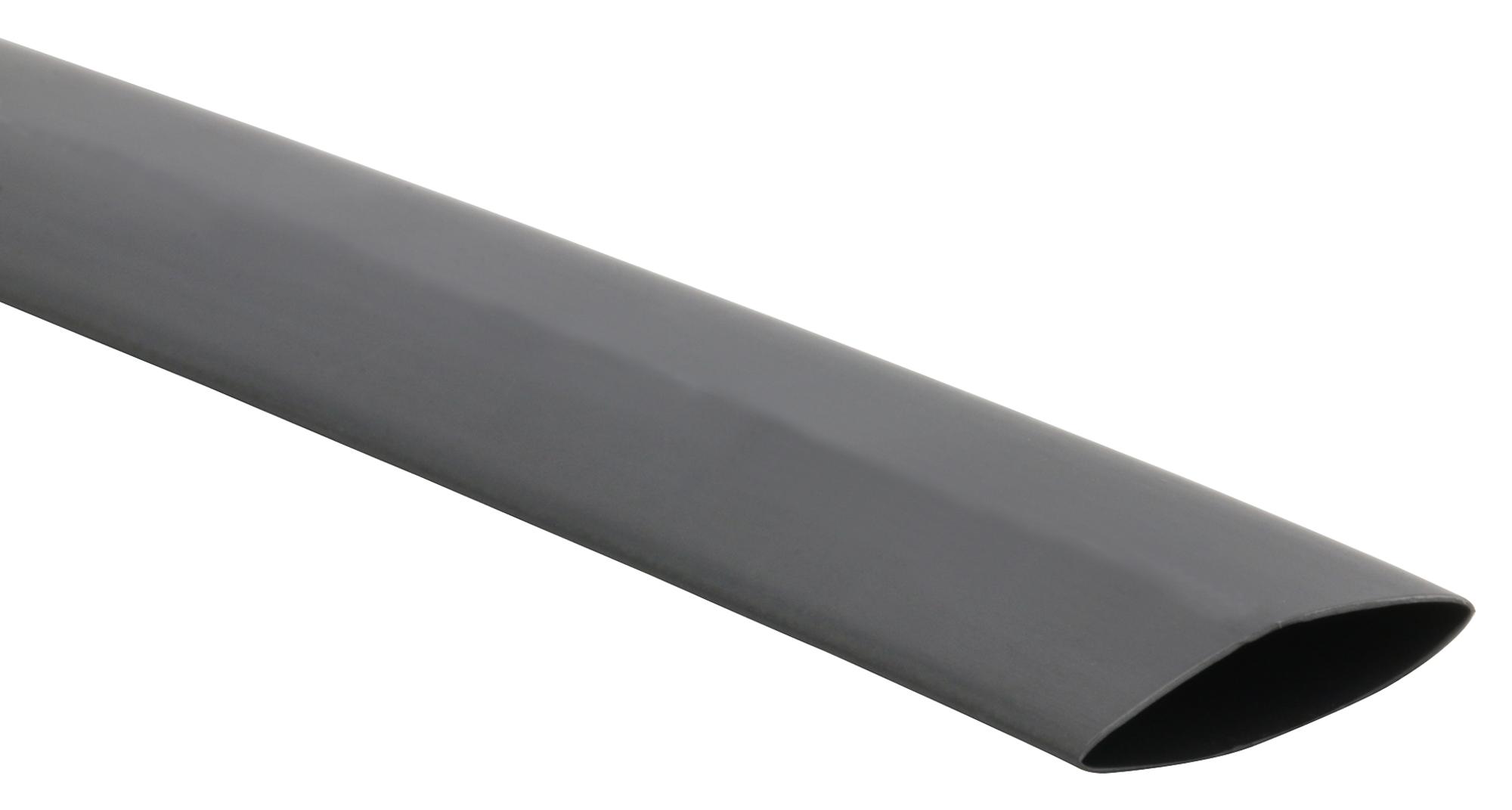

MULTICOMP-PRO PP001938 Heat Shrink Tubing
This heat shrink tubing is an environment-friendly, flexible, and highly flame-retardant polyolefin material suitable for electrical insulation and protection. It provides excellent resilience for inline components, disconnect terminals, and splices, making it ideal for both commercial and military applications. The tubing features a 2:1 shrink ratio, operates effectively from -55°C to +135°C, and resists common fluids and solvents. It meets UL224 VW-1 flame retardant standards and standards such as AMS-DTL-23053/5 class 1&3, ensuring durability and safety in demanding environments.
MULTICOMP-PRO PP001938 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Min. Shrink Temperature: 70°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Colours: Black and Natural
- Resistance: Resistant to common fluids and solvents
- Flammability: UL224 VW-1 Pass
- UL Standard: 224, 125°C, 600V
- Material: Polyolefin with high flame retardant properties
- Tensile Strength: 210.4 MPa (ASTM D 2671)
- Elongation: 2200% (ASTM D 2671)
- Dielectric Strength: 215 kV/mm (ASTM D 150)
- Volume Resistivity: 2.11 × 10^4 Q-cm (ASTM D 876)
- Approvals: UL, RoHS compliant, AMS-DTL-23053/5 class 1&3
- Dimensions: Varies with size, maximum internal diameter up to 19 mm, wall thickness 0.36 to 0.7 mm
- Product Lengths: 5m, 10m, 25m, 50m options depending on size
Buy the Buy DrO-POWER Heat Shrink Tubing Part Number PP001938 Online
Enhance your electrical insulation and protection with DrO-POWER heat shrink tubing, designed for commercial and military applications. This durable, flame-retardant polyolefin tubing offers a 2:1 shrink ratio and operates from -55°C to +135°C. It resists fluids and solvents, provides excellent resilience, and meets UL and RoHS standards. Available in multiple sizes and lengths, this versatile tubing ensures safe and reliable connections in any demanding environment. Purchase online today for fast, secure delivery and exceptional quality assurance.
Buy DrO-POWER PP001938 now and ensure high-quality insulation with superior flame retardant polyolefin heat shrink tubing for demanding electrical applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001938?
You can click on the BUY or RFQ button to purchase PP001938 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001938?
You can download the PP001938 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001938?
MULTICOMP-PRO
