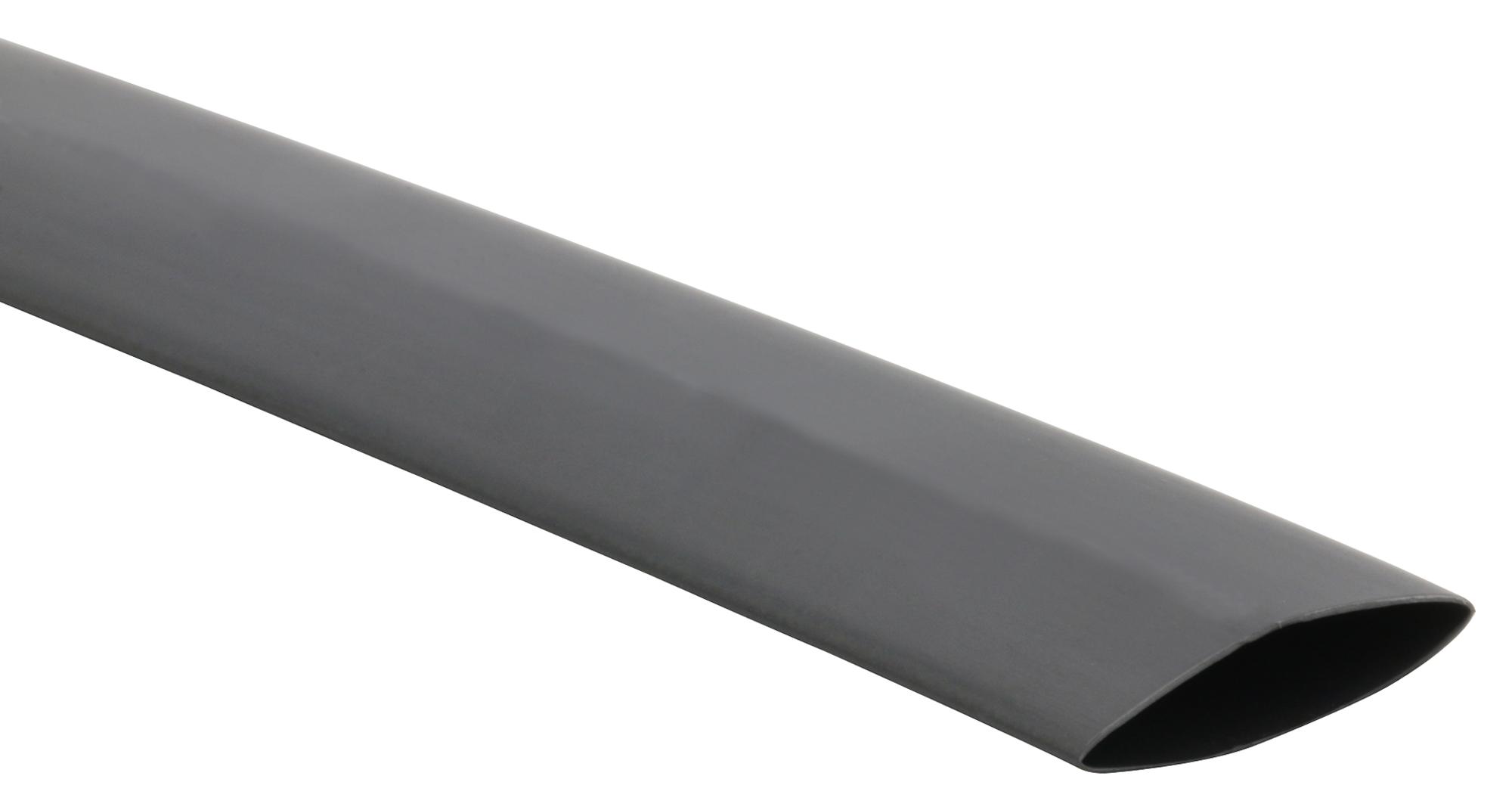

MULTICOMP-PRO PP001948 Heat Shrink Tubing
This heat shrink tubing provides reliable electrical insulation and protection for inline components, disconnect terminals, and splices. Made from environmentally friendly, flame-retardant polyolefin, it features a 2:1 shrink ratio, high tensile strength, and excellent resilience. Suitable for military and commercial applications, it resists common fluids and solvents, and meets UL 224 and MIL specifications, including UL 224 VW-1 flammability. It is available in natural color, with various sizes and lengths for versatile electrical and wiring harness applications ensuring durability and safety in challenging environments.
MULTICOMP-PRO PP001948 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Min. Shrink Temperature: 70°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Colours: Black and Natural
- Approved Standards: UL 224 125°C 600V VW-1, meets AMS DTL-23053/5 class 1&3
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Volume Resistivity: 21104 Q-cm
- Dielectric Strength: 215 kV/mm
- Temperature Resistance: -55°C to +135°C
- Dimensions: Varies with size; diameter from 1.5mm to 18mm, length options include 5m, 10m, 25m, 50m
- Resistance: Resists common fluids and solvents
- Flexibility: Highly flexible and resilient
- Flammability: Meets UL 224 VW-1 standard
- Approval: UL Listed, MIL Spec compliant
Buy the Enekonnt Reliable Heat Shrink for Industrial Applications
Upgrade your electrical projects with our high-quality heat shrink tubing designed for durability and safety. It offers excellent insulation, flexibility, and resistance to common fluids and solvents, making it ideal for industrial, military, and commercial wiring applications. Easily shrinkable with high tensile strength, it ensures secure connections and environmental protection. Available in various sizes and lengths, this tubing meets UL and military standards for flame retardancy, providing peace of mind and reliable performance in demanding environments. Purchase online today for fast, dependable delivery.
Order your Enekonnt Series PP001948 heat shrink tubing today and ensure your wiring systems are protected with trusted military-grade insulation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001948?
You can click on the BUY or RFQ button to purchase PP001948 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001948?
You can download the PP001948 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001948?
MULTICOMP-PRO
