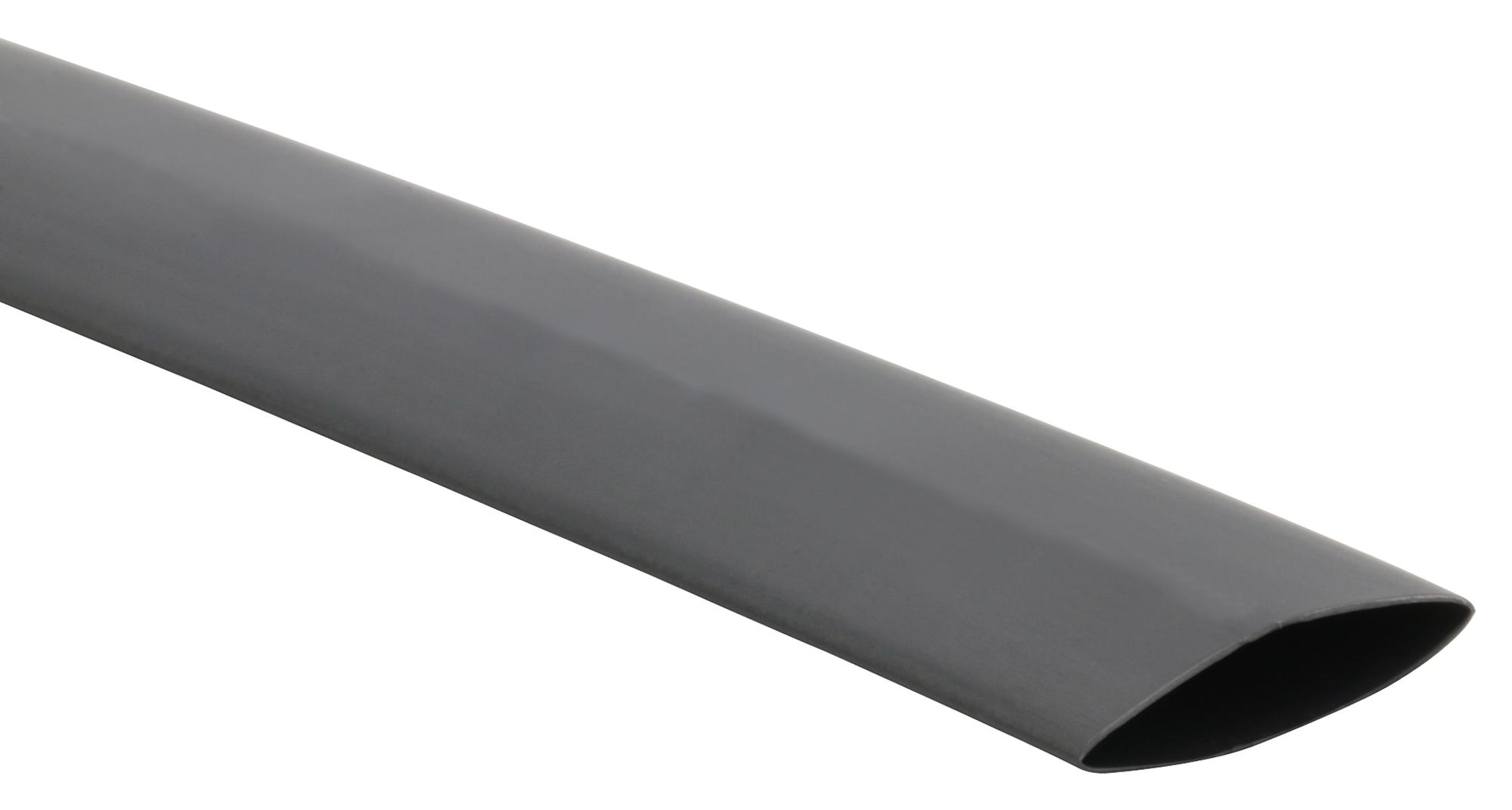

MULTICOMP PRO PP001956 Heat Shrink Tubing
This heat shrink tubing offers a reliable electrical insulation solution suitable for diverse industrial and military applications. Made from environmentally friendly, flexible polyolefin, it is highly flame retardant with a 3:1 shrink ratio. It protects inline components, disconnect terminals, and splices while bundling wires for flexible harnesses. Rated for temperatures from 1°C to +135°C, it resists common fluids and solvents and meets UL224 VW-1 and AMS DTL-23053/5 standards, ensuring durability and safety in demanding environments. Suitable for indoor and outdoor use, it features versatile diameters and color options for wiring identification.
MULTICOMP PRO PP001956 Heat Shrink Tubing Specifications:
- Operating temperature: 1°C to +135°C
- Minimum full recovery temperature: 212°C
- Minimum shrink temperature: 270°C
- Shrink ratio: 3:1
- Colors: Black and Natural
- Tensile strength: 210.4 MPa
- Ultimate elongation: 2200%
- Dielectric strength: 215 kV/mm
- Volume resistivity: 21 x 10^10 Ω·cm
- Flammability: UL 224 VW-1 pass
- Resistant to common fluids and solvents
- Meets AMS DTL-23053/5 class 1 & 3 standards
- UL approval: 125°C, 600V
- Resistance to heat aging and compression: No cracking after 168 hours at 158°C
- Longitudinal shrinkage: +5%
- Copper stability: Pass
- Copper corrosion: No corrosion
Buy the DrO-POWER PP001956 – Reliable Heat Shrink for Industrial Applications
Enhance your electrical insulation and wiring harnessing with our high-performance heat shrink tubing. Designed for demanding industrial and military environments, this flexible polyolefin product provides excellent resilience, flame retardancy, and environmental resistance. Easy to install with a 3:1 shrink ratio, it meets strict UL and military standards for safety and durability. Perfect for bundling wires, protecting connectors, and electrical splices, it offers reliable performance across a wide temperature range. Purchase online today for fast delivery and consistent quality.
Order your DrO-POWER PP001956 heat shrink tubing today and ensure your industrial wiring projects are protected with top-quality insulation and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001956?
You can click on the BUY or RFQ button to purchase PP001956 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001956?
You can download the PP001956 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001956?
MULTICOMP PRO
