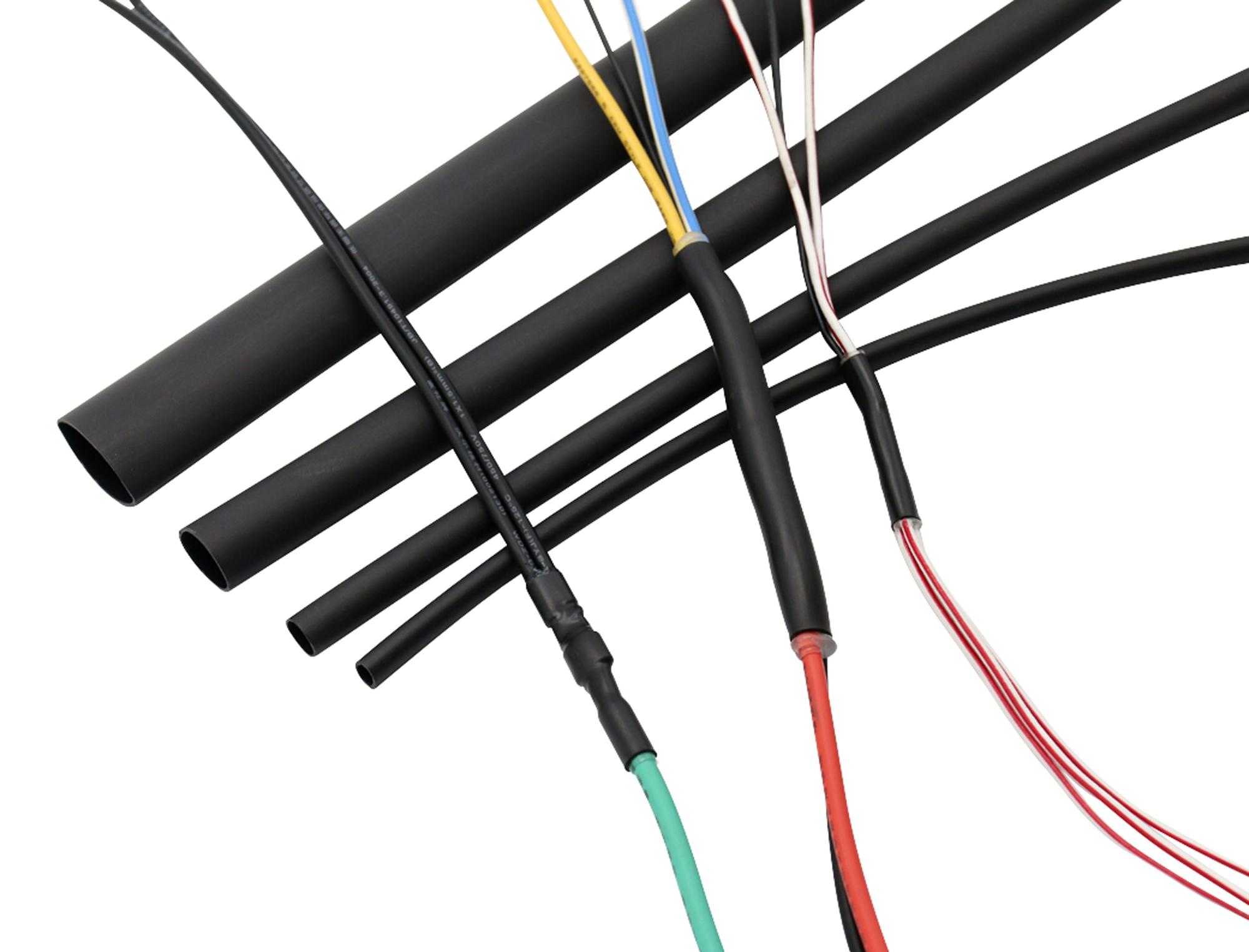

MULTICOMP-PRO PP001984 Dual Wall Heat Shrink Tubing
Dual wall heat shrink tubing offers flame-retardant, mechanically tough protection for wires and components. Its high shrink ratio allows coverage of various splice sizes, with thick adhesive liners providing an effective barrier against moisture and fluids. Suitable for electrical insulation, strain relief, and abrasion protection, it is UL224 and CSA certified, with excellent dielectric strength, flexibility, and environmental resistance. This semi-rigid polyolefin tubing ensures long-term durability in harsh conditions, making it ideal for automotive, electrical, and industrial applications requiring reliable insulation and fluid protection.
MULTICOMP-PRO PP001984 Dual Wall Heat Shrink Tubing Specifications:
- Operating temperature: -45°C to +125°C
- Minimum Full Recovery Temperature: 125°C
- Minimum shrink temperature: 270°C
- Shrink Ratio: 4:1
- Colour: Black
- Tensile Strength: 214 MPa
- Ultimate Elongation: 2200%
- Dielectric Strength: 20 kV/mm
- Volume Resistivity: 1x10^9 Ω·cm
- Flammability: VW-1
- Certifications: UL224, CSA
- Wall Thickness (after recovery): 1.2 mm (at 4 mm diameter), 1.7 mm (at 8 mm diameter), 2.1 mm (at 12 mm diameter), 2.6 mm (at 18 mm diameter)
- Adhesive Softening Point: 95°C
- Water Absorption Ratio: <0.2%
- Peel Strength: 120 N/25 mm (PE), 80 N/25 mm (Aluminum)
Buy the Buy Power Dual Wall Heat Shrink Tubing Part Number PP001984 Online
Purchase Power PP001984 dual wall heat shrink tubing online today to ensure reliable insulation, moisture resistance, and mechanical protection for your electrical and industrial applications. This flame-retardant, high shrink ratio tubing features adhesive lining for superior fluid barriers, excellent dielectric properties, and exceptional durability. Perfect for wire splicing, cable management, and environmental sealing, it offers a wide range of diameters and easy installation. Order now for fast delivery and secure your project with proven quality and performance.
Buy Power PP001984 now and experience unmatched reliability and high-performance wire insulation with excellent moisture barrier and abrasion protection.
