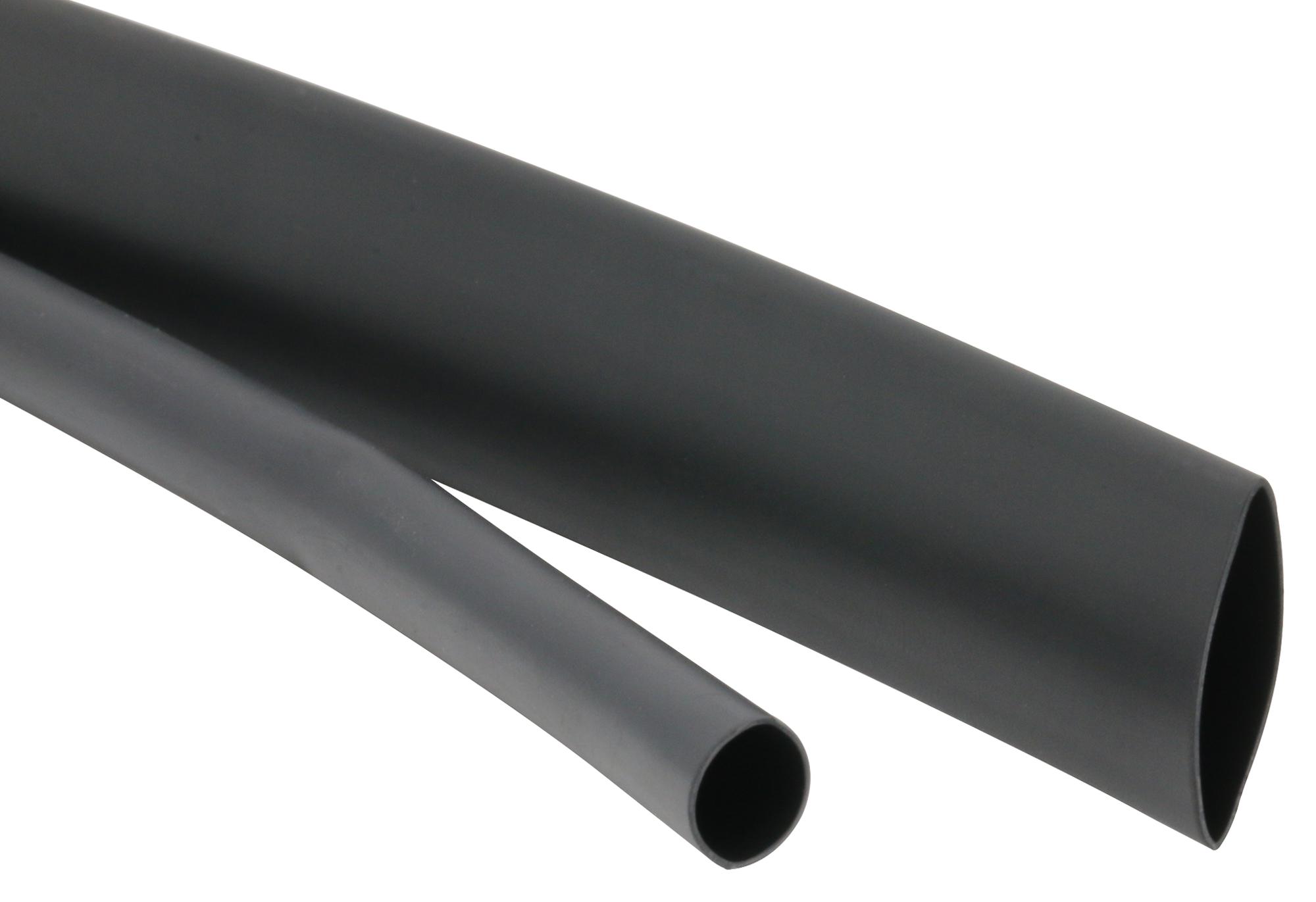

MULTICOMP-PRO PP001999 heat shrink tubing
Thin wall heat shrinkable tubing designed for high temperature fluid resistance, flexibility, and chemical durability. Ideal for military ground vehicle cable jacketing, it withstands diesel fuels, hydraulic fluids, and lubricating oils. Operating efficiently between -50°C and +150°C, it features a shrink ratio of 2.24, 600V voltage rating, and black color. Its properties include high tensile strength, elongation, and excellent dielectric strength, making it suitable for demanding industrial and military applications. The tubing ensures long-term heat resistance, flexibility, and compliance with RoHS standards.
MULTICOMP-PRO PP001999 heat shrink tubing Specifications:
- Operating Range: -50°C to +150°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2.24
- Voltage Rating: 600V
- Color: Black
- Tensile Strength: 212 MPa
- Ultimate Elongation: 2400%
- Tensile Strength after heat aging: >8MPa
- Elongation after heat aging: 2220%
- Tensile Strength after fluid aging: 28MPa
- Elongation after fluid aging: 2300%
- Longitudinal Shrinkage: 410%
- Flammability: VW-1 Pass
- Dielectric Strength: 213kV/mm
- Heat Shock Resistance: No cracking at 250°C for 4 hrs
- Inner Diameter (Min): 3/16 inch (48 mm), 1/4 inch (6.4 mm), 3/8 inch (9.5 mm)
- Wall Thickness: 0.84 mm to 1.02 mm
- Product Length: 50 meters per each part number
Buy the DrO-POWER Series Heat Shrinkable Tubing: PP001999
Order DrO-POWER heat shrink tubing today online and benefit from enhanced durability, high-temperature resistance, and chemical durability. Perfect for industrial, military, and automotive applications, this flexible tubing withstands diesel fuels, hydraulic fluids, and oils while maintaining excellent dielectric properties. With a shrink ratio of 2.24, voltage rating of 600V, and a temperature range from -50°C to +150°C, it ensures reliable insulation and long-term performance. Secure your supply now for dependable, high-quality cable protection in tough environments.
Buy DrO-POWER PP001999 heat shrink tubing now and enjoy excellent chemical resistance and reliable insulation for demanding industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001999?
You can click on the BUY or RFQ button to purchase PP001999 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001999?
You can download the PP001999 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001999?
MULTICOMP-PRO
