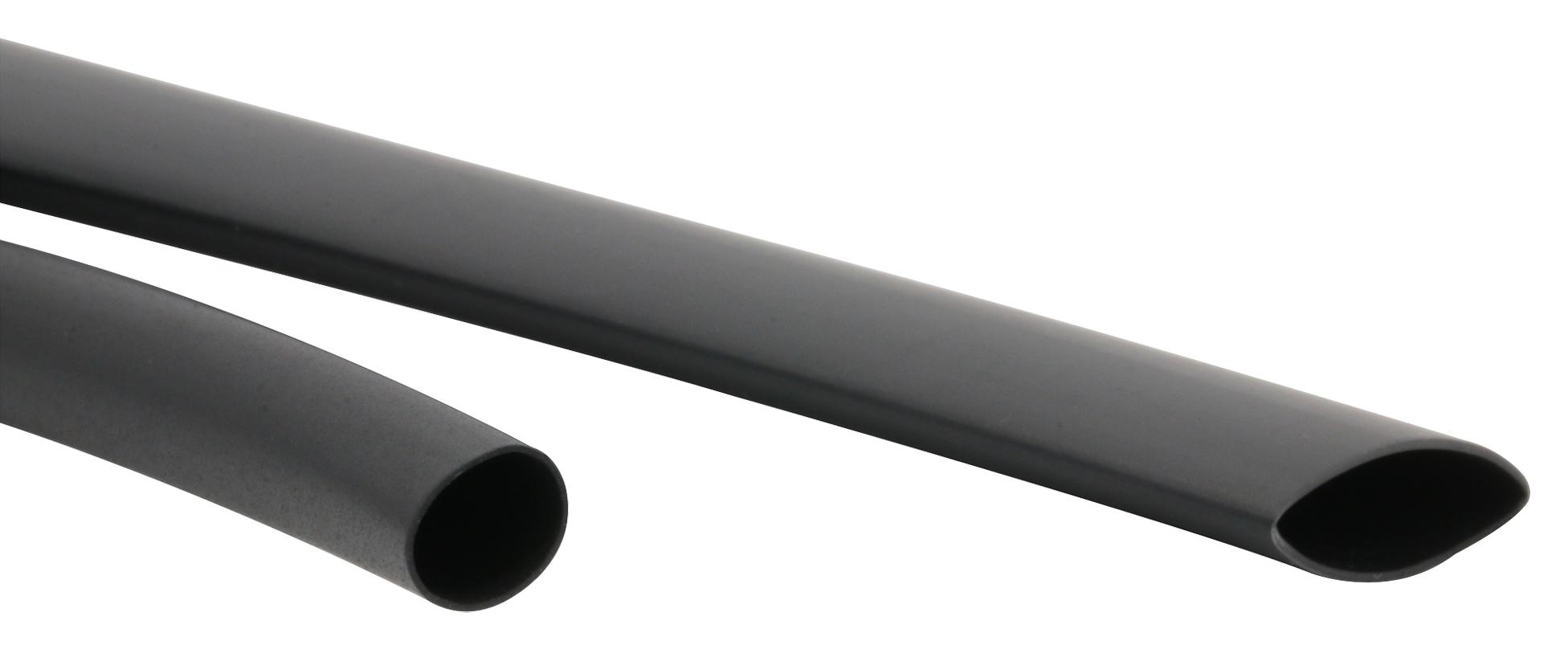

MULTICOMP-PRO PP002003 Heat Shrink Tubing
PrO-POWER heat shrink tubing is made from modified fluoropolymer, offering high impact, abrasion, and cut-through resistance. It maintains flexibility at extreme temperatures, from -55°C to +200°C, without cracking. Suitable for corrosive environments involving fuels, lubricants, acids, and solvents, it features a shrink ratio of 2:4, high dielectric strength, and UL VW-1 flame retardancy. Available in various sizes, it is ideal for electrical insulation, protective coating, and insulation of wires and components in industrial and demanding applications, ensuring durability and stability.
MULTICOMP-PRO PP002003 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +200°C
- Min. Full Recovery Temperature: 175°C
- Shrink Ratio: 2:4
- Color: Black
- Tensile Strength: 210 MPa
- Ultimate Elongation: 2300%
- Elongation after heat aging: 2250%
- Flammability: UL 224 VW-1 Pass
- Heat Shock Resistance: 330°C, 4hrs no cracking
- Dielectric Strength: 29 kV/mm
- Volume Resistivity: 2.11 x 10^4 Ω·cm
- Internal Diameter (after recovery): 3/16 in (48mm), 1/4 in (64mm), 1/2 in (12.7mm), 1 in (25.4mm)
- Wall Thickness: approximately 0.89 mm for smaller sizes, 1.25 mm for 1-inch size
- Product Lengths Available: 1.2m, 5m
Buy the Farnell PP002003 U+2013 Reliable Heat Shrink Tubing for Industrial Applications
Experience durable and temperature-resistant heat shrink tubing designed for challenging industrial environments. Manufactured from modified fluoropolymer, it offers excellent flexibility, chemical resistance, and high dielectric strength. Perfect for protecting electrical wiring and components against corrosion, impact, and abrasion at operating temperatures from -55°C to +200°C. Available in various sizes with a 2:4 shrink ratio, this tubing is ideal for electrical insulation, cable management, and component protection, ensuring long-lasting performance in demanding applications. Buy online now to secure reliable, high-quality insulation solutions.
Get Farnell PP002003 today—built for flexibility and high-temperature resistance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002003?
You can click on the BUY or RFQ button to purchase PP002003 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002003?
You can download the PP002003 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002003?
MULTICOMP-PRO
