MULTICOMP-PRO PP002117 Screened Data Cable

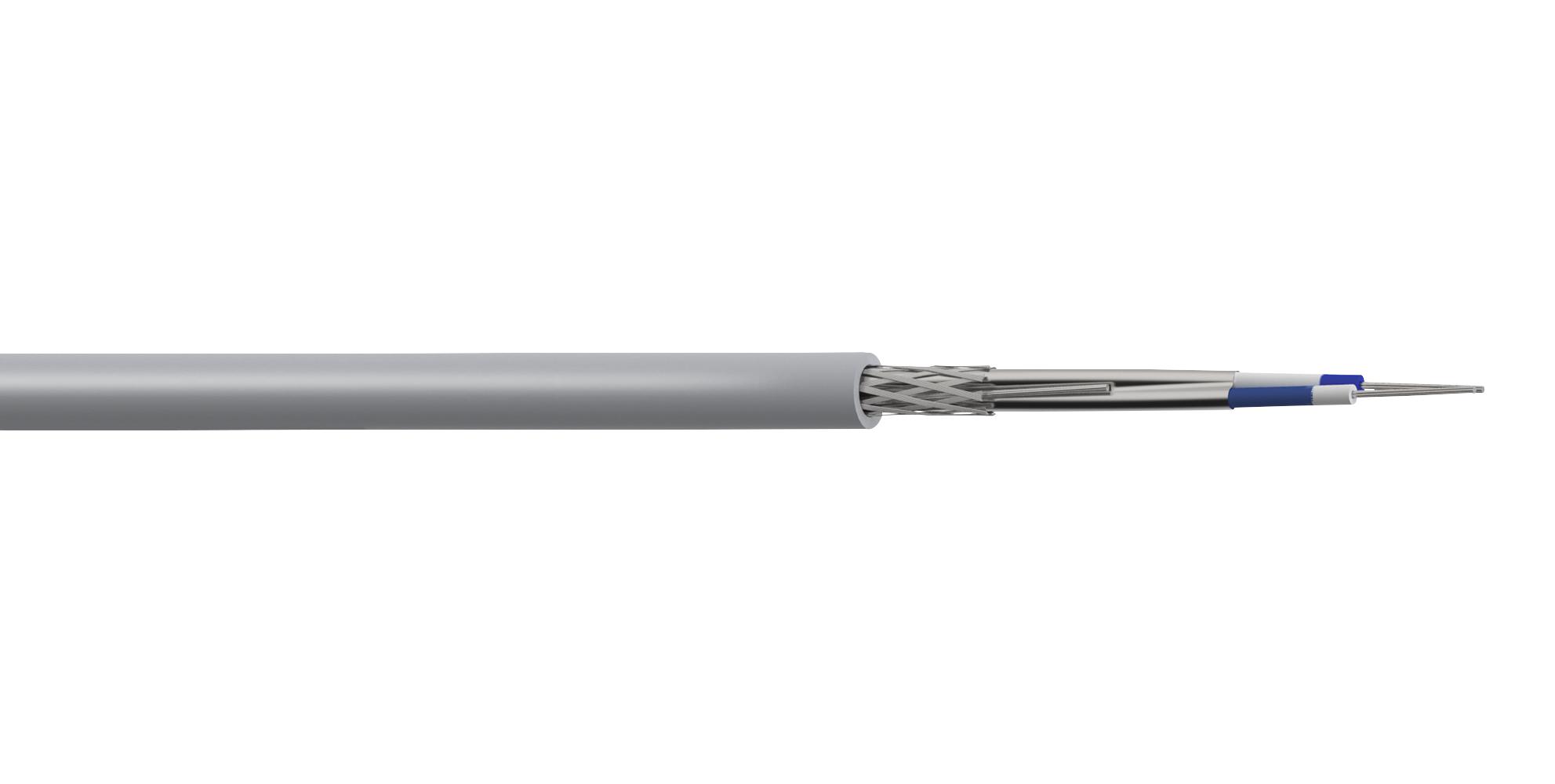

The screened 1 Pair LSF cable, an alternative to Belden 9841, features a 24 AWG stranded tinned copper conductor with high screening for interference-free, high-speed data transmission. It is suitable for RS485 applications, rated at 300V and operating between -20°C and +80°C. The cable construction includes PE insulation, aluminum polyester foil shielding, and a tinned copper braid, all housed within a grey low smoke and fume sheath. Its nominal diameter is 5.9 mm, with a weight of 54 kg/km, ensuring durability and performance in industrial wiring setups.
MULTICOMP-PRO PP002117 Screened Data Cable Specifications:
- Voltage Rating: 300V
- Temperature Rating: -20°C to +80°C
- Core Identification: Black/White, White/Blue
- Bending Radius: 4 x overall diameter
- Conductor: Class 2 stranded tinned copper
- Insulation: PE (Polyethylene)
- Screen: Aluminum polyester foil
- Drain Wire: Tinned Copper
- Braid: Tinned Copper Wire Braid
- Sheath: Low Smoke and Fume (LSF)
- Nominal Diameter: 5.9 mm
- Weight: 54 kg/km
- Capacitance at 1kHz: 41.9 pF/ft
- Resistance of Conductor at 20°C: 94.1 Q/km
Buy the Multicomp PP002117 U+2013 Reliable Screening Cable for Industrial Applications
Purchase the Multicomp screened data cable online and experience reliable, interference-free communication in your industrial wiring systems. This 1 pair LSF cable with high screening ensures high-speed data transfer within RS485 networks, rated at 300V and operating at temperatures from -20°C to +80°C. Constructed with durable materials, including PE insulation, aluminum polyester foil, and a tinned copper braid, it provides excellent shielding and durability. Ideal for industrial automation, control systems, and data communication networks, order now for fast delivery and quality assurance.
Order your Multicomp SeriesPP002117 screened cable today and ensure interference-free, high-speed data transfer for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002117?
You can click on the BUY or RFQ button to purchase PP002117 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002117?
You can download the PP002117 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002117?
MULTICOMP-PRO
